This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190130029
Active
InsulKrimp™ Fully Insulated Piggyback Quick Disconnect, Tab 6.35mm (.250") by
0.81mm (.032"), 14-16 AWG, Blue Insulator, Tape
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19013
Yes
InsulKrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Resin
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed - Brazed
Natural
94V-2
Female
No
Nylon (PA)
No
Nylon
Straight
Adhesive Tape on Reel
Yes
0.81mm (.032")
6.35mm (.250")
105°C
4.04mm (.159") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19013Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640016300
Crimp Head for the 0640056300
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
600V AC
Material Info
Old Part Number
BB-2318
Reference - Drawing Numbers
Product Specification

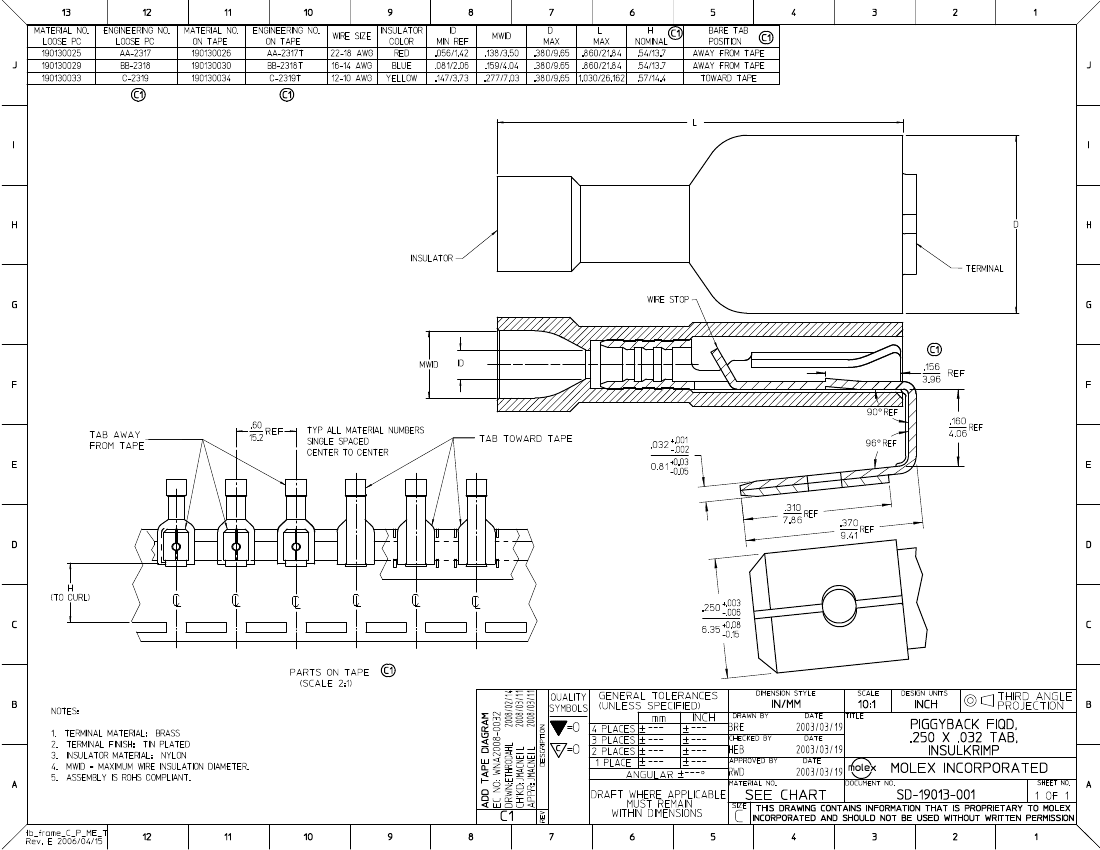

Sales Drawing
PS-19902-008
SD-19013-001
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
