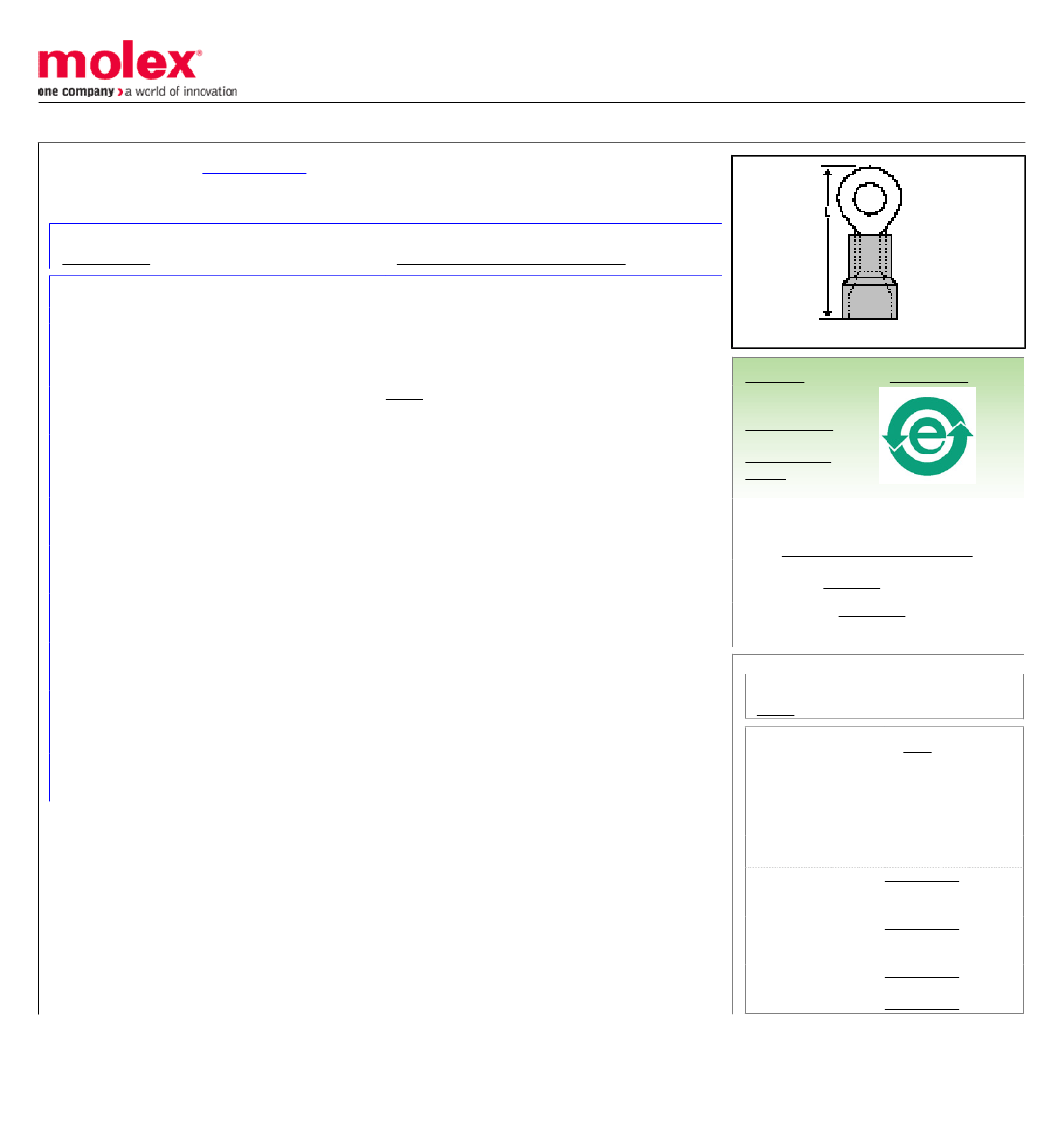

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0190670085
Active
NylaKrimp™ Funnel Entry Ring Tongue Terminal for 4 AWG Wire, Stud #12
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19067
Yes
N/A
NylaKrimp™
Ring
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Closed - Brazed
94V-0
Nylon (PA)
Tin
Bag
100
2.5
100
2.5
1/2" (M12)
Crimp or Compression
12.95mm (.510") max.
4
Search Parts in this Series
19067Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Manual Putt Pump 0192860117
Hydraulic System,
Die set required
Die Set (large) for
0192890007
the HHLS Hydralic
Crimper
Putt Pump Dieless 0192860065
Head System
Hand Crimp Tool
0640013900
Material Info
Old Part Number
F-969-12

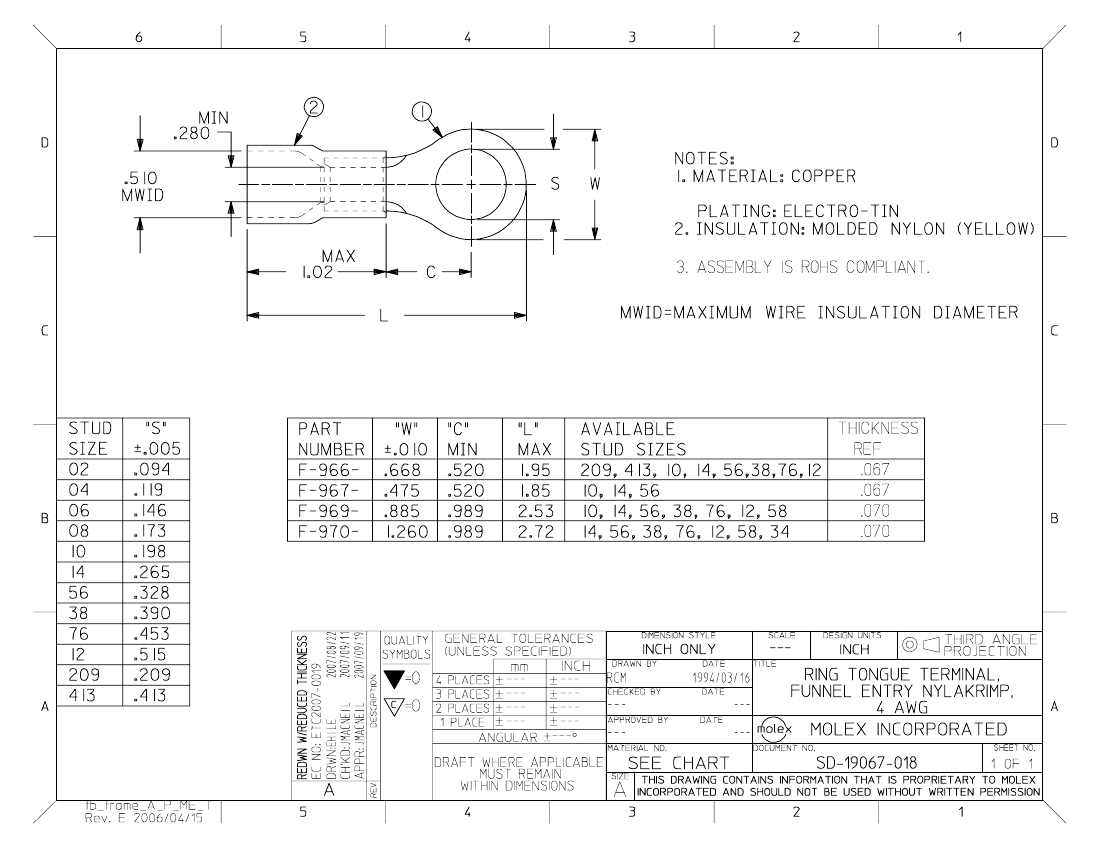

Reference - Drawing Numbers
Sales Drawing
SD-19067-018
This document was generated on 06/08/2010
