BM03B-ASRS-TF(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> BM03B-ASRS-TF(LF)(SN)

BM03B-ASRS-TF(LF)(SN): DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size101KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

BM03B-ASRS-TF(LF)(SN) Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

BM03B-ASRS-TF(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ASR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

ASR

CONNECTOR

Emboss Tape

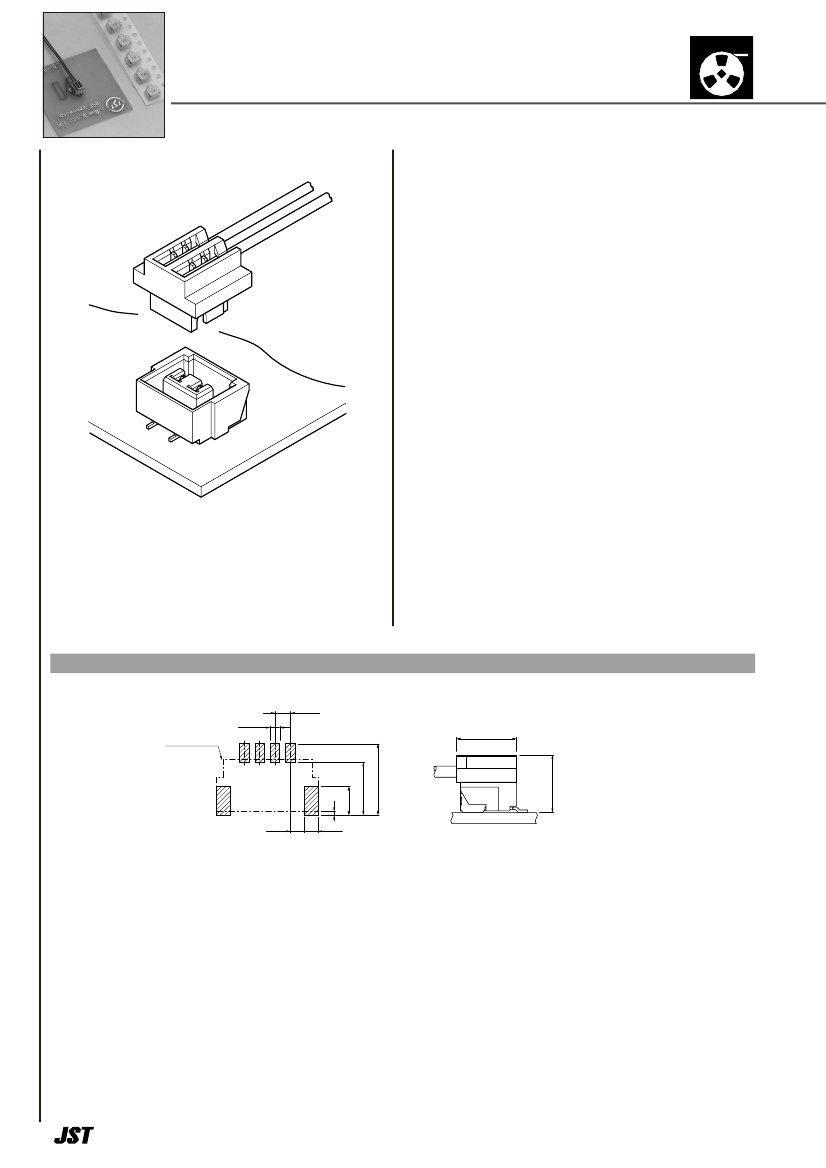

1.0mm pitch/Disconnectable Insulation displacement connectors

Specifications –––––––––––––––––––

• Current rating: 0.7A DC

• Voltage rating: 50V DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/30m

Ω

max.

After environmental testing/40m

Ω

max.

• Insulation resistance:

100M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: Conductor size/AWG #30

Conductor/7 strands,

tin-coated annealed copper

Insulation O.D./0.54 to 0.58mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

• Compact

• Twin U-slot insulation displacement section

• 3-point grip construction

• Header designed for vacuum pick and place

robotics

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

1.0

0.6

Header outline

±0.05

3.6

±0.1

4.6

±0.1

0.9

±0.1

0.8

±0.1

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

0.2

1.8

±0.1

3.4

3.5

BM03B-ASRS-TF(LF)(SN) Related Products

	BM03B-ASRS-TF(LF)(SN)	BM02B-ASRS-TF	BM02B-ASRS-TF(LF)(SN)	BM04B-ASRS-TF(LF)(SN)	BM04B-ASRS-TF	BM03B-ASRS-TF
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	conform to	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	ASR	ASR	ASR	ASR	ASR	ASR
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	3	2	2	4	4	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	-
