BT137-700G datasheet, PDF - EEWORLD Datasheet

BT137-700G: DescriptionTRIAC,700V V(DRM),8A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size574KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

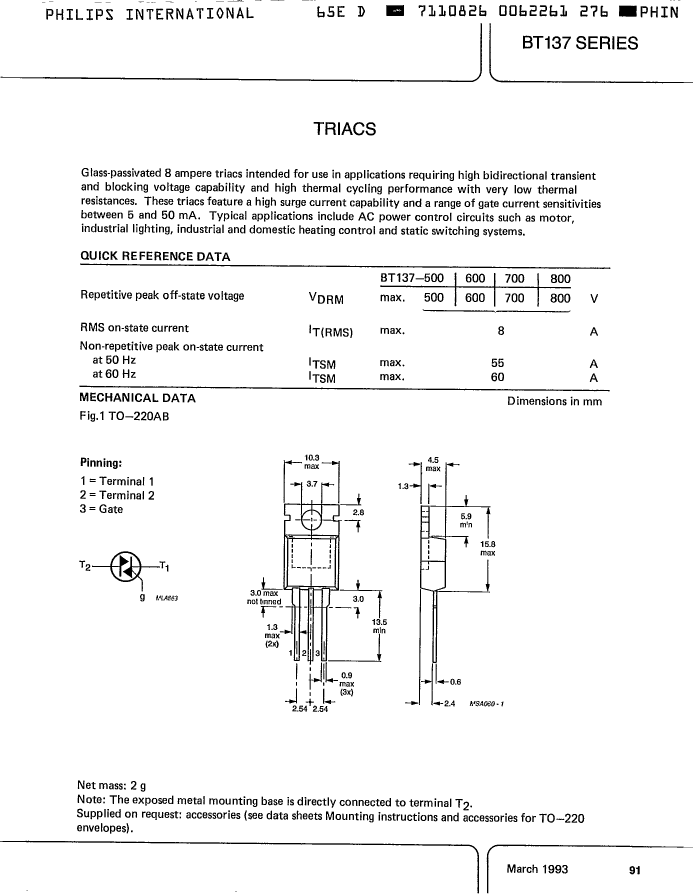

BT137-700G Overview

TRIAC,700V V(DRM),8A I(T)RMS,TO-220

Parameter Name	Attribute value
Maker	NXP
package instruction	,
Reach Compliance Code	compliant

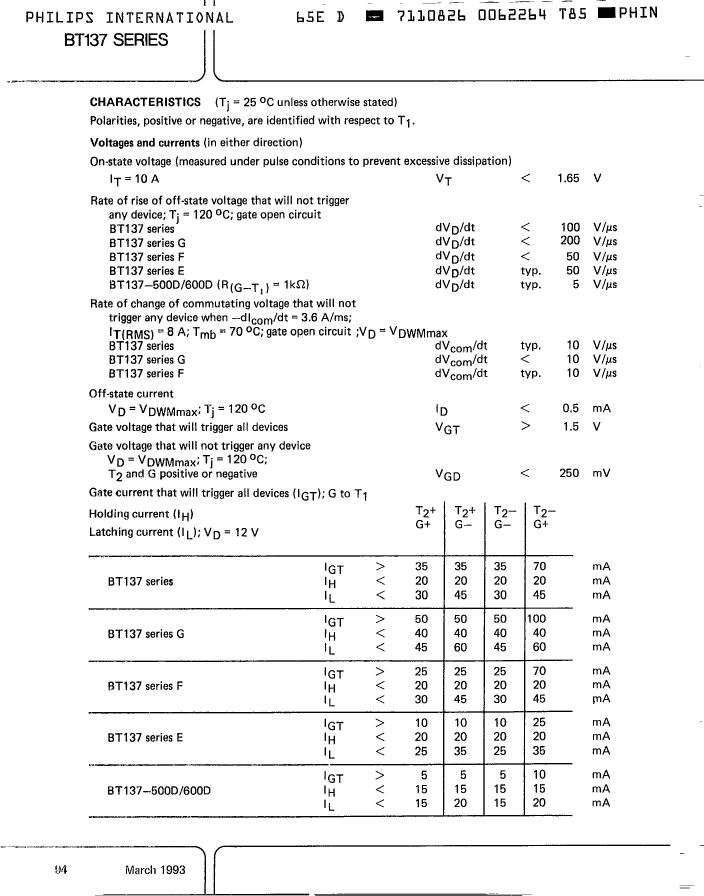

Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	40 mA
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.6 V

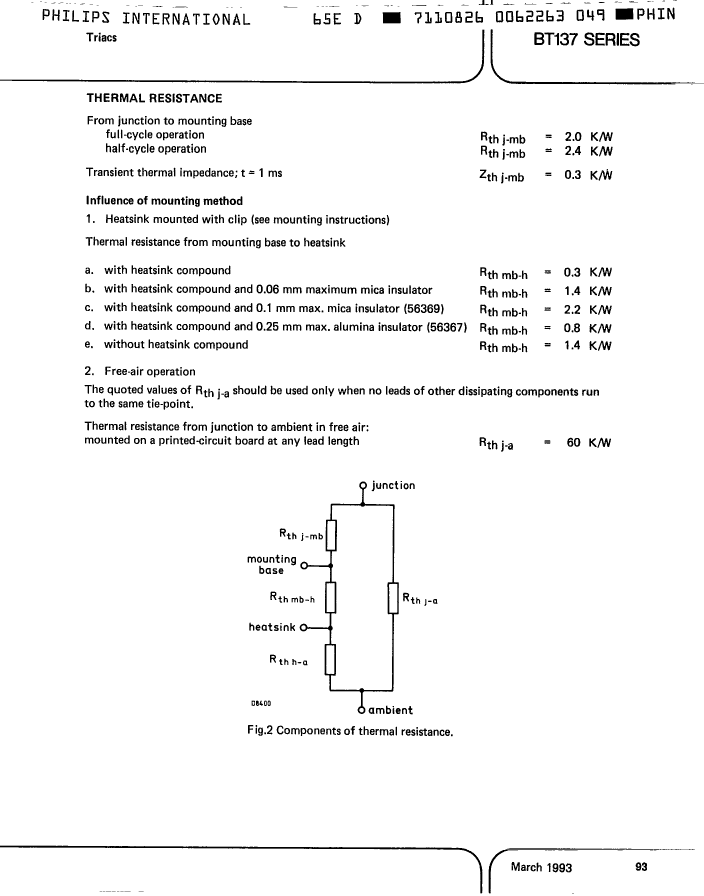

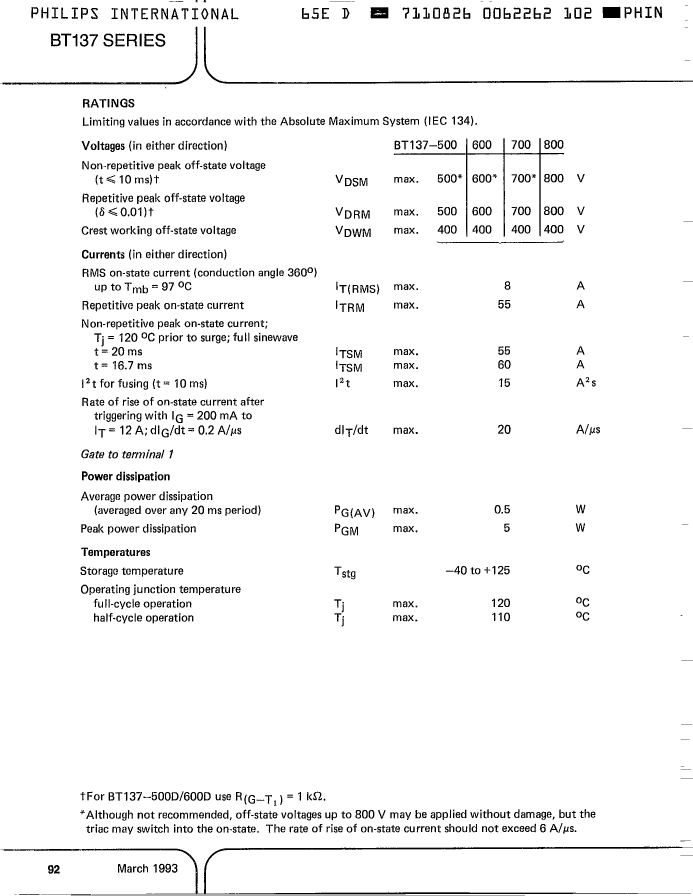

Maximum operating temperature	120 °C
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	700 V

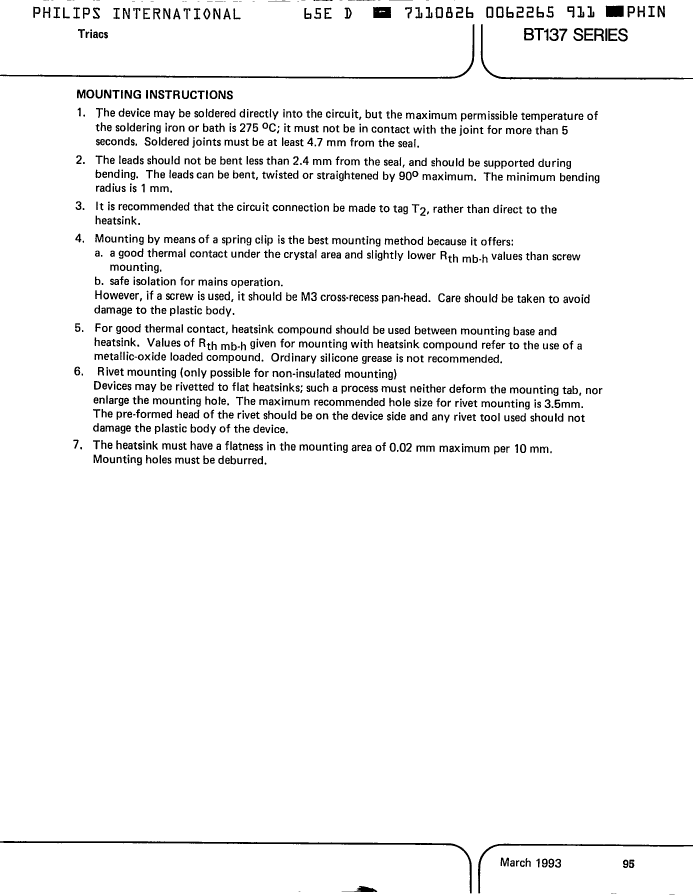

surface mount	NO
Trigger device type	TRIAC

	BT137-700G	BT137-700E	BT137-700
Description	TRIAC,700V V(DRM),8A I(T)RMS,TO-220	TRIAC,700V V(DRM),8A I(T)RMS,TO-220	TRIAC,700V V(DRM),8A I(T)RMS,TO-220
Maker	NXP	NXP	NXP
Reach Compliance Code	compliant	compliant	compliant
Critical rise rate of minimum off-state voltage	200 V/us	50 V/us	100 V/us
Maximum DC gate trigger current	50 mA	10 mA	35 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	40 mA	20 mA	20 mA
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.6 V	1.6 V	1.6 V
Maximum operating temperature	120 °C	120 °C	120 °C
Maximum rms on-state current	8 A	8 A	8 A
Off-state repetitive peak voltage	700 V	700 V	700 V
surface mount	NO	NO	NO
Trigger device type	TRIAC	TRIAC	TRIAC
