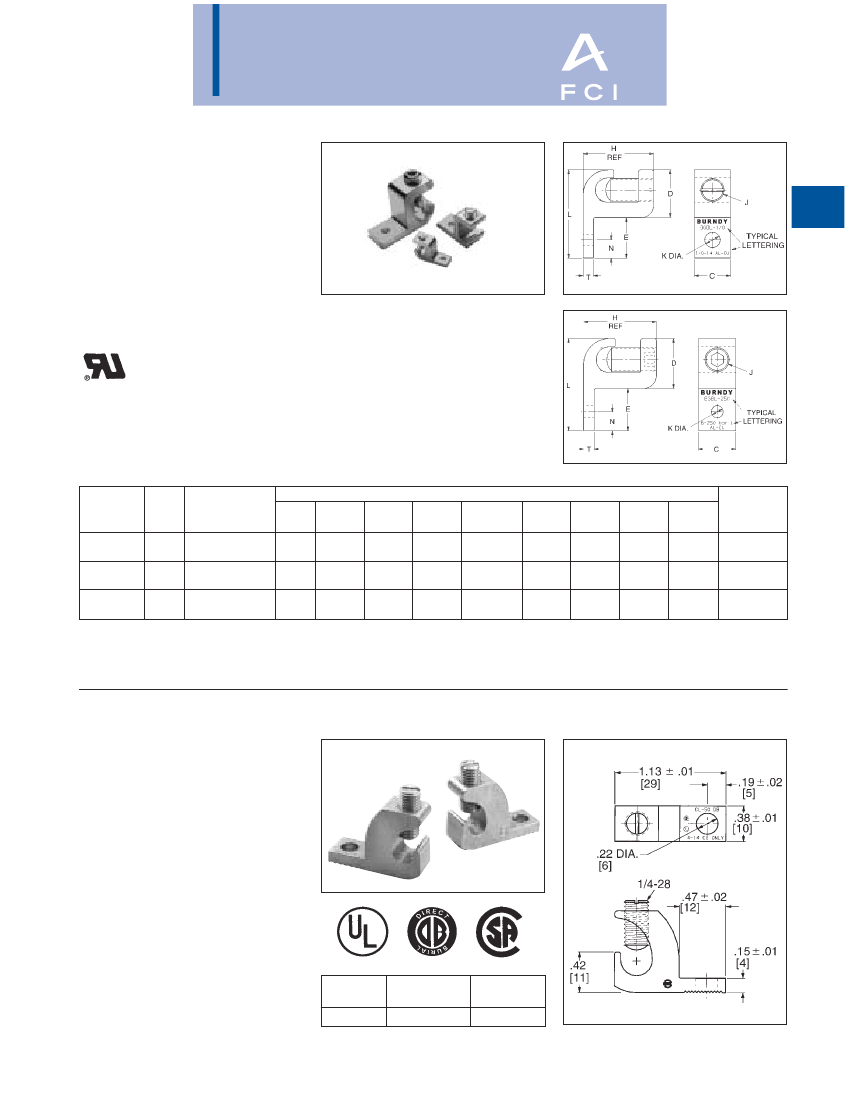

BURNDY
Mechanical
TYPE BGBL
LAY-IN QIKLUG™
*UL LISTED 90° C, 600 V
The Lay-In QIKLUG™, Type BGBL is manu-
factured from high strength 6061-T6
aluminum, and is ideally suited for grounding
and bonding applications accommodating
both copper and aluminum conductor sizes
#14 AWG to 250 kcmil.
A-15
Fig. 1
Features and Benefits
• * UL 486B listed, AL9CU rated.
◊
For copper and aluminum conductor
combinations up to 90° C, 600 Volt
applications.
• UL Recognized for grounding and bonding.
◊
Ensures reliability.
• Electro-tin plated.
◊
Provides low contact resistance.
• Lay-in feature.
◊
Eases installation.
Fig. 2
DIMENSIONS
CATALOG
NUMBER
*BGBL-4
BGBL-1/0
BGBL-250
FIG
NO.
1
1
2
CONDUCTOR
RANGE
4 - 14 AWG
1/0 - 14 AWG
250 kcmil - 6
C
.39
[10]
.63
[16]
.88
[22]
D
.62
[16]
.80
[20]
1.18
[30]
E
.48
[12]
.83
[21]
1.00
[30]
H
REF
.79
[20]
1.16
[29]
1.72
[44]
J
1/4 - 28
3/8 - 24
7/16 - 18
K
DIA.
.22
[6]
.28
[7]
.28
[7]
L
1.10
[28]
1.63
[41]
2.18
[55]
N
.20
[5]
.44
[11]
.45
[11]
T
.13
[3]
.19
[5]
.25
[6]
HEX
SIZE
SLOT
SLOT
7/32
NOTE:
PEN-A PENETROX
®
inhibitor is recommended for all
aluminum terminations.
TYPE CL50-1
COPPER LAY-IN QIKLUG™
FOR COPPER
The Lay-In QIKLUG™ is manufactured from
high strength pure electrolytic copper to
ensure maximum strength and conductivity.
UL467 Listed for direct burial in earth or con-
crete. The open-faced design allows for fast
lay-in of the conductor without the need for
cutting or breaking.
CATALOG
NUMBER
CL50-1
WIRE RANGE
COPPER
#14 - #4 CU
STUD HOLE
#10
