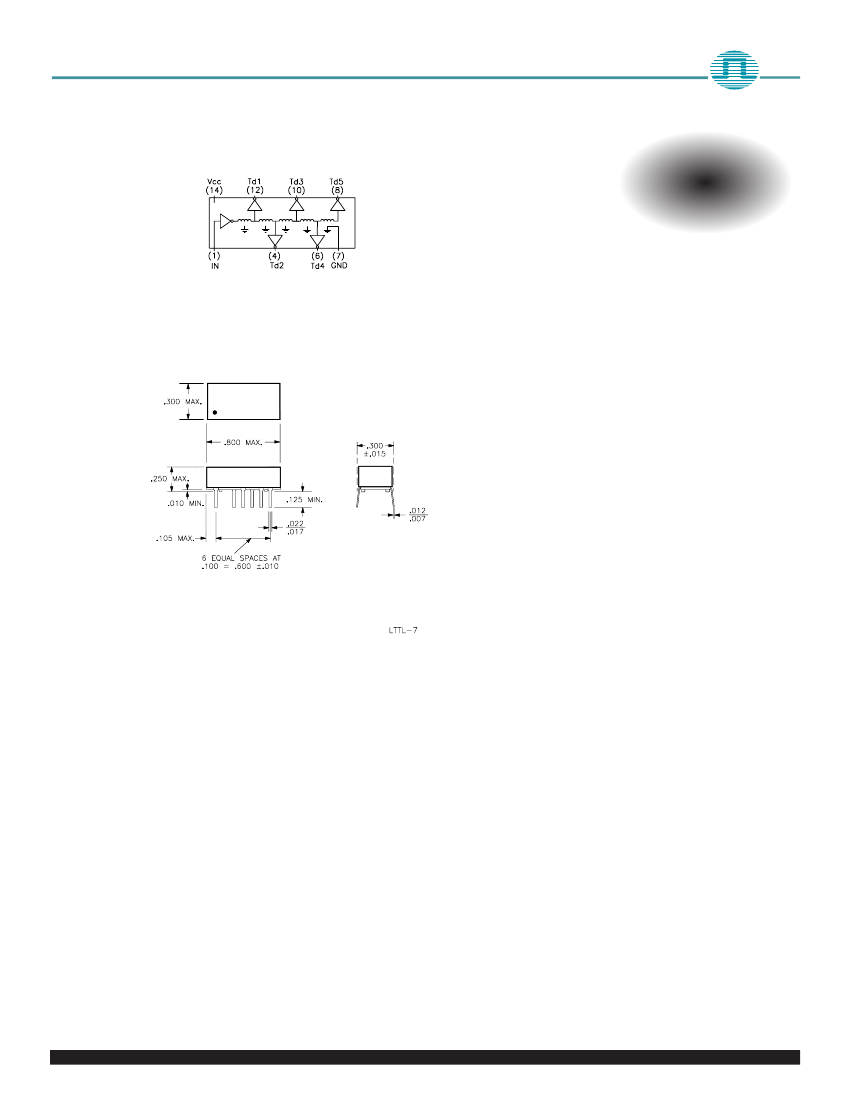

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8
| Parameter Name | Attribute value |
| Maker | Pulse Electronics |
| Parts packaging code | DIP |
| package instruction | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 |
| Contacts | 14/8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED |
| series | TTL |
| JESD-30 code | R-PDIP-T8 |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 5 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 6.35 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Total delay nominal (td) | 200 ns |
| width | 7.62 mm |
| LTTLDL200 | LTTLDL125 | LTTLDL250 | LTTLDL150 | LTTLDL100 | LTTLDL025 | LTTLDL050 | LTTLDL500 | LTTLDL075 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | DIP, | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | DIP, | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 | 0.800 X 0.300 INCH, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8 |
| Contacts | 14/8 | 14/8 | 14/8 | 14/8 | 14/8 | 14/8 | 14/8 | 14/8 | 14/8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED | TESTED WITH NO LOAD CONDITIONS; MAX RISE TIME CAPTURED |
| series | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| JESD-30 code | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 | R-PDIP-T8 |
| Logic integrated circuit type | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm | 6.35 mm |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Total delay nominal (td) | 200 ns | 125 ns | 250 ns | 150 ns | 100 ns | 25 ns | 50 ns | 500 ns | 75 ns |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Maker | Pulse Electronics | - | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
