K1526BLCMT-FREQ1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> K1526BLCMT-FREQ1

K1526BLCMT-FREQ1: DescriptionTTL Output Clock Oscillator, 2MHz Min, 55MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN; CategoryPassive components oscillator; File Size285KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

K1526BLCMT-FREQ1 Overview

TTL Output Clock Oscillator, 2MHz Min, 55MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN

K1526BLCMT-FREQ1 Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TAPE AND REEL; TUBE
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	K1526BLC
Installation features	SURFACE MOUNT
Maximum operating frequency	55 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	TTL
physical size	11.43mm x 8.84mm x 2.41mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

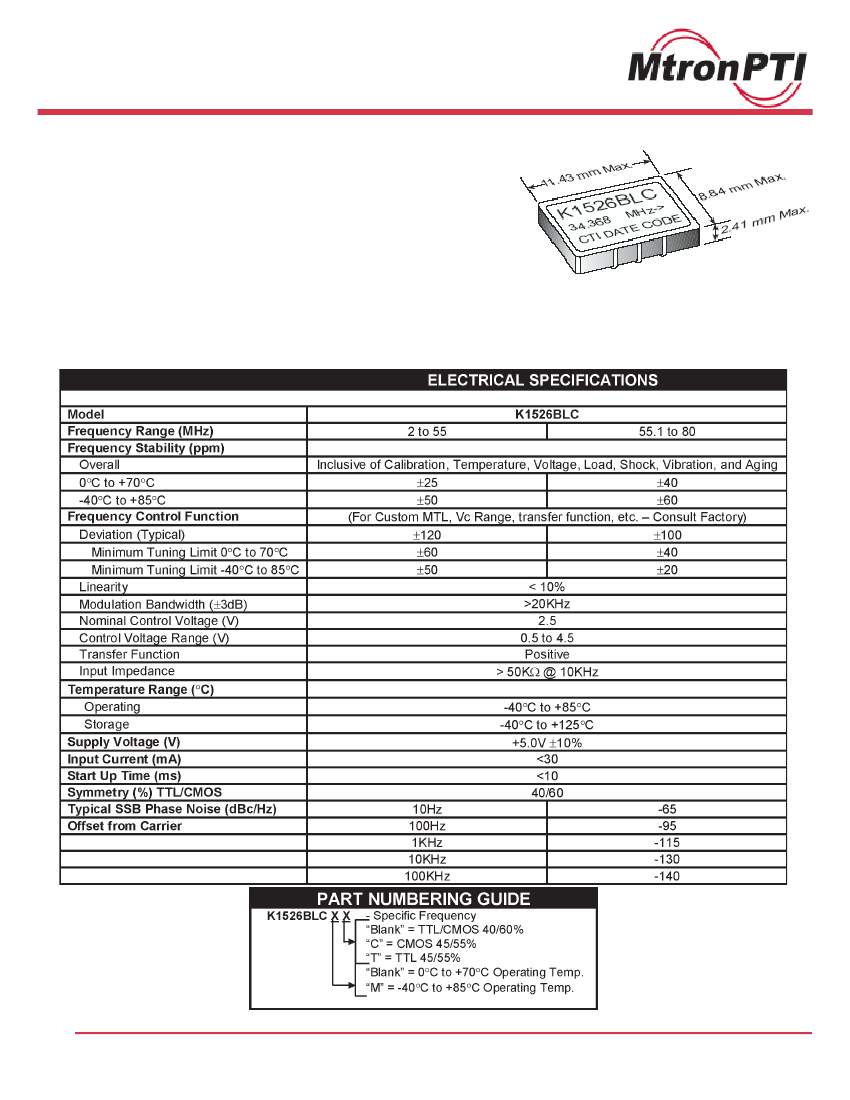

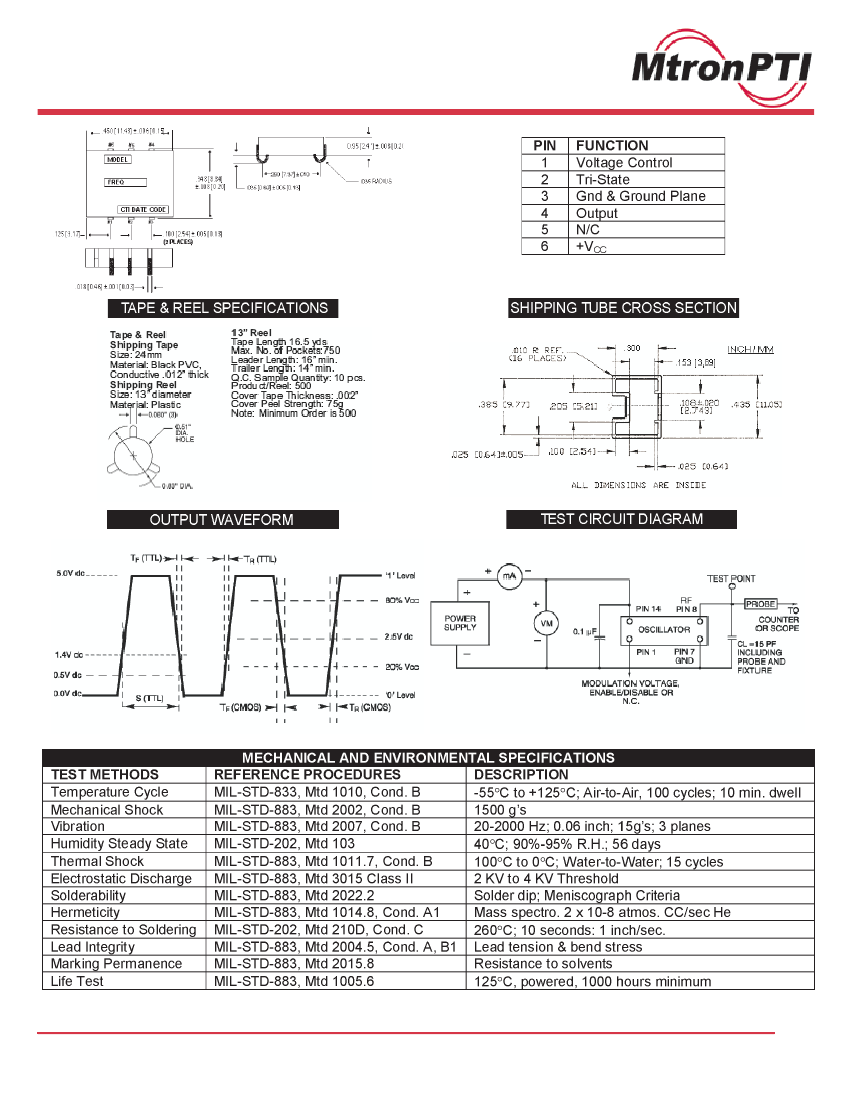

K1526BLC Series

5V 9x11mm Surface Mount Voltage Controlled Crystal Oscillator

•

Applications:

Phase-Locked Loops (PLL’s), Clock Recovery,

Reference Signal Tracking, Synthesizers, Frequency

Modulation/Demodulation

•

Ceramic Construction, Medal Lid

•

2.0 to 80 MHz Frequency Range

•

0.5V to 4.5 V Control Voltage

•

±25 ppm Stability (Typical)

•

-40°C to +85°C Operating Temperature Option

•

Tape and Reel Available

•

Ground Shielded Top and Bottom

•

6-pin SOJ-20 Footprint

•

J-Leads Seam-sealed, Resistance Welded Hermetic Package

OBSOLETE

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

K1526BLCMT-FREQ1 Related Products

	K1526BLCMT-FREQ1	K1526BLCMT-FREQ2	K1526BLC-FREQ1	K1526BLC-FREQ2	K1526BLCC-FREQ2	K1526BLCT-FREQ2	K1526BLCT-FREQ1
Description	TTL Output Clock Oscillator, 2MHz Min, 55MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	TTL Output Clock Oscillator, 55.1MHz Min, 80MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	CMOS/TTL Output Clock Oscillator, 2MHz Min, 55MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	CMOS/TTL Output Clock Oscillator, 55.1MHz Min, 80MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	CMOS Output Clock Oscillator, 55.1MHz Min, 80MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	TTL Output Clock Oscillator, 55.1MHz Min, 80MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN	TTL Output Clock Oscillator, 2MHz Min, 55MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 6-PIN
Maker	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	50 ppm	20 ppm	60 ppm	40 ppm	40 ppm	40 ppm	60 ppm
linearity	10%	10%	10%	10%	10%	10%	10%
Manufacturer's serial number	K1526BLC	K1526BLC	K1526BLC	K1526BLC	K1526BLC	K1526BLC	K1526BLC
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	55 MHz	80 MHz	55 MHz	80 MHz	80 MHz	80 MHz	55 MHz
Minimum operating frequency	2 MHz	55.1 MHz	2 MHz	55.1 MHz	55.1 MHz	55.1 MHz	2 MHz
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	TTL	TTL	CMOS/TTL	CMOS/TTL	CMOS	TTL	TTL
physical size	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm	11.43mm x 8.84mm x 2.41mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	40/60 %	40/60 %	45/55 %	45/55 %	45/55 %
