Part Number:
Status:
Description:
0191640047
Active
Perma-Seal™ Female Quick Disconnect for 14-16 AWG Wire, Tab Size 6.35mm
(.250") x .81mm (.032")
General
Product Family
Series
Crimp Quality Equipment
MolexKits
Product Name
Type
Quick Disconnects
19164
Yes
Yes
Perma-Seal™
Quick Disconnect
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Female
No
NiAc™
None
Brass
Straight
Bag
0.81mm (.032")
6.35mm (.250")
-55°C to +125°C
5.97mm (.235") max.
14, 16
1.00 - 2.50
Search Parts in this Series
19164Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010400
Hand Crimp Tool
0640011000
Crimp Head for the 0640050400
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051000
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
SBB-2141

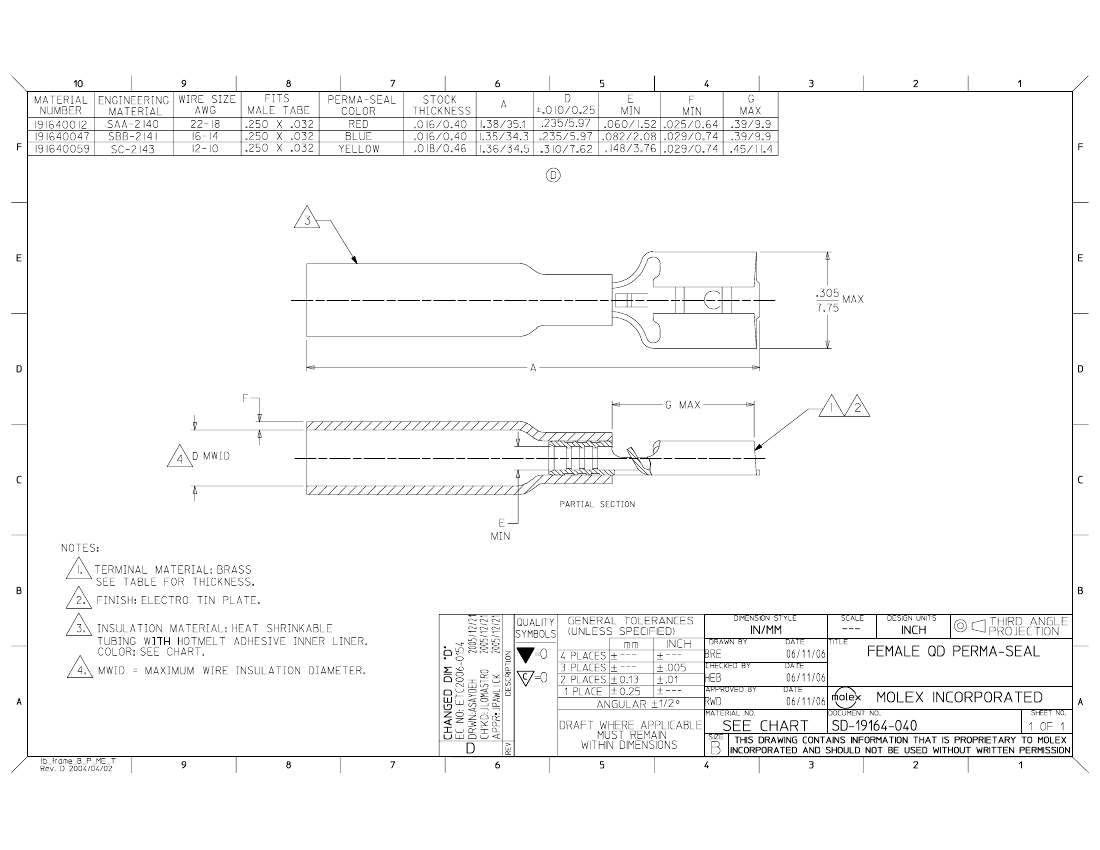

Reference - Drawing Numbers
Sales Drawing
SD-19164-040
