52974-0508 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52974-0508

52974-0508: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52974-0508 Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle

52974-0508 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS,ELV COMPLIANT,TAPE PKG
body width	0.213 inch
subject depth	0.065 inch
body length	0.559 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	52974
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

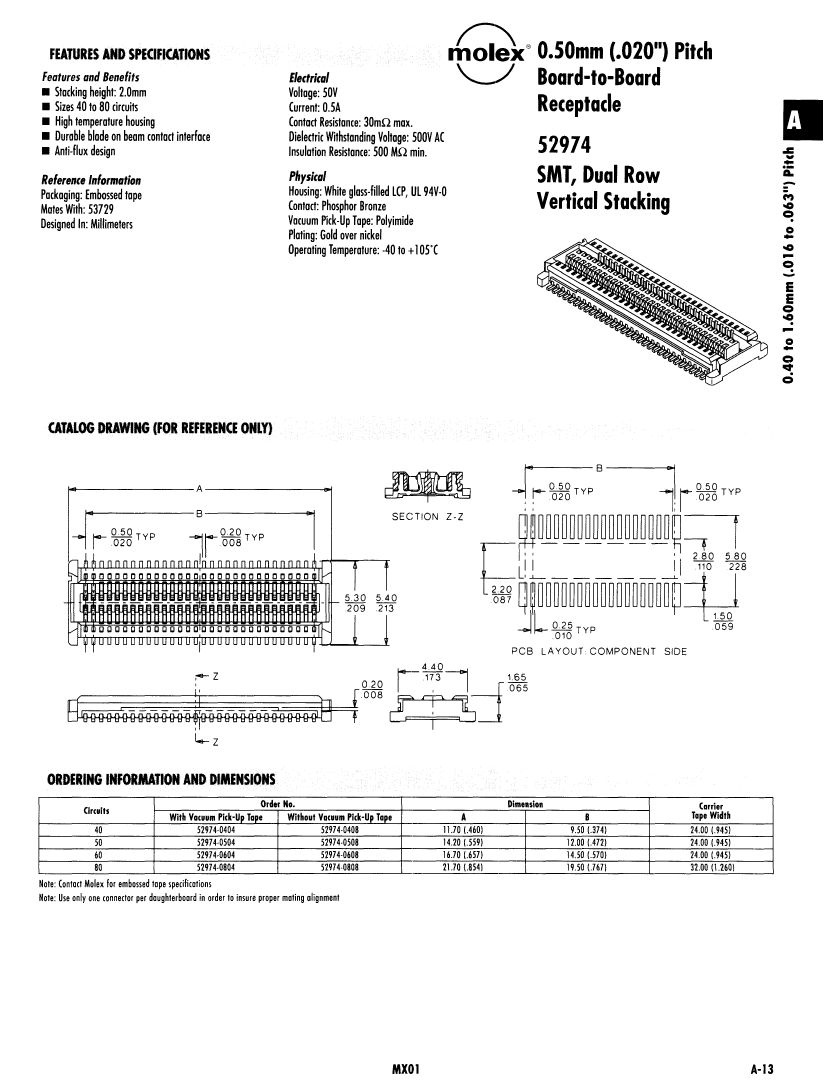

52974-0508 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

52974-0508 Related Products

	52974-0508	52974-0408	52974-0504	52974-0608	52974-0808
Description	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle	Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS,ELV COMPLIANT,TAPE PKG	ROHS,ELV COMPLIANT,TAPE PKG	ROHS,ELV COMPLIANT,TAPE PKG	ROHS,ELV COMPLIANT,TAPE PKG	ROHS,ELV COMPLIANT,TAPE PKG
body width	0.213 inch	0.213 inch	0.213 inch	0.213 inch	0.213 inch
subject depth	0.065 inch	0.065 inch	0.065 inch	0.065 inch	0.065 inch
body length	0.559 inch	0.46 inch	0.559 inch	0.657 inch	0.854 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	52974	52974	52974	52974	52974
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	40	50	60	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
