DW902-P1-17-SCA/FCS datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> DW902-P1-17-SCA/FCS

DW902-P1-17-SCA/FCS: DescriptionSplitter/Coupler, 1460nm Min, 1500nm Max, 2X1 Port, SC/APC Connector, Panel Mount; CategoryWireless rf/communication Optical fiber; File Size309KB，2 Pages; ManufacturerFurukawa Electric Co., Ltd.

Download Datasheet Parametric View All

DW902-P1-17-SCA/FCS Overview

Splitter/Coupler, 1460nm Min, 1500nm Max, 2X1 Port, SC/APC Connector, Panel Mount

DW902-P1-17-SCA/FCS Parametric

Parameter Name	Attribute value
Maker	Furukawa Electric Co., Ltd.
Reach Compliance Code	unknown
body width	11 mm
body height	6 mm
Body length or diameter	32 mm
Communication standards	GR-1209, GR-1221
Connection Type	SC/APC CONNECTOR
Fiber optic equipment types	SPLITTER/COUPLER
Fiber type	PMF
Maximum insertion loss	0.5 dB
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1500 nm
Minimum operating wavelength	1460 nm
Nominal operating wavelength	1480 nm
Port configuration	2X1
minimum return loss	50 dB
surface mount	NO

Preview

Download Datasheet

View All

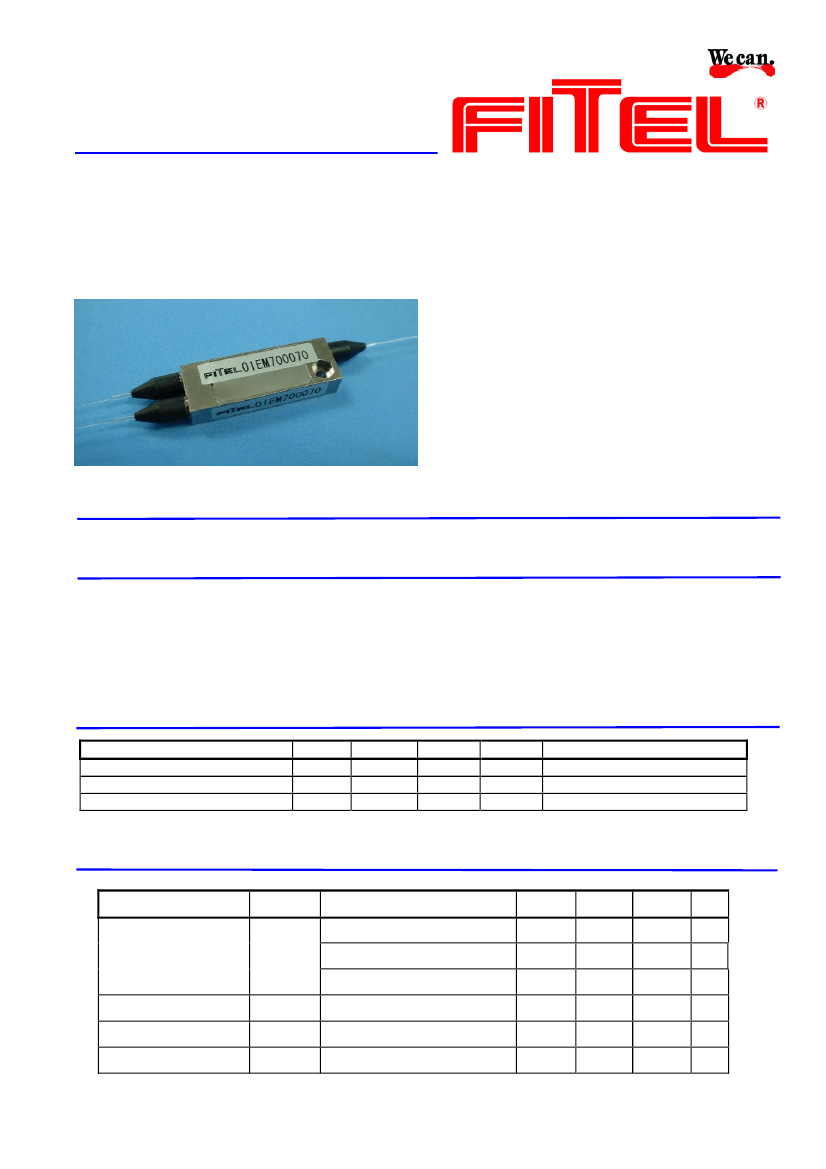

Data Sheet

DW902-P series

November 2003

Polarization Beam Splitter/Combiner

with PMF pigtail(all ports)

Product type: DW902-P

Applications

High power laser diode multiplexing

application for pumping source of

network.

EDFA and Raman amplifier in WDM

Description

•

DW902-P is all three-port polarization beam combiner with PMF pigtail

Features

•

Extremely Low insertion loss. : 0.25dB Typical

•

Flat insertion loss spectrum.

•

High reliability using YAG laser welding and Epoxy-free optical path.

•

Telcordia GR-1209, GR-1221 Qualified.

Environmental conditions

Parameter

Unit

Storage Temperature

°C

Operating Temperature

°C

Maximum Optical Power *1)

Note *1) Connector type is not available.

Min

-40

Typ

Max

1000

Remarks

No dew condensation

3W,DH 2000hr test passed

Optical Characteristics

Item

Symbol

Conditions

Type Number: DW902-P2-

Operating Wavelength

Type Number: DW902-P1-

Type Number: DW902-P3-

Insertion Loss

Extinction Ratio

Return Loss

at Operating Temperature

at common port

Min

1420

1460

1530

17 or 26

0.25

Typ

Max

1460

1500

1570

0.5

Unit

FSDS-023F
