DCMM37PK: DescriptionD Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DCMM37PK Overview

D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Plug,

DCMM37PK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
Factory Lead Time	12 weeks
Other features	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

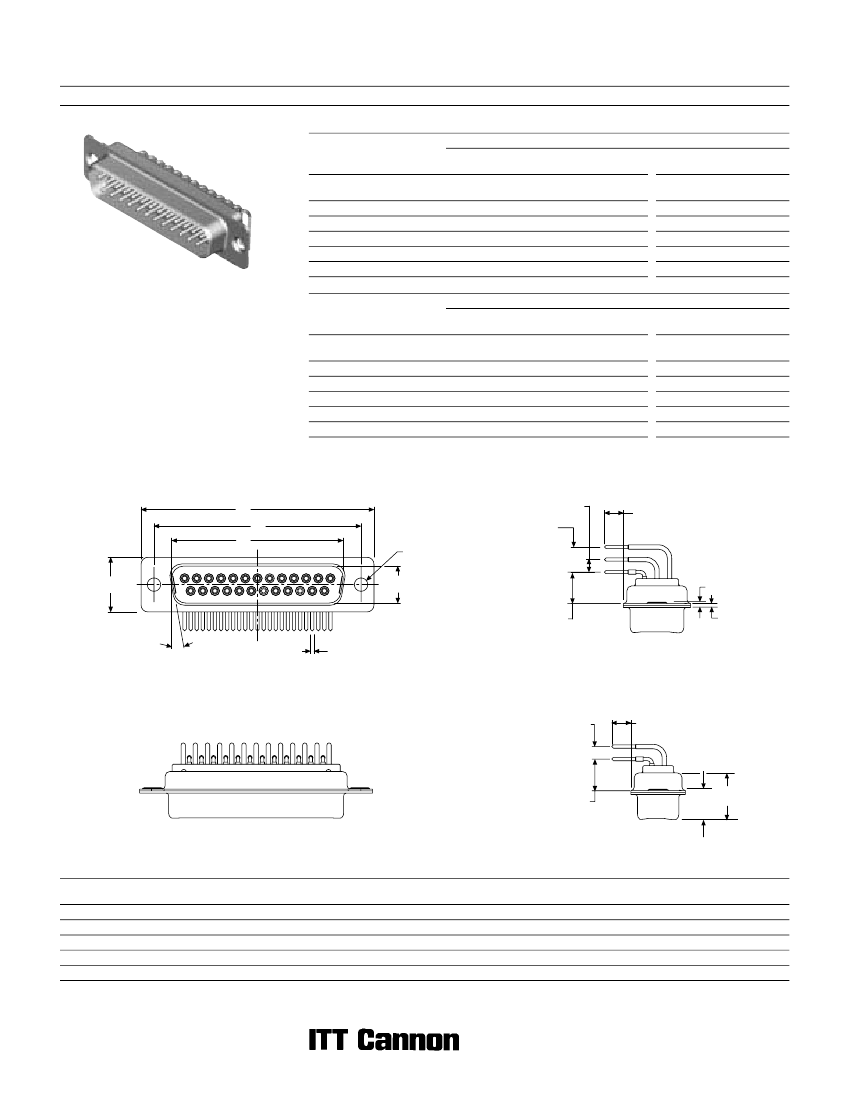

D Subminiature

90° PC Tail

Plug

Part Numbers

Military/High Reliability

Military Part Numbers

X

Y

0,76 (.030)

X

4,01 (.158)

DEMM9PP

DAMM15PP

DBMM25PP

DCMM37PP

DDMM50PP

X

Y

1,02 (.040)

X

4,65 (.183)

DEMM9PR

DAMM15PR

DBMM25PR

DCMM37PR

DDMM50PR

X

3,23 (.127)

DEMM9PC

DAMM15PC

DBMM25PC

DCMM37PC

DDMM50PC

X

4,01 (.158)

DEMM9PK

DAMM15PK

DBMM25PK

DCMM37PK

DDMM50PK

Shell Size

DE

DA

DB

DC

DD

Layout

9

15

25

37

50

X

3,23 (.127)

DEMM9PF

DAMM15PF

DBMM25PF

DCMM37PF

DDMM50PF

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 272.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Commercial Part Numbers

X

Y

0,76 (.030)

X

4,01 (.158)

DEM9PP

DAM15PP

DBM25PP

DCM37PP

DDM50PP

X

Y

1,02 (.040)

X

4,65 (.183)

DEM9PR

DAM15PR

DBM25PR

DCM37PR

DDM50PR

X

3,23 (.127)

DEM9PC

DAM15PC

DBM25PC

DCM37PC

DCM50PC

X

4,01 (.158)

DEM9PK

DAM15PK

DBM25PK

DCM37PK

DDM50PK

Shell Size

DE

DA

DB

DC

DD

Layout

9

15

25

37

50

X

3,23 (.127)

DEM9PF

DAM15PF

DBM25PF

DCM37PF

DDM50PF

Engaging Face

A

C

B

Ø 3,05 (.120)

5,68

(.224)

2,84

(.112)

DD Configuration

X

±

0,69 (.027)

E

D

7,18

±

0,25

(.283

±

.010)

10°

ØY

K

L

2,84

(.112)

X

±

0,69 (.027)

7,18

±

0,25

(.283

±

.010)

W

F

Dimensions

Shell Size

DE

DA

DB

DC

DD

A

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

B

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

D

±0,13

(.005)

8,36 (.329)

11,07 (.436)

E

±0,38

(.015)

12,55 (.494)

15,37 (.605)

F

W

K

±0,25

(.010)

±0,368

(.0145)

±0,41

(.016)

±0,317

(.0125)

±0,25

(.010)

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

L

±0,25

(.010)

0,76 (.030)

0,99 (.039)

134

Dimensions are shown in mm (inch)

Dimensions subject to change

DCMM37PK Related Products

	DCMM37PK	DAMM15PF
Description	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,
Is it Rohs certified?	incompatible	incompatible
Maker	ITT	ITT
Reach Compliance Code	compliant	compliant
Other features	STANDARD: MIL-C-24308, PANEL MOUNT	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYESTER	POLYESTER
MIL compliance	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CHROMATE	CHROMATE
Shell material	STEEL	STEEL
Housing size	4/C	2/A
Termination type	SOLDER	SOLDER
Total number of contacts	37	15
UL Flammability Code	94V-0	94V-0
