ILSB-06031.8UH10%

Description
General Fixed Inductor, 1 ELEMENT, 1.8 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size46KB，2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

ILSB-06031.8UH10% Overview

General Fixed Inductor, 1 ELEMENT, 1.8 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

ILSB-06031.8UH10% Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
ECCN codeEAR99
core materialFERRITE
DC Resistance0.95 Ω
Nominal inductance(L)1.8 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Minimum quality factor (at nominal inductance)25
Maximum rated current0.025 A
self resonant frequency64 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTIN LEAD
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency10 MHz
Tolerance10%

Preview

Download Datasheet

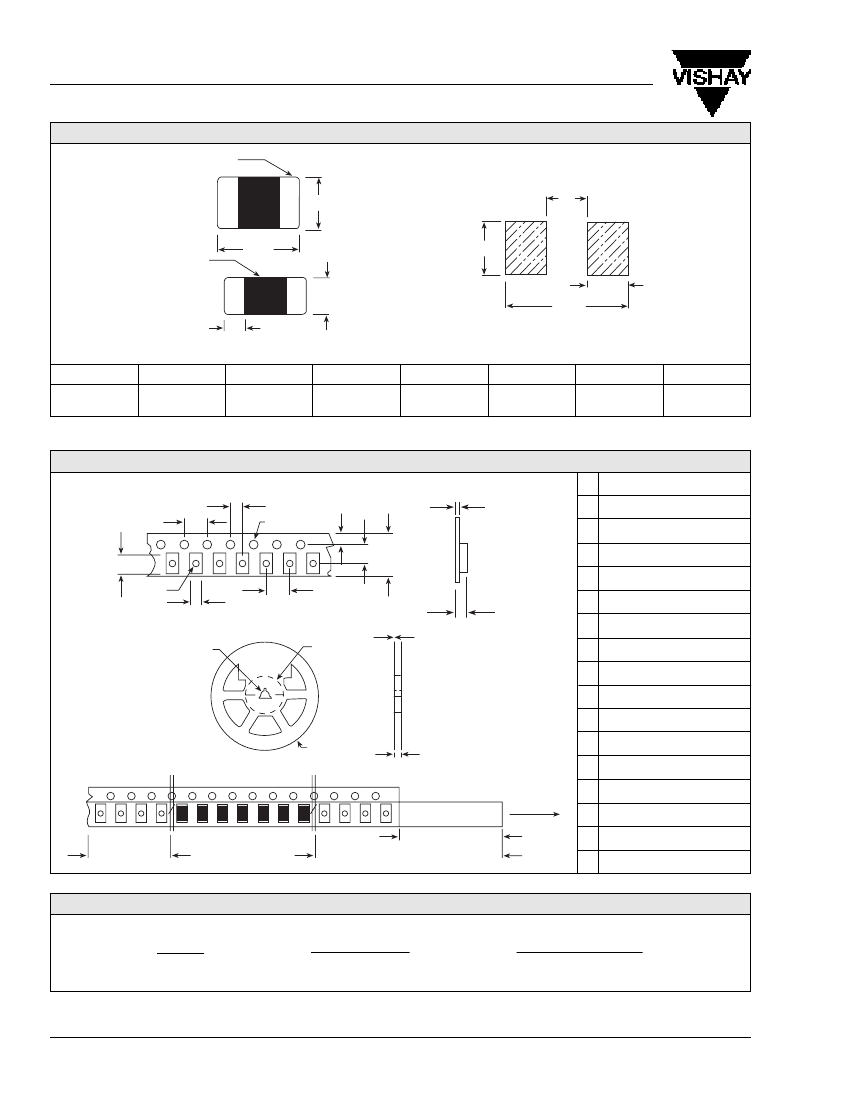

ILSB-0603
Monolithic Chip Inductors
FEATURES
•
High reliability.
•
Surface mountable.
•
Design of the part makes it inherently shielded.
Vishay Dale
ELECTRICAL SPECIFICATIONS
Inductance Range:
.047µH to 4.7µH.
Inductance Tolerance:
±
20% for .047µH to .082µH.
±
10% or
±
20% for .10µH to 4.7µH.
Temperature Range:
- 25°C to + 85°C.
Moisture Resistance:
Store at + 40°C and 90% minimum
relative humidity for 1000 hours.
∆L ≤ ±
5%.
∆Q ≤ ±
30%.
MECHANICAL SPECIFICATIONS
Termination:
90/10 Sn/Pb.
Solderability:
Preheat parts to + 150°C to + 180°C for 2
minutes. Solder temperature 230°C for 3 seconds. At least
90% of termination will be recovered by new solder.
Flex Test:
Meets the requirements of IEC-384-1 with .0787"
[2.0mm] deflection.
Terminal Strength:
0.3Kg, 30 seconds.
Transverse Rupture:
0.3Kg with 0.8mm spacing.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 25°C to + 85°C.
Storage Temperature:
- 40°C to + 85°C.
Load Life:
Tested at full rated DC current at
±
85°C, 1000
hours.
∆L ≤ ±
5%.
∆Q ≤ ±
30%.
Thermal Shock:
Meets requirements of MIL-STD-202,
Method 107, 100 cycles - 25°C to + 85°C.
∆
L
≤ ±
5%.
∆Q ≤ ±
30%.
STANDARD ELECTRICAL SPECIFICATIONS
in inches [millimeters]
INDUCTANCE
(
µ
H)
±
10%
0.047
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
THICKNESS “D”
(Inches)
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
0.032
±
0.006 [0.80
±
0.15]
Q
(Min.)
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
25
25
25
25
25
25
25
25
25
TEST FREQUENCY
L&Q
(MHz)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
MIN.
SELF- RESONANT
FREQUENCY
(MHz)
260
250
245
276
236
207
190
173
157
144
127
121
110
104
98
87
74
69
64
58
52
46
41
38
MAX.
DCR
(Ohms)
0.15
0.25
0.25
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
RATED
DC CURRENT
(mA)
50
50
50
50
50
50
50
50
50
35
35
35
35
35
35
25
25
25
25
15
15
15
15
15
TOLERANCE
±
20%
±
20%
±
20%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
±
20%,
±
10%
Document Number 34027
Revision 21-Sep-00
www.vishay.com
1
