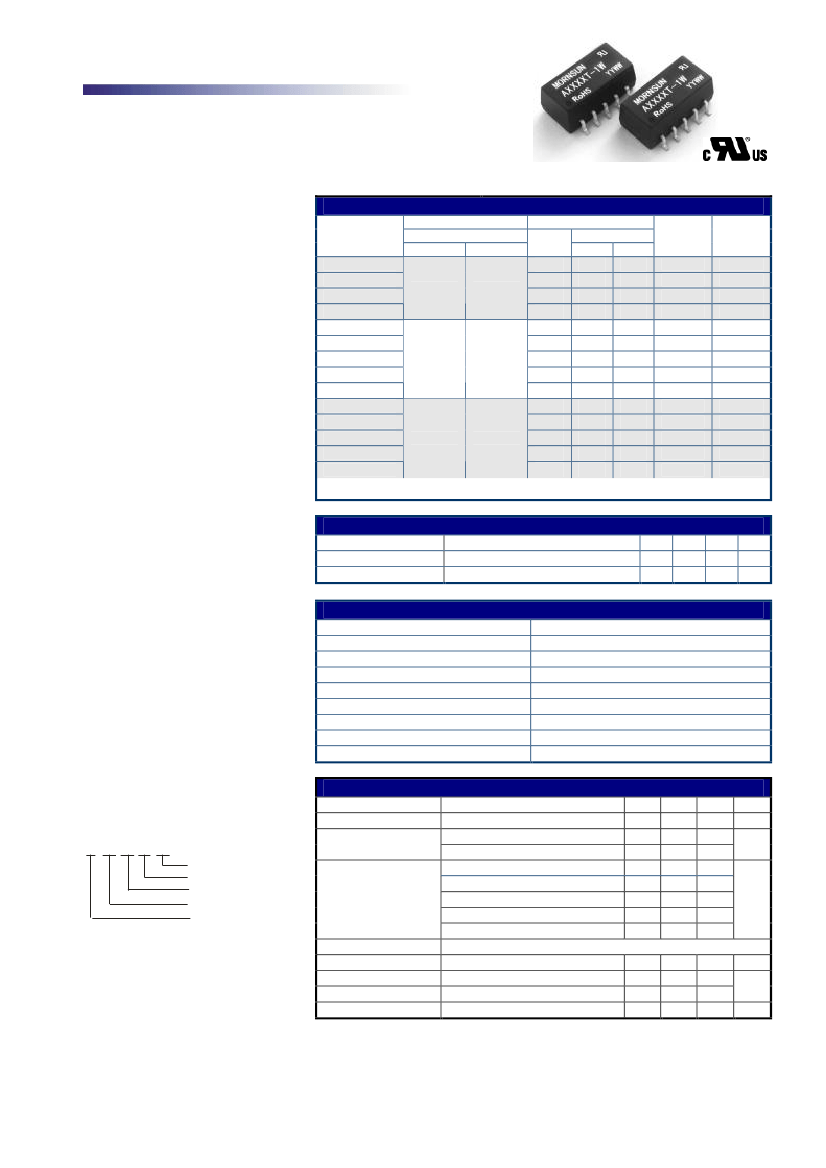

A_T-1W Series
FIXED INPUT ISOLATED & UNREGULATED
1W DUAL OUTPUT
UTRALMINIATURE SMD PACKAGE
FEATURES
●
Positive& Negative Voltage Output
●
Small Footprint
●
SMD Package Styles
●
1KVDC Isolation
●
Industry Standard Pinout
●
No Heatsink Required
●
Temperature Range: -40
°C
-+85
°C
●
No External Component Required
●
RoHS
Compliance
APPLICATIONS
The A_T-1W Series are specially
designed for applications where a
group of polar power supplies are
isolated from the input power supply
in a distributed power supply system
on a circuit board.
These products apply to:
1) Where the voltage of the input
power supply is fixed (voltage
variation
≤±10%);
2) Where isolation is necessary
between input and output (isolation
voltage =1000VDC);
3) Where the regulation of the output
voltage and the output ripple noise
are not demanding.
Such as: purely digital circuits,
ordinary low frequency analog
circuits, and IGBT power device
driving circuits.
multi-country patent protection
RoHS
PRODUCT PROGRAM
Part
Number
A0303T-1W**
A0305T-1W**
A0309T-1W**
A0312T-1W**
A0503T-1W**
A0505T-1W
A0509T-1W
A0512T-1W
A0515T-1W
A1203T-1W**
A1205T-1W
A1209T-1W
A1212T-1W
A1215T-1W
** No
UL
Input
Voltage (VDC)
Nominal
Range
3.3
3.0~3.6
Voltage
(VDC)
±3.3
±5
±9
±12
±3.3
±5
±9
±12
±15
±3.3
±5
±9
±12
±15
Output
Current (mA)
Max
Min
±152 ±15
±100 ±10
±56
±6
±42
±5
±152 ±15
±100 ±10
±56
±6
±42
±5
±33
±4
±152 ±15
±100 ±10
±56
±6
±42
±5
±33
±4
Efficiency
(%, Typ)
67
70
74
77
67
71
77
78
78
67
71
73
74
74
Package
Style
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
5
4.5~5.5
12
10.8~13.2
ISOLATION SPECIFICATIONS
Item
Isolation voltage
Isolation resistance
Test conditions
Tested for 1 minute and 1mA max
Test at 500VDC
Min Typ
1000
1000
Max Units
VDC
MΩ
COMMON SPECIFICATIONS
Short circuit protection
Temperature rise at full load
Cooling
Operating temperature range
Storage temperature range
Lead temperature
Storage humidity range
Case material
MTBF
1 second
25°C Max, 15°C Typ
Free air convection
-40°C~+85°C
-55°C ~+125°C
260°C (1.5mm from case for 10 seconds)
≤
95%
Plastic (UL94-V0)
>3,500,000 hours
MODEL SELECTION
OUTPUT SPECIFICATIONS
Item
Output power
Line regulation
Test conditions
Min
0.1
Typ
For Vin change of 1%(3.3V input)
For Vin change of 1%(Others)
10% to 100% load (3.3V output)
10% to 100% load (5V output)
Load regulation
10% to 100% load (9V output)
10% to 100% load (12V output)
10% to 100% load (15V output)
Output voltage accuracy See tolerance envelope graph
Temperature drift
100% full load
Output ripple
20MHz Bandwidth
Noise
20MHz Bandwidth
Switching frequency
Full load, nominal input
Max
1
1.5
1.2
20
15
15
15
15
0.03
75
150
Units
W
%
A0515T-1W
Ra ted Po wer
P acka ge Styl e
Outpu t Vol tag e
In pu t Vol tag e
P ro du ct Se ri es
15
10
6.5
6.0
6.0
%
%/
°
C
mVp-p
kHz
50
75
100
Note:
1. All specifications measured at TA=25
°C
, humidity<75%, nominal input voltage and rated output load unless
otherwise specified.
2. See below recommended circuits for more details.
For any design change and upgrade, we will not make any prior notification
A/2-2007
Page 1 of 2

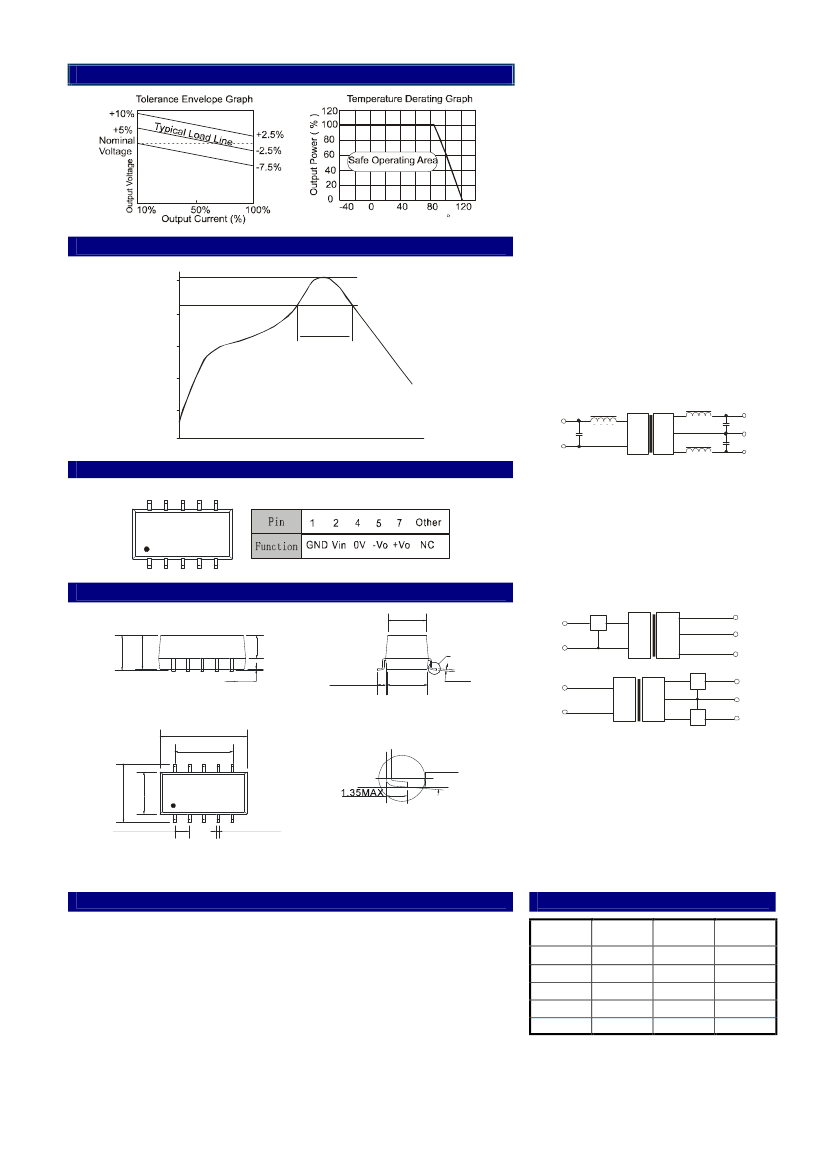

TYPICAL CHARACTERISTICS
Filtering
Ambient Temperature
(
C
)
RECOMMENDED REFLOW SOLDERING PROFILE
250
Peak .Temp 260℃
1 0 Sec Max
220℃
90 Sec Max
( >220
℃
)
200
Te mp e ra tu re (
℃
)
150
100
In some circuits which are sensitive to
noise and ripple, a filtering capacitor may
be added to the DC/DC output end and
input end to reduce the noise and ripple.
However, the capacitance of the output
filter capacitor must be proper. If the
capacitance is too big, a startup problem
might arise. For every channel of output,
provided the safe and reliable operation is
ensured, the greatest capacitance of its
filter capacitor sees the
EXTERNAL
CAPACITOR TABLE.
To get an extremely
low ripple, an
“LC”
filtering network may be
connected to the input and output ends of
the DC/DC converter, which may produce
a more significant filtering effect. It should
also be noted that the inductance and the
frequency of the
“LC”
filtering network
should be staggered with the DC/DC
frequency to avoid mutual interference
(Figure 1).
L
L
50
Vin
0
+Vo
C
Time (sec. )
DC DC
C
L
C
0V
-Vo
GND
PIN CONNECTIONS
10 9 8 7 6
（Figure
1）
Output Voltage Regulation and
Over-voltage Protection Circuit
The simplest device for output voltage
regulation, over-voltage and over-current
protection is a linear voltage regulator
with overheat protection that is connected
to the input or output end in series
(Figure2).
Vin
REG
OUTLINE DIMENSIONS& RECONMENDED FOOTPRINT DETAILS
(0.27)
(0.26)
1 2 3 4 5
6.76
+Vout
6. 25
(0.25)
6.50
(0.17)
4.25
Side View
1.85MAX
(0.07)
DC DC
A
GND
0.3
0V
-V
out
REG
0 .2 5
(0.01)
(0.28)
7.15
(0.01)
Vin
GND
+Vout
0V
DC DC
REG
-V
out
15. 24
(0.6)
10.16
(0.4)
11.2 MAX
（Figure2）
A
Top View
0.6
±
0.05
(0.06)
(0.02)
5 .00
0.50
Overload Protection
。
2.54
±0.1
(0.1
±0.004)
(0.02
±
0.002)
Note: All Pins on a 2.54mm(0.1) pitch; All Pin Widths are 0.60 mm(0.02);
Tolerances:±0.15mm(0.006); Unit: mm(inch)
。
Under normal operating conditions, the
output circuit of these products has no
protection against over-current and
short-circuits. The simplest method is to
connect a self-recovery fuse in series at
the input end or add a circuit breaker to the
circuit.
(0.44)
APPLICATION NOTE
Requirement on output load
(0.30)
7.50
EXTERNAL CAPACITOR TABLE
Vin
3.3VDC
5VDC
12VDC
External
capacitor
4.7uF
4.7uF
2.2uF
Vout
3.3VDC
5VDC
9VDC
12VDC
15VDC
External
capacitor
4.7uF
4.7uF
2.2uF
1uF
0.47uF
To ensure this module can operate efficiently and reliably, a minimum load is
specified for this kind of DC/DC converter in addition to a maximum load
(namely full load). During operation, make sure the specified range of input
voltage is not exceeded, the minimum output load is
not less than 10%
of the
full load, and that this product should never be operated under no load! If the
actual output power is very small, please connect a resistor with proper
resistance at the output end in parallel to increase the load.
It’s not recommend to connect any
external capacitor in the application
field with less than 0.5 watt output。
