A3012-04S-ST2-80B8-G5-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3012-04S-ST2-80B8-G5-Z

A3012-04S-ST2-80B8-G5-Z: DescriptionTelecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size441KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3012-04S-ST2-80B8-G5-Z Overview

Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3012-04S-ST2-80B8-G5-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, WITH LED
Board mount options	SPLIT BOARD LOCK
body width	0.516 inch
subject depth	0.618 inch
body length	2.512 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A3012
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	COPPER ALLOY
Terminal length	0.105 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

LED Options

LED #1 = G ; LED #2 = 4

LED #1 = G ; LED #2 = 3

LED #1 = 4 ; LED #2 = 4

LED #1 = 5 ; LED #2 = 5

LED #1 = 3 ; LED #2 = 3

LED #1 = 6 ; LED #2 = 6

LED OPTION TABLE:

OPTION

ELECTRICAL:

VOLTAGE RATING: 125 VAC RMS.

CURRENT RATING: 1.5A

CONTACT RESISTANCE: < 30 mΩ Max.

INSULATION RESISTANCE: > 1000 MΩ Min. at 500 VDC

DIELECTRIC WITHSTANDING VOLTAGE:

1000V (rms) AC 60Hz for 1 Minute

OPERATING TEMPERATURE: 0° C to +70° C

MATERIAL:

HOUSING: PBT+30% G.F. UL94V-0 COLOR-BLACK

INSERT: PBT+30% G.F. UL94V-0 COLOR-BLACK

BACK PLATE: PBT+30% G.F. COLOR-BLACK

SHIELD: 0.25mm Thickness Copper Alloy

CONTACT: 0.35mm Thickness Phosphor Bronze

CONTACT PLATING: Gold Plating Over Nickel

MECHANICAL:

DURABILITY: 750 Mating Cycles Min.

LED

FOWARD DC CURRENT: 2mA

FOWARD VOLTAGE: 2.2 V Typical

REVERSE VOLTAGE: 5 V Min.

POWER DISSIPATION: Green=24 mW; Yellow=36 mW

FORWARD REVERSE

GREEN

------

YELLOW

------

RED

------

GREEN ORANGE

YELLOW ORANGE

GREEN

RED

YELLOW

RED

GREEN YELLOW

YELLOW GREEN

RED

GREEN

RED

YELLOW

HOW TO ORDER:

B8 -

RoHS

COMPLIANT

NUMBER OF PORTS

SHIELD:

S - SHIELDED

TABS:

NO - NO TABS

ST - SPRING TAB

FLANGE:

0 - NO FLANGE

1 - FLANGE

LED 1: LED 2:

Choose Option

from Table Above

SPRING TAB LOCATION:

SELECTIVE PLATING:

0 - NO TAB LOCATION

1 - SPRING TABS ON TOP

2 - SPRING TABS ON TOP & SIDES

6 - Au CONTACT AREA/TIN TAIL

7 - 15u" Au CONTACT AREA/TIN TAIL

8 - 30u" Au CONTACT AREA/TIN TAIL

9 - 50u" Au CONTACT AREA/TIN TAIL

DIMENSION "D"

PCB GROUND TAB

LOCATION:

B8 - BACK, 3.56mm w/2

REAR TABS, CENTER

MOUNTING POST

Rev

Issued

A Updated for RoHS Compliance

SCALE:n/a

TOL. DEC.

.XX +/- 0.25

.XXX +/- 0.13

.XXXX +/- 0.05

Drawn Checked Approved

MDH

S.M.

B.S.

S.M.

Date

09/24/04

10/5/07

SMP TECHNOLOGY, INC.

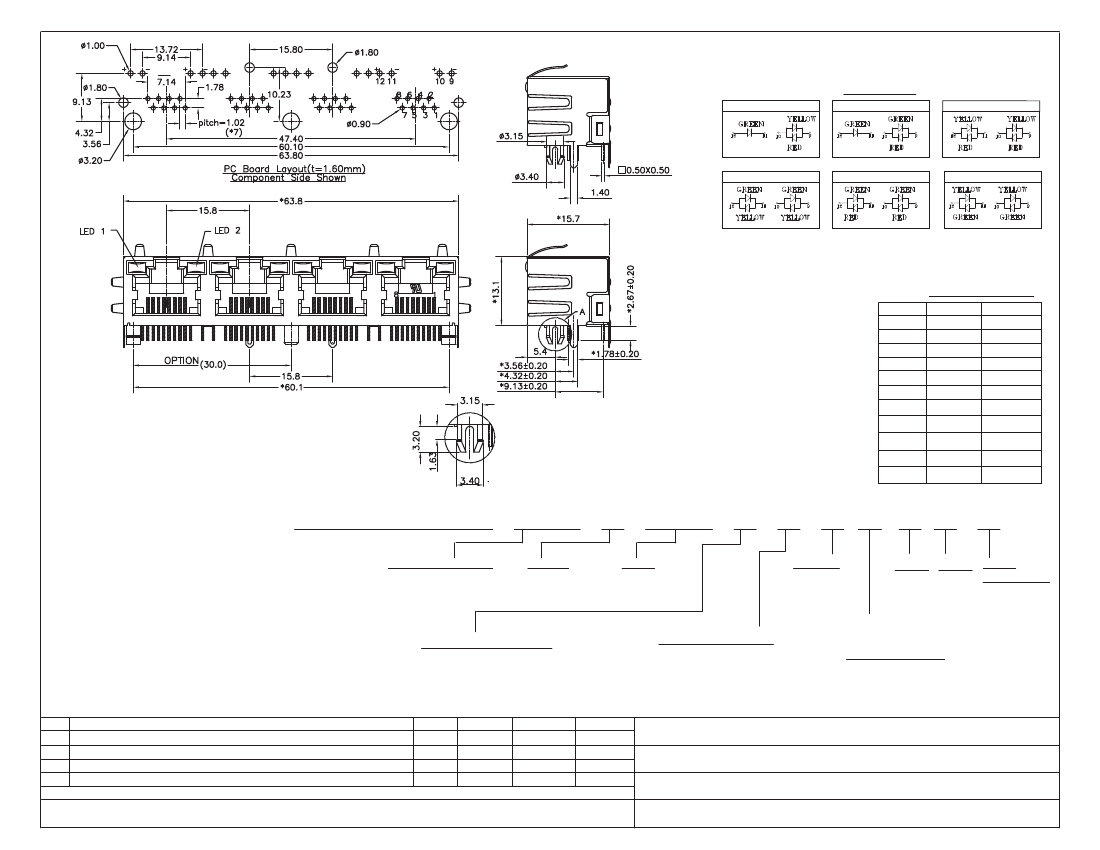

PCB Jack, 4-Port, Shielded w/LEDs

ANGLE +0.45 / -0.15

UNIT: mm

P/N: A3012 - 04S - ST2 - X0B8 - XX -Z

Pg: 1
