IMSG171S-35 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> IMSG171S-35

IMSG171S-35: DescriptionD/A Converter, 6-Bit, 3 Func, CMOS, CDIP28,; CategoryAnalog mixed-signal IC converter; File Size1MB，22 Pages; ManufacturerInmos Corporation

Download Datasheet Parametric Compare View All

IMSG171S-35 Overview

D/A Converter, 6-Bit, 3 Func, CMOS, CDIP28,

IMSG171S-35 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Inmos Corporation
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.78%
Number of digits	6
Number of functions	3
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum stabilization time	0.028 µs
Maximum slew rate	150 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

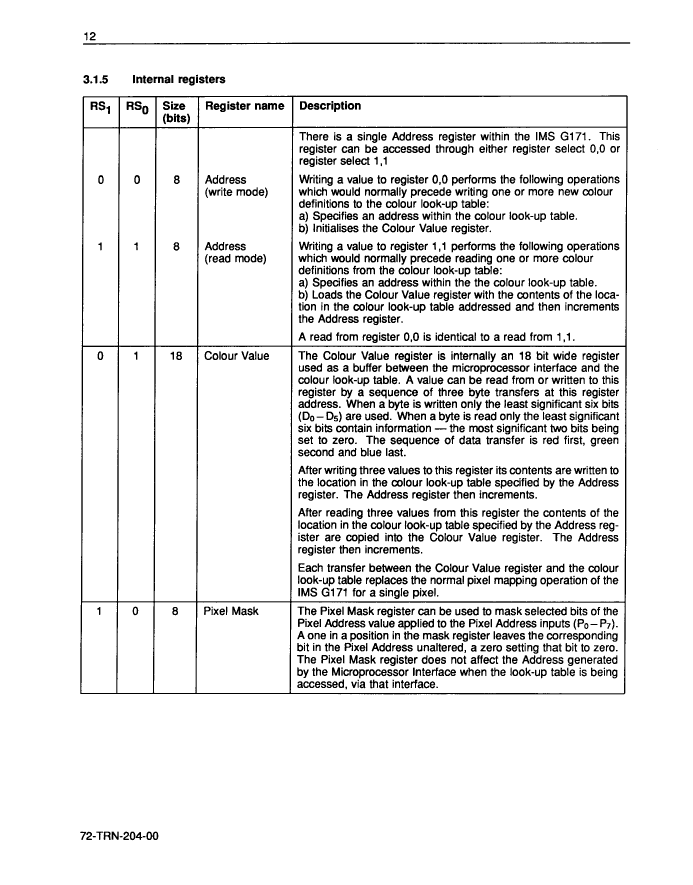

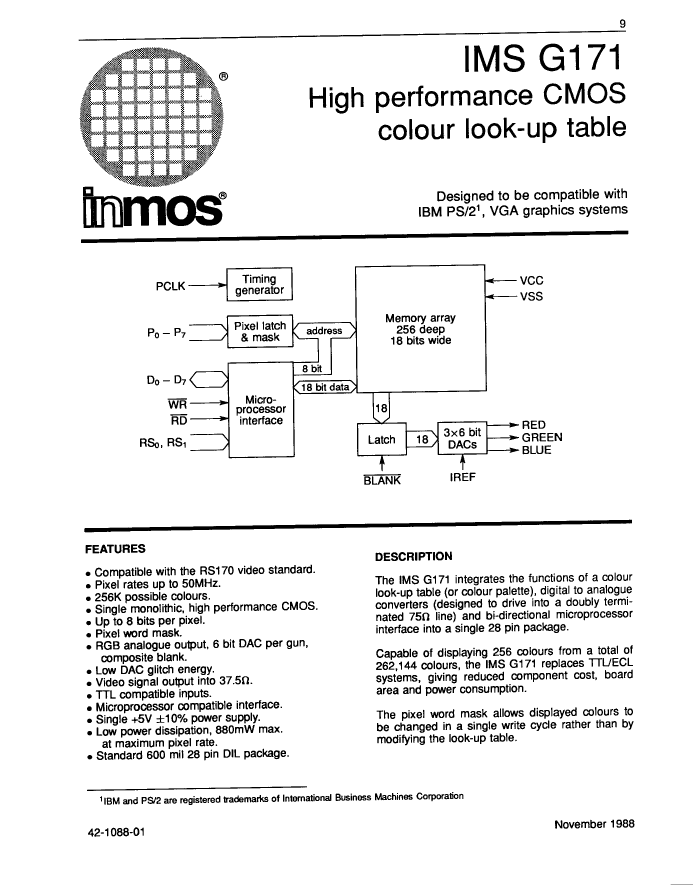

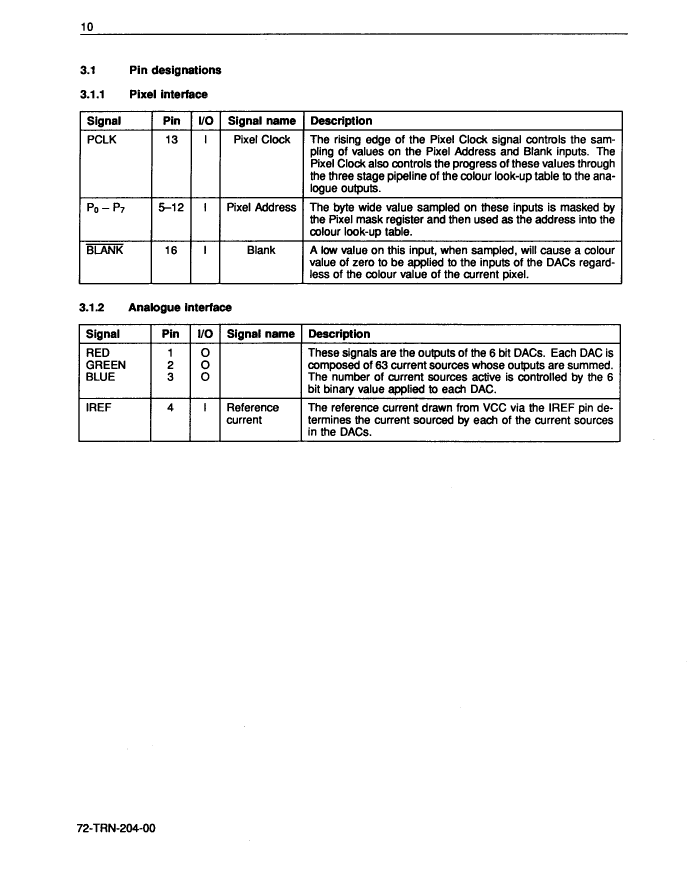

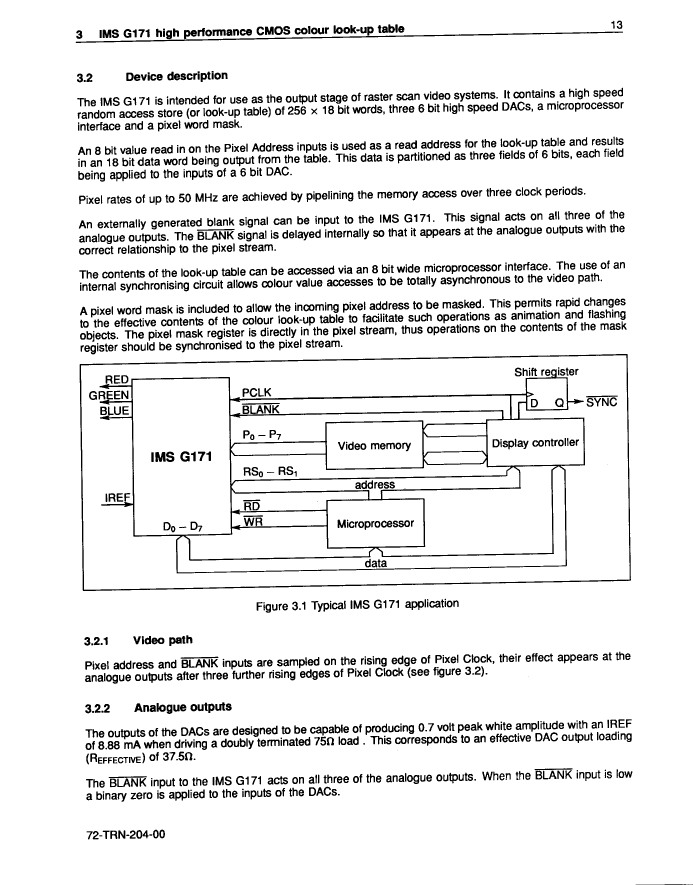

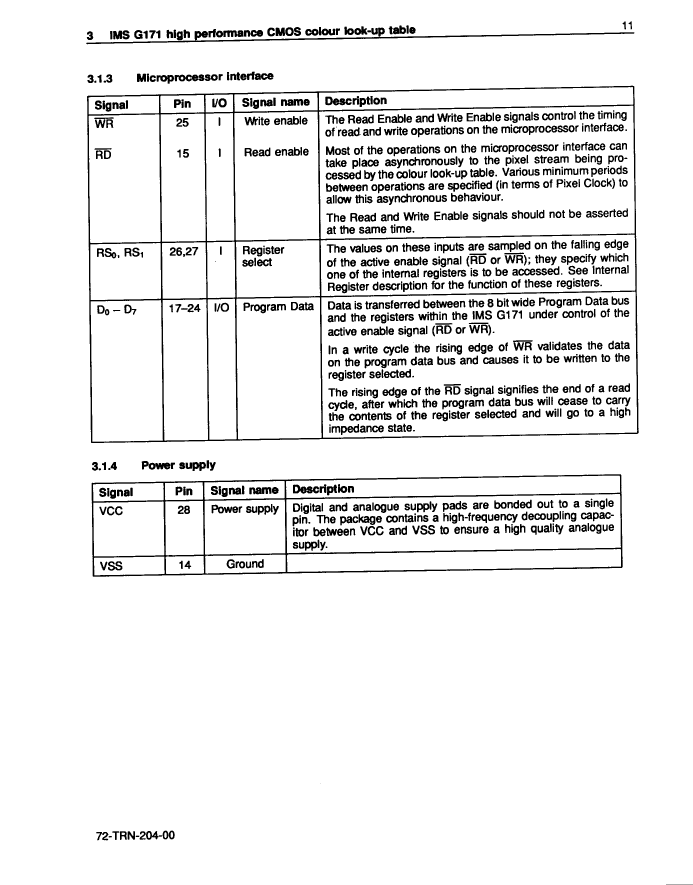

IMSG171S-35 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IMSG171S-35 Related Products

	IMSG171S-35	IMSG171P-35	IMSG171P-35C	IMSG171P-50S	IMSG171P-50	IMSG171S-50
Description	D/A Converter, 6-Bit, 3 Func, CMOS, CDIP28,	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28,	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28,	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28,	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28,	D/A Converter, 6-Bit, 3 Func, CMOS, CDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Inmos Corporation	Inmos Corporation	Inmos Corporation	Inmos Corporation	Inmos Corporation	Inmos Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
JESD-30 code	R-XDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.78%	0.78%	0.78%	0.78%	0.78%	0.78%
Number of digits	6	6	6	6	6	6
Number of functions	3	3	3	3	3	3
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	0.028 µs	0.028 µs	0.028 µs	0.02 µs	0.02 µs	0.02 µs
Maximum slew rate	150 mA	150 mA	150 mA	160 mA	160 mA	160 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
