TSG85121VP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> TSG85121VP

TSG85121VP: DescriptionIC,FILTER,LOW PASS,CMOS,DIP,8PIN,PLASTIC; CategoryAnalog mixed-signal IC filter; File Size456KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

TSG85121VP Overview

IC,FILTER,LOW PASS,CMOS,DIP,8PIN,PLASTIC

TSG85121VP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
Active filter type	SWITCHED CAPACITOR FILTER
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Order	7TH
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	5 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
transfer characteristics	ELLIPTIC

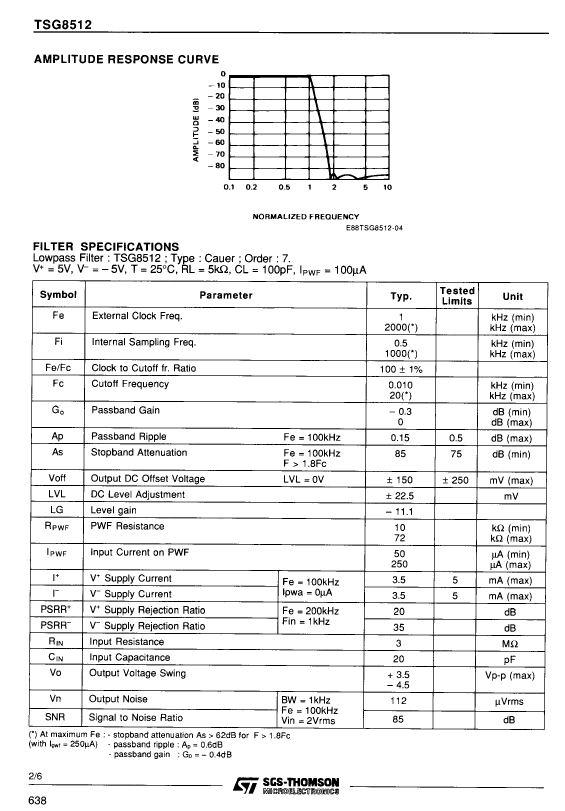

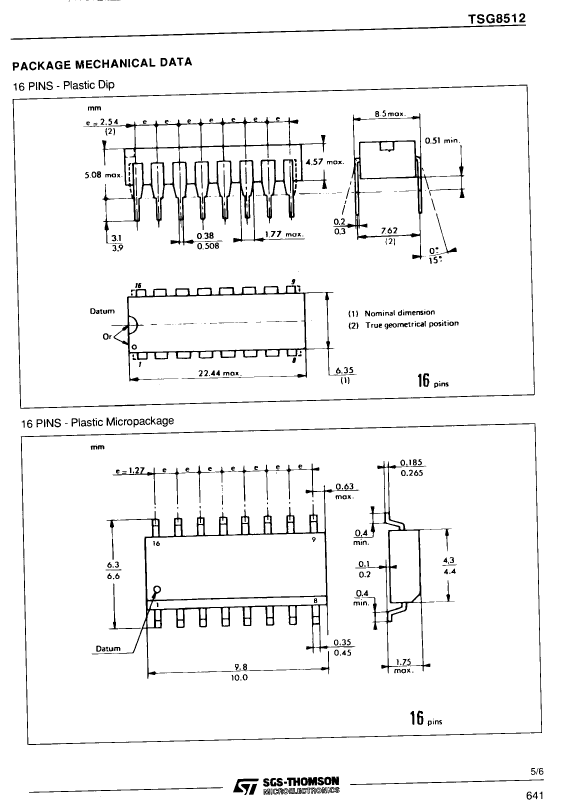

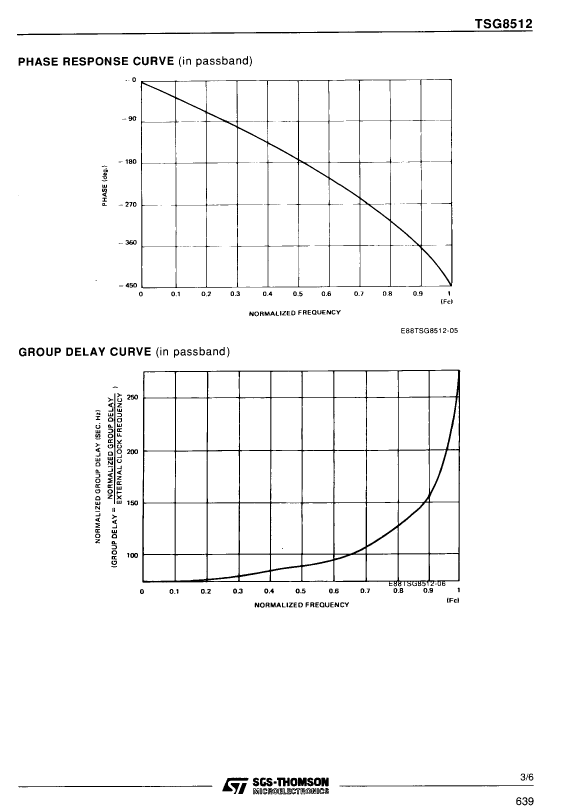

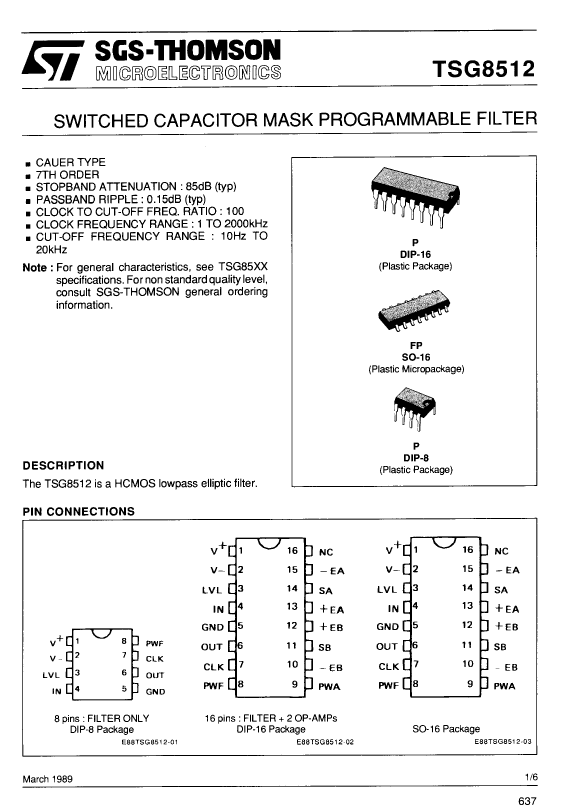

Preview

Download Datasheet

View All

TSG85121VP Related Products

	TSG85121VP	TSG8512VP	TSG8512CP	TSG8512IC	TSG8512IP	TSG8512MC	TSG8512VC	TSG85121CP	TSG85121IP	TSG8512CC
Description	IC,FILTER,LOW PASS,CMOS,DIP,8PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,CERAMIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,CERAMIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,CERAMIC	IC,FILTER,LOW PASS,CMOS,DIP,8PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,8PIN,PLASTIC	IC,FILTER,LOW PASS,CMOS,DIP,16PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Active filter type	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER
JESD-30 code	R-PDIP-T8	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T8	R-PDIP-T8	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	16	16	16	16	16	16	8	8	16
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	85 °C	125 °C	85 °C	70 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-	-25 °C	-25 °C	-55 °C	-40 °C	-	-25 °C	-
Order	7TH	7TH	7TH	7TH	7TH	7TH	7TH	7TH	7TH	7TH
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP8,.3	DIP8,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS	LOWPASS
Maximum supply current (Isup)	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	OTHER	OTHER	MILITARY	INDUSTRIAL	COMMERCIAL	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transfer characteristics	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC	ELLIPTIC
Parts packaging code	-	DIP	DIP	DIP	DIP	DIP	DIP	-	-	DIP
Contacts	-	16	16	16	16	16	16	-	-	16
Base Number Matches	-	1	1	1	1	1	1	-	-	-
