IDGV51-05A1F1C-45X

Description
Synchronous Graphics RAM, 16MX32, CMOS, PBGA170, GREEN, PLASTIC, TFBGA-170
Categorystorage    storage
File Size900KB,20 Pages
ManufacturerQIMONDA
Environmental Compliance
Download Datasheet Parametric View All

IDGV51-05A1F1C-45X Overview

Synchronous Graphics RAM, 16MX32, CMOS, PBGA170, GREEN, PLASTIC, TFBGA-170

IDGV51-05A1F1C-45X Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerQIMONDA
Parts packaging codeBGA
package instructionTFBGA, BGA170,14X17,32
Contacts170
Reach Compliance Codeunknown
ECCN codeEAR99
access modeMULTI BANK PAGE BURST
Other featuresAUTO/SELF REFRESH
Spare memory width16
I/O typeCOMMON
JESD-30 codeR-PBGA-B170
length14 mm
memory density536870912 bit
Memory IC TypeSYNCHRONOUS GRAPHICS RAM
memory width32
Number of functions1
Number of ports1
Number of terminals170
word count16777216 words
character code16000000
Operating modeSYNCHRONOUS
Maximum operating temperature85 °C
Minimum operating temperature
organize16MX32
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeTFBGA
Encapsulate equivalent codeBGA170,14X17,32
Package shapeRECTANGULAR
Package formGRID ARRAY, THIN PROFILE, FINE PITCH
power supply1.5 V
Certification statusNot Qualified
refresh cycle8192
Maximum seat height1.2 mm
self refreshYES
Maximum supply voltage (Vsup)1.545 V
Minimum supply voltage (Vsup)1.455 V
Nominal supply voltage (Vsup)1.5 V
surface mountYES
technologyCMOS
Temperature levelOTHER
Terminal formBALL
Terminal pitch0.8 mm
Terminal locationBOTTOM
width12 mm

IDGV51-05A1F1C-45X Preview

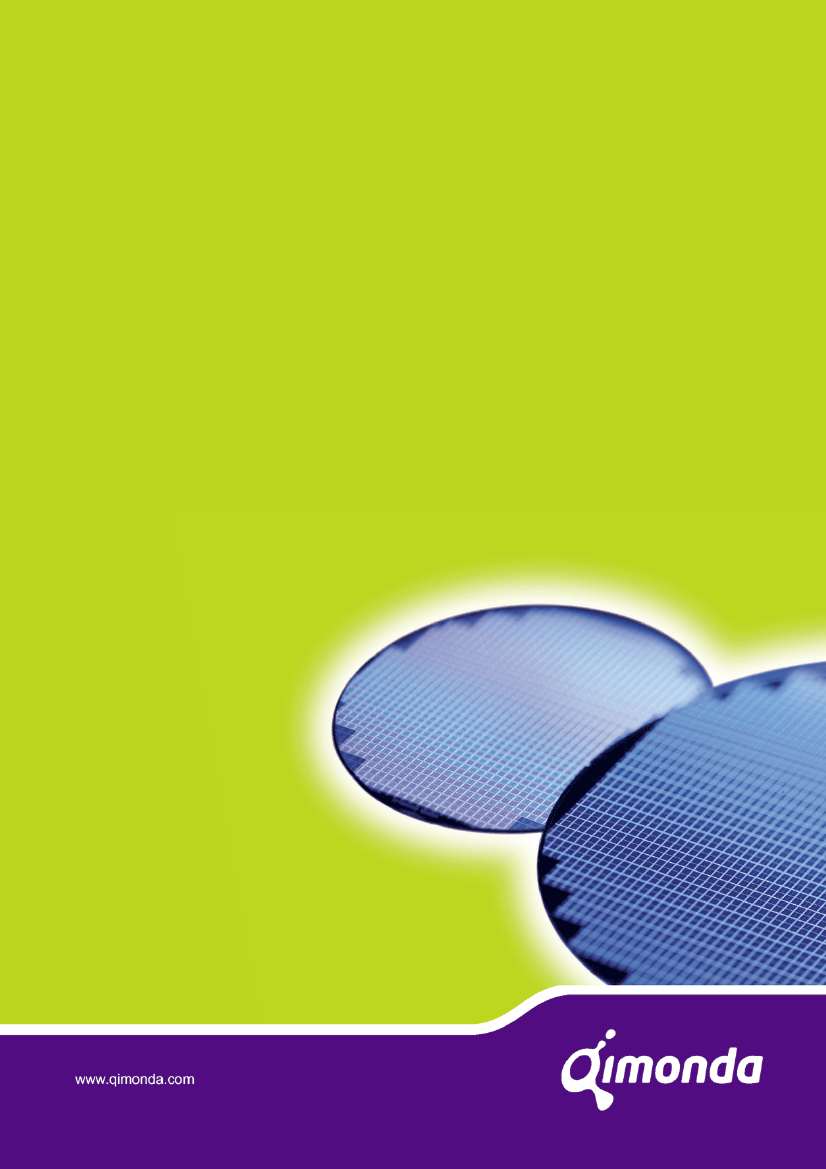

September 2008
IDGV51-05A1F1C-[40X/45X/50X]
512Mbit x32/x16 GDDR5 SGRAM
EU RoHS compliant
Internet Data Sheet
Rev. 1.10
Internet Data Sheet
IDGV51-05A1F1C
512MBit GDDR5 Graphics RAM
IDGV51-05A1F1C-[40X/45X/50X]
Revision History: 2008-09, Rev. 1.10
Page
5
All
Subjects (major changes since last revision)
Figure1 - Maximum data rate for RDQS mode increased to 3.0 Gbps; PLL-off mode restricted to 4.0 Gbps
36X speed bin removed
Previous Revision: Rev. 1.00, 2008-06
We Listen to Your Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to:
techdoc@qimonda.com
qag_techdoc_A4, 4.22, 2008-07-22
11092007-TJ6A-WC0N
2
Internet Data Sheet
IDGV51-05A1F1C
512MBit GDDR5 Graphics RAM
1
1.1
Overview
Features
Auto Precharge option for each burst access
Programmable CAS latency: 6 to 20
t
CK
Programmable Write latency: 3 to 7
t
CK
Programmable CRC READ latency: 0 to 2
t
CK
Programmable CRC WRITE latency: 8 to 11
t
CK
Digital
t
RAS
lockout
RDQS mode on EDC pin
Data output mode for Vendor ID, density and FIFO depth
Low Power modes
On-chip temperature sensor with read-out
Auto refresh and self refresh modes
32ms data retention (8k cycles)
Automatic temperature sensor controlled self refresh rate
On-die termination (ODT): nom. values of 60
Ω
or 120
Ω
Pseudo open drain (POD–15) compatible outputs (40
Ω
pulldown, 60
Ω
pullup)
ODT and output driver strength auto-calibration with
external resistor ZQ pin (120
Ω)
Programmable termination and driver strength offsets
Selectable external or internal VREF for data inputs;
programmable offsets for internal VREF
Separate external VREF for address / command inputs
Boundary Scan function with SEN pin
Mirror function with MF pin
V
DD
1.5V +/- 0.045 V
V
DDQ
1.5V +/- 0.045 V
PG-TFBGA 170
RoHS Compliant Product
1)
• Monolithic 512Mbit GDDR5 SGRAM (2Mbit x 32 I/O x 8
banks and 4Mbit x 16 I/O x 8 banks)
• x32/x16 mode configuration set at power-up with EDC pin
• Quarter data-rate differential clock inputs CK/CK for
address and commands
• Two half data-rate differential clock inputs WCK/WCK,
each associated with two data bytes (DQ, DBI, EDC)
• Single ended interface for data, address and command
• Double Data Rate (DDR) data (WCK)
• Single Data Rate (SDR) command (CK)
• Double Data Rate (DDR) addressing (CK)
• Write data mask function (single/double byte mask) via
address bus
• 8 internal banks
• 4 bank groups for
t
CCD
= 3
t
CK
• 8n prefetch architecture: 256 bit per array Read or Write
access
• Burst Length: 8 only
• Data bus inversion (DBI) and address bus inversion (ABI)
• Input/output PLL on/off mode
• Address training: address input monitoring via DQ pins
• WCK2CK clock training: phase information via EDC pins
• Data read and write training via Read FIFO
(FIFO depth = 5)
• Read FIFO pattern preload by LDFF command
• Direct write data load to Read FIFO by WRTR command
• Consecutive read of Read FIFO by RDTR command
• Programmable EDC hold pattern for CDR
• Read/Write data transmission integrity secured by cyclic
redundancy check (CRC–8)
1) RoHS Compliant Product: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment as defined
in the directive 2002/95/EC issued by the European Parliament and of the Council of 27 January 2003. These substances include mercury,
lead, cadmium, hexavalent chromium, polybrominated biphenyls and polybrominated biphenyl ethers.
Rev. 1.10, 2008-09
11092007-TJ6A-WC0N
3
Internet Data Sheet
IDGV51-05A1F1C
512MBit GDDR5 Graphics RAM
TABLE 1
Ordering Information
Part Number
1)
IDGV51-05A1F1C – 40X
IDGV51-05A1F1C – 45X
IDGV51-05A1F1C – 50X
Organization
×32
/ x16
Max. Data Rate
(Gbps/pin)
4.0
4.5
5.0
Package
PG-TFBGA 170
1) I: Qimonda Identifier, D: DRAM, GV: GDDR5, 51: 512Mbit, 0: 1 x CS, 5: x32, A1: 1st node, F1: FBGA, C: Commercial 0° - 85/95°C
1.2
Description
The Qimonda GDDR5 SGRAM is a high speed dynamic random-access memory designed for applications requiring high
bandwidth. It contains 536,870,912 bits and is internally configured as a 8-bank DRAM.
The GDDR5 SGRAM uses a 8n prefetch architecture and DDR interface to achieve high-speed operation. It can be configured
to operate in x32 mode or x16 (clamshell) mode. The mode is detected during device initialization. The GDDR5 interface
transfers two 32 bit wide data words per WCK clock cycle to/from the I/O pins. Corresponding to the 8n prefetch a single write
or read access consists of a 256 bit wide, two CK clock cycle data transfer at the internal memory core and eight corresponding
32 bit wide one-half WCK clock cycle data transfers at the I/O pins.
The GDDR5 SGRAM operates from a differential clock CK and CK. Commands are registered at every rising edge of CK.
Addresses are registered at every rising edge of CK and every rising edge of CK.
GDDR5 replaces the pulsed strobes (WDQS & RDQS) used in previous DRAMs such as GDDR4 with a free running differential
forwarded clock (WCK/WCK) with both input and output data registered and driven respectively at both edges of the forwarded
WCK.
Read and write accesses to the GDDR5 SGRAM are burst oriented; accesses start at a selected location and continue for a
total of eight data words. Accesses begin with the registration of an ACTIVE command, which is then followed by a READ or
WRITE command. The address bits registered coincident with the ACTIVE command and the next rising CK edge are used to
select the bank and the row to be accessed. The address bits registered coincident with the READ or WRITE command and
the next rising CK edge are used to select the bank and the column location for the burst access.
Rev. 1.10, 2008-09
11092007-TJ6A-WC0N
4
Internet Data Sheet
IDGV51-05A1F1C
512MBit GDDR5 Graphics RAM
1.3
Operating Frequency Ranges
Figure 1
provides an overview of the operating frequency ranges for PLL-on and PLL-off operation in normal and RDQS
modes.
FIGURE 1
Operating Modes and Frequency Ranges
Rev. 1.10, 2008-09
11092007-TJ6A-WC0N
5
