Product Datasheet
www.Applied-Motion.com
5023-124

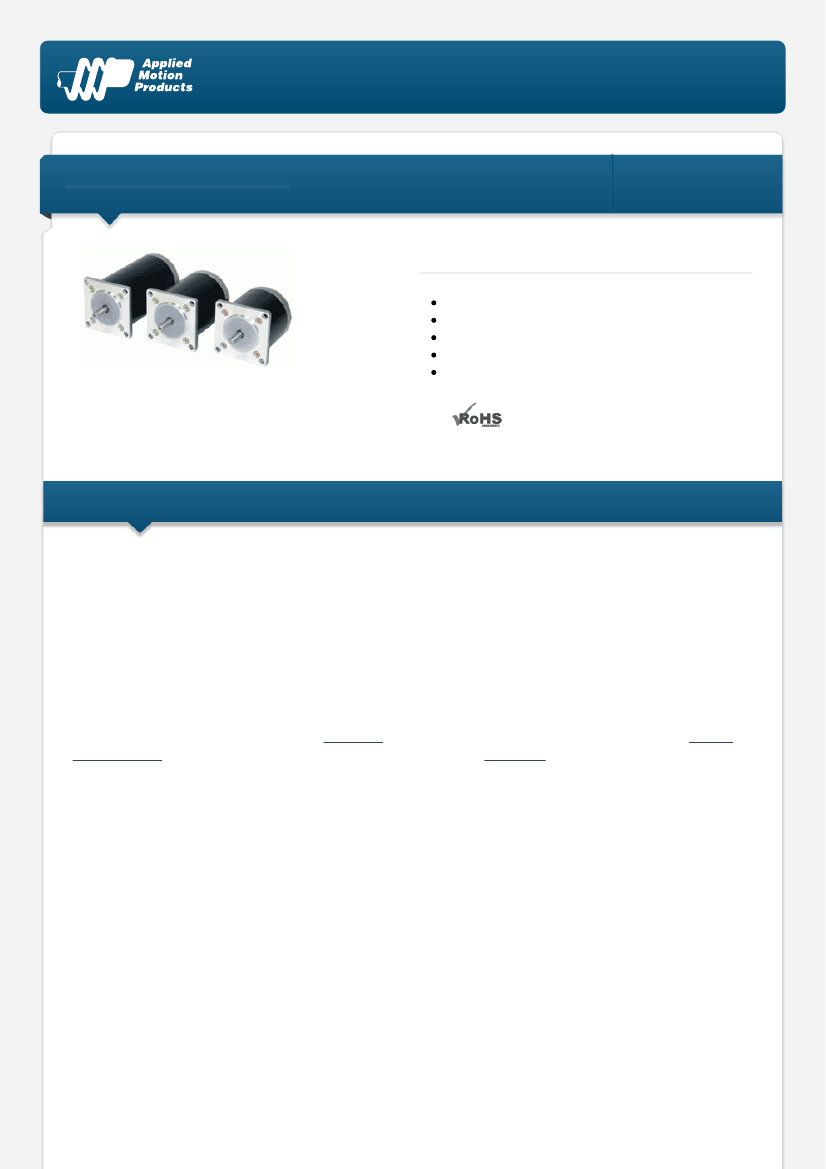

NEMA 23 Step Motor
1pc. - 71.00
50pc. - 71.00
Product Features
Closeout sale in progress
Limited quantity in stock
2-phase hybrid step motor
Standard NEMA 23 dimensions
1.8 degree step angle
Description
Product Description:
The 5023-124 stepper motor with single shaft and 5023-124D stepper motor with double shaft are two-phase
hybrid step motors with a NEMA 23 frame size. The motors are no longer in production (and normally listed as
archived on our website) but are being offered in a closeout sale to clear our inventory. Once the remaining
inventory of these motors is depleted the motors will revert to being listed as archived on our website and will no
longer be available for purchase. This makes the motors a good choice for one-time applications, research &
development work, and hobbyist projects.
For long term projects, please consider the
HT23-601
as a replacement. To view all step motors go to the
browse
stepper motors
page. For additional assistance selecting a step motor
contact us
or call 1-888-976-8610.
Insulation Class:
Maximum Radial Load:
Maximum Thrust
Load:
Shaft Run Out:
Radial Play:
End Play:
Perpendicularity:
Concentricity:
Class B (130 ºC)
15 lbs
25 lbs
0.001 inch T.I.R. max
0.001 inch max w/ 1.0 lb load
0.001 inch max w/ 9.0 lb load
0.003 inches
0.002 inches
Downloads
Family Datasheet:
Datasheet:
2D Drawing:
3D Drawing:
StepMotorWiring-8-lead-striped.pdf
http://s3.amazonaws.com/applied-motion-pdf/5023-124.pdf
5023-124_RevC.pdf
2318102_RevD.pdf
2318102.igs
Pricing
5023-124
Part No. w/ Single Shaft
5023-124D
Part No. w/ Double Shaft
1pc.
25pc.
50pc.
100pc.
$71.00
$97.00
Request a Quote
for 100+ piece pricing.
