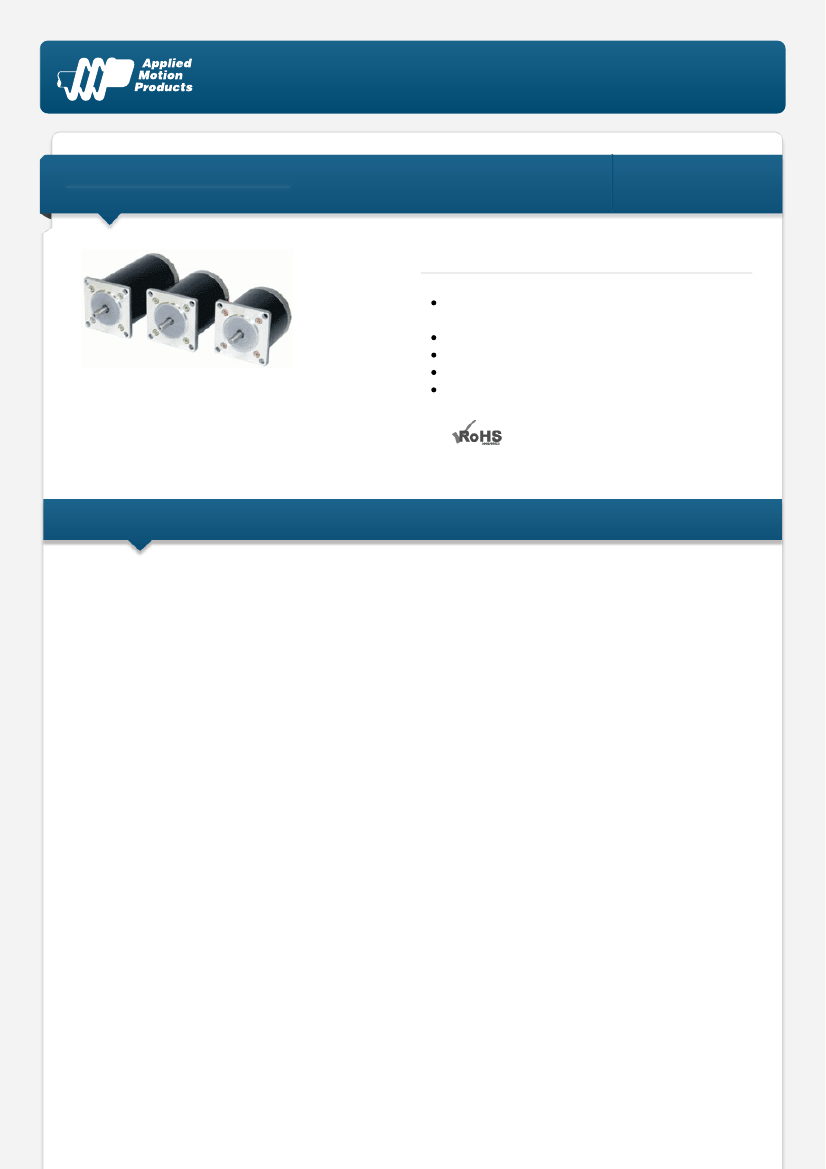

Applied Motion Products, Inc.
404 Westridge Dr.
Watsonville, CA 95076, USA
1-800-525-1609
Tel (831) 761-6555
Fax (831) 761-
6544
Product Datasheet
www.Applied-Motion.com
5023-499
NEMA 23 Step Motor
1pc. - 25.00
50pc. - 25.00
Product Features
Closeout sale in progress (single shaft version
only)
Limited quantity in stock
2-phase hybrid step motor
Standard NEMA 23 dimensions
1.8 degree step angle
Description
Product Description:
The 5023-499 stepper motor with single shaft (*see Note below*) is a two-phase hybrid step motor with a NEMA
23 frame size. The motor is no longer in production (and normally listed as archived on our website) but is being
offered in a closeout sale to clear our inventory. Once the remaining inventory of this motor is depleted the motor
will revert to being listed as archived on our website and will no longer be available for purchase. This makes the
motor a good choice for one-time applications, research & development work, and hobbyist projects.
*Note:* Only the single-shaft version of this motor is available for purchase in the closeout sale. The double-shaft
version, 5023-499D, is not available. All sales are final.
Specifications
Part Number:
Frame Size:
Motor Type:
Motor Length:
Number of Lead
Wires:
Lead Wire
Configuration:
Lead Wire/Cable
Length:
Lead Wire Gauge:
Bipolar Holding
Torque:
Step Angle:
Bipolar Parallel
Current:
Bipolar Parallel
Resistance:
Bipolar Parallel
Inductance:
Rotor Inertia:
Integral Gearhead:
Storage Temperature:
Operating
Temperature:
Insulation Class:
Shaft Run Out:
Radial Play:
End Play:
Perpendicularity:
Concentricity:
5023-499
NEMA 23
Standard torque
2.24 inches
4
flying leads, no connector
18 inches inches
22 AWG
83.0 oz-in
1.8 deg
2.0 A/phase
1.66 Ohms/phase
5.0 mH/phase
2.04E-03 oz-in-sec
2
No
-40 to 70 °C
-20 to 50 °C
Class B (130 ºC)
0.001 inch T.I.R. max
0.001 inch max w/ 1.0 lb load
0.001 inch max w/ 9.0 lb load
0.003 inches
0.002 inches
