BDB02CRLRP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDB02CRLRP

BDB02CRLRP: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size94KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

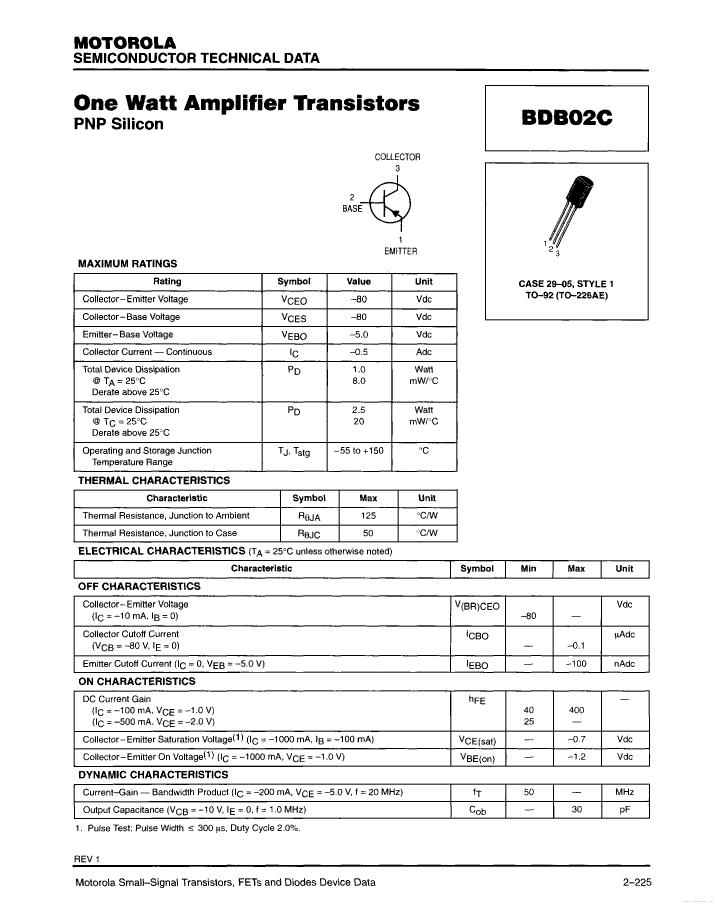

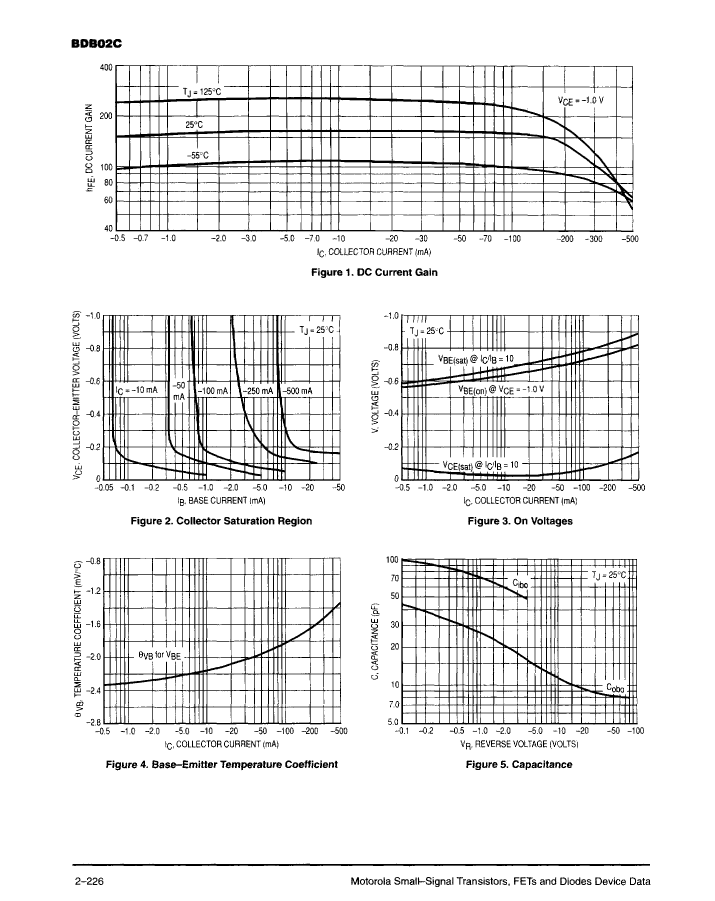

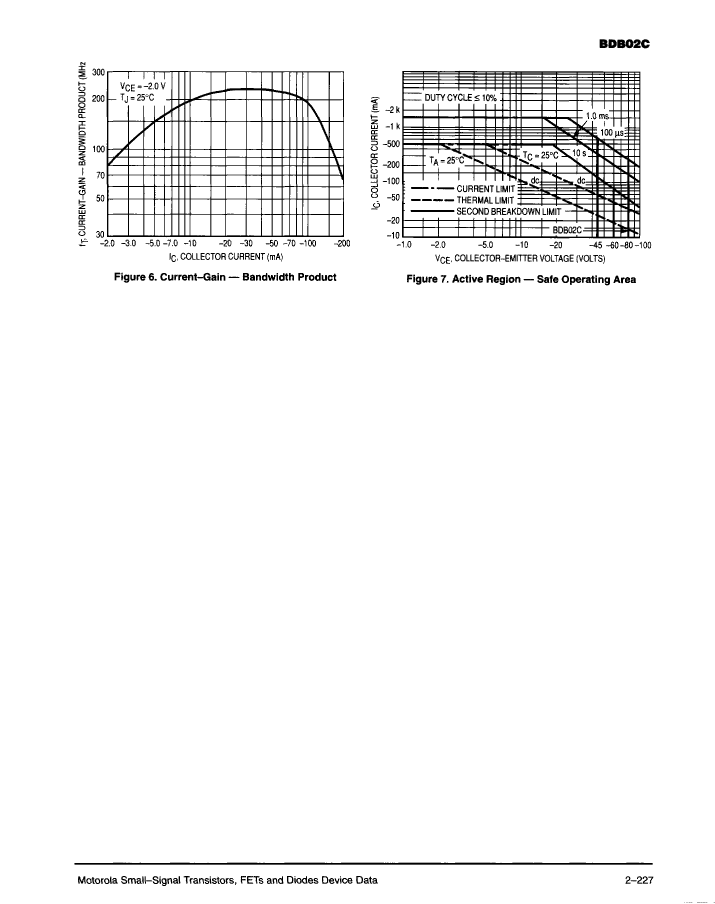

BDB02CRLRP Overview

Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92

BDB02CRLRP Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-based maximum capacity	30 pF
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	25
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power consumption environment	2.5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	50 MHz
VCEsat-Max	0.7 V

Preview

Download Datasheet

View All

BDB02CRLRP Related Products

	BDB02CRLRP	BDB02CRLRE	BDB02CRL1	BDB02CRLRA	BDB02CRLRF	BDB02CRLRB	BDB02CRL	BDB02CZL1	BDB02CRLRM
Description	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-based maximum capacity	30 pF	30 pF	30 pF	30 pF	30 pF	30 pF	30 pF	30 pF	30 pF
Collector-emitter maximum voltage	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	25	25	25	25	25	25	25	25	25
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power consumption environment	2.5 W	2.5 W	2.5 W	2.5 W	2.5 W	2.5 W	2.5 W	2.5 W	2.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
VCEsat-Max	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V
Is Samacsys	-	N	N	N	N	N	N	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-
