WR-28 Flexible Straight Waveguide Section 36 Inch Length
with UG-599/U Flange Operating from 26.5 GHz to 40 GHz
TECHNICAL DATA SHEET
PE-W28SF005-36
The PE-W28SF005-36 is part of Pasternack’s family of flexible, seamless waveguides which operates in the 26.5 to 40 GHz
range. The waveguide body is made of silver plated brass. It can be bent in both the E and H planes without impairing VSWR
or attenuation. The waveguide is covered by a neoprene jacket which protects the waveguide and provides mechanical sup-
port.
Features
•
WR-28 waveguide
•
Flexes in both the E and H plane
•
26.5 GHz to 40 GHz Frequency Range
•
Brass flanges with a silver plated brass body
•
Neoprene sleeve provides added protection and me-
chanical support
•
Microwave Radio
•
Eliminates installation problems
caused by misalignment.
•
Pressurized waveguide systems
•
Provides vibration isolation
Applications
•
Allows expansion/contraction
due to thermal issues.
• Test Benches
Electrical Specifications
Description
Frequency Range
VSWR
Insertion Loss
.
Minimum
26.5
Typical
1.2:1
1.47
Maximum
40
Units
GHz
dB

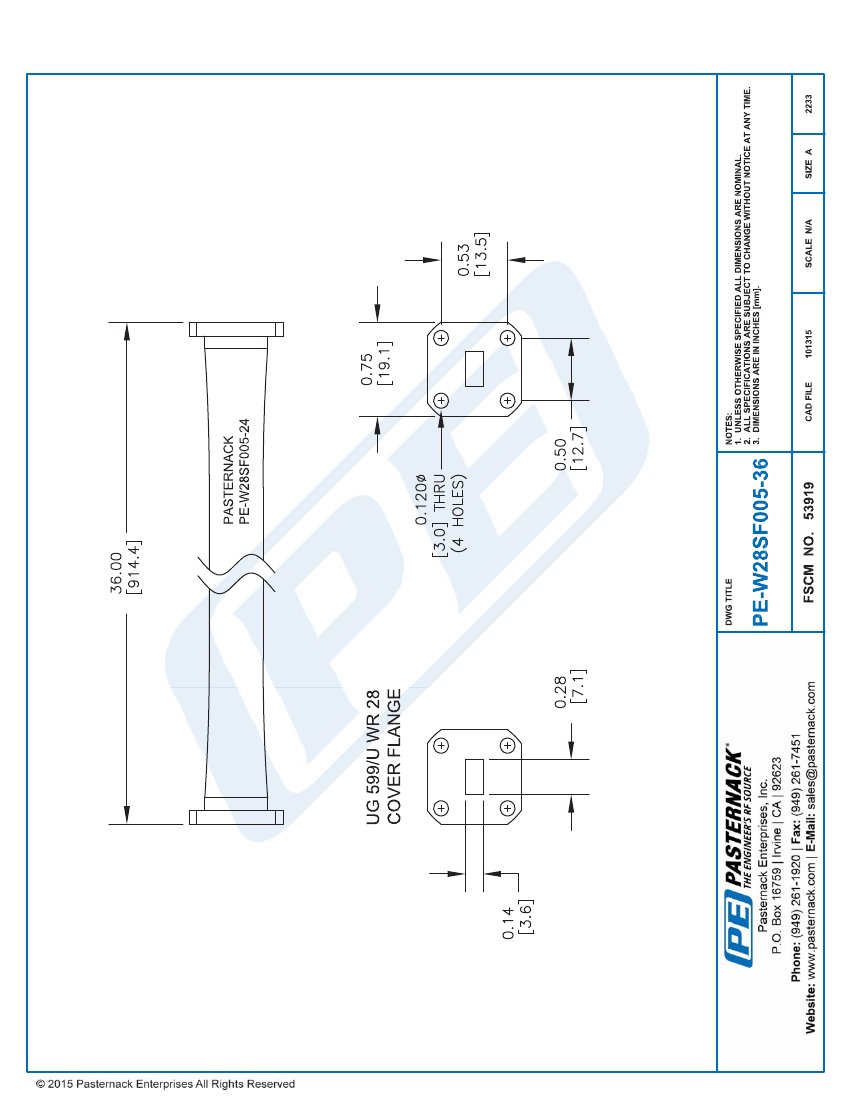

Mechanical Specifications
Waveguide Size
Waveguide Design
Section Length
E-Plane Minimum Bend Radius, One Time
H-Plane Minimum Bend Radius, One Time
Maximum Operating Pressure
Description
Interface
Material
Plating
Color
...
WR-28
Flexible
36 in [914.4 mm]
0.39 in [9.91 mm]
0.59 in [14.99 mm]
45 psig
Waveguide
WR-28
Copper
Silver
Gold
Black
Gold
Flange 1
UG-599/U
Brass
Flange 2
UG-599/U
Brass
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant
12/17/2014
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: WR-28 Flexible Straight Waveguide Section 36 Inch Length with UG-599/U Flange Operating
from 26.5 GHz to 40 GHz
PE-W28SF005-36
PE-W28SF005-36 REV 1.0
1
WR-28 Flexible Straight Waveguide Section 36 Inch Length
with UG-599/U Flange Operating from 26.5 GHz to 40 GHz
TECHNICAL DATA SHEET
Notes:
•
Values at +25 °C, sea level

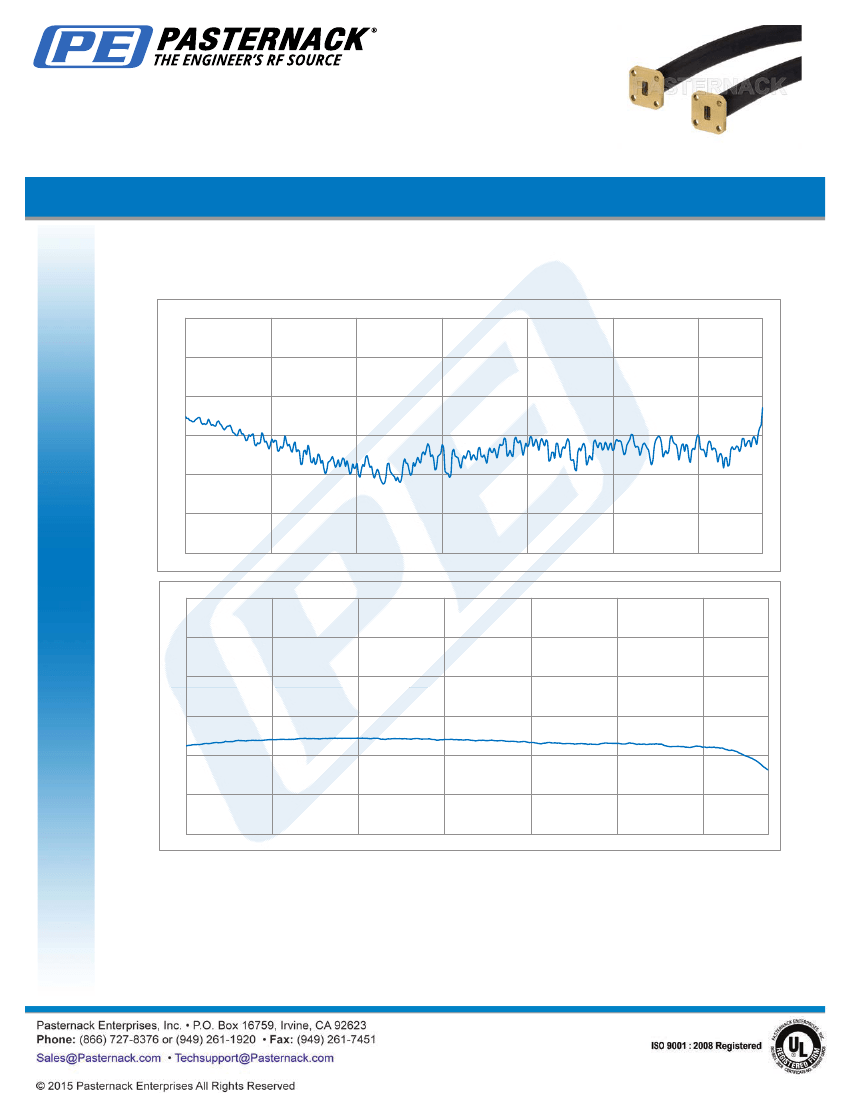

Power Data
0 dB
0
PE-W28SF005-36
Return loss
-10
-20
-30
-40
-50
-60
26.5
28.5
30.5
32.5
34.5
36.5
38.5
40 GHz
0.00
0 dB
Insertion Loss
-0.50
-1.00
-1.50
-2.00
-2.50
-3.00
26.5
28.5
30.5
32.5
34.5
36.5
38.5
40 GHz
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-28 Flexible Straight Waveguide Section 36 Inch Length with UG-599/U Flange Operating
from 26.5 GHz to 40 GHz
PE-W28SF005-36
PE-W28SF005-36 REV 1.0
2
WR-28 Flexible Straight Waveguide Section 36 Inch Length
with UG-599/U Flange Operating from 26.5 GHz to 40 GHz
TECHNICAL DATA SHEET
PE-W28SF005-36
WR-28 Flexible Straight Waveguide Section 36 Inch Length with UG-599/U Flange Operating from 26.5 GHz to 40 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-28 Flexible Straight Waveguide Section 36 Inch Length with UG-599/U Flange Operating
from 26.5 GHz to 40 GHz
PE-W28SF005-36
URL:
http://www.pasternack.com/wr-28-straight-waveguide-section-ug-599-26.5-40-ghz-pe-w28sf005-36-p.aspx
PE-W28SF005-36 REV 1.0
3
