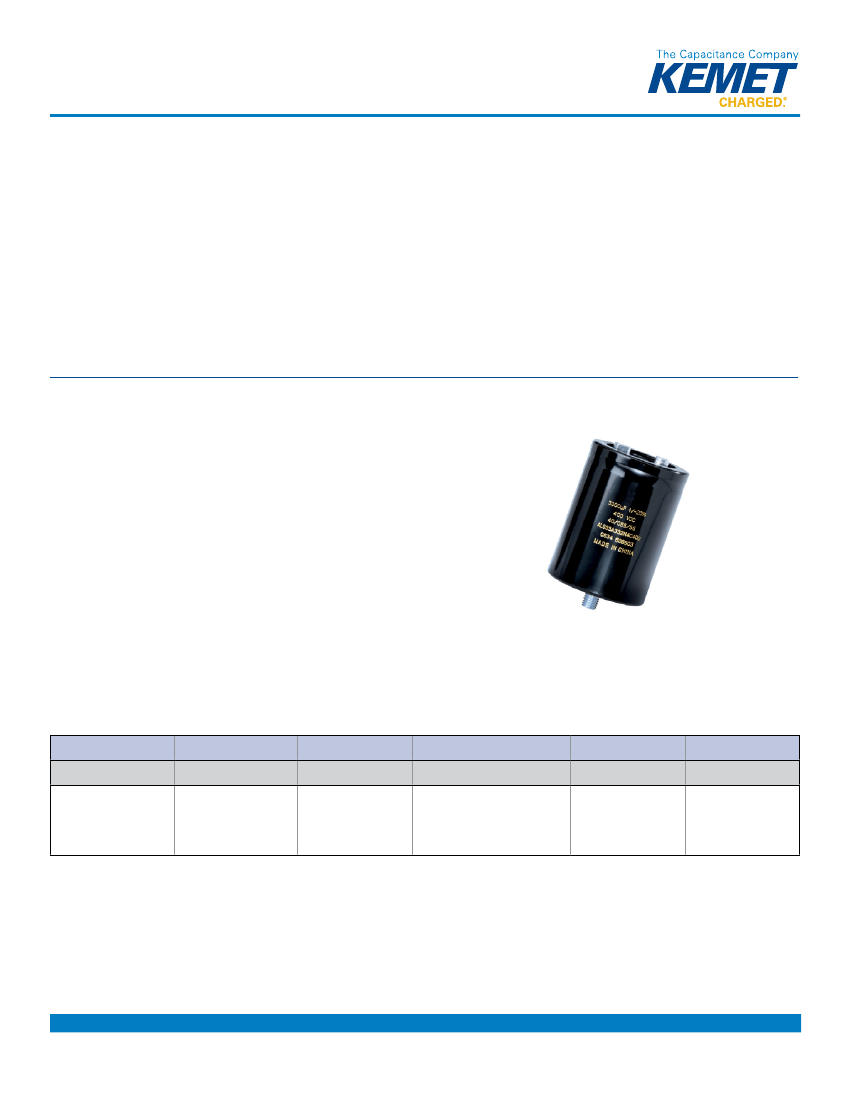

Screw Terminal Aluminum Electrolytic Capacitors
ALS32/33 Series, +85°C
Overview
Applications
KEMET's ALS32/33 Series of capacitors is designed for industrial
and commercial applications such as switch mode power
supplies (SMPS), uninterruptible power supply (UPS) systems,
variable speed drives, frequency inverters, welding equipment,
and energy storage in pulse discharge applications.
KEMET's ALS32/33 Series of screw terminal capacitors meets
the requirements of the Asian market. This range offers high CV
per unit volume coupled with high ripple currents and long-life
performance.
Benefits
•
•
•
•
•
Case sizes and terminals for the Asian market
Long life, up to 20,000 hours at +85°C (V
R
, I
R
applied)
High ripple current
Excellent surge voltage capability
Optimized designs available upon request
Part Number System
ALS3
Series
Computer Grade
Aluminum Electrolytic
2
Stud Option
2 = Plain Can
3 = Threaded mounting
stud
A
Termination
See Termination
Table
391
Capacitance Code (µF)
First 2 digits equals first 2
significant figures, 3rd digit is
the number of additional zeros.
D2C
Size Code
See Dimension Table
350
Voltage (VDC)
350 = 350
400 = 400
450 = 450
500 = 500
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4032_ALS32_33 • 4/15/2013
1
Screw Terminal Aluminum Electrolytic Capacitors – ALS32/33 Series, +85°C
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operational Temperature Range
Storage Temperature Range
Capacitance Tolerance
220 – 18,000 µF
350 – 500 VDC
-40 to +85°C
-55 to +85°C
±20% at 100 Hz / +20°C
D (mm)
36
Operational Lifetime
51
63.5
77.90
End of Life Requirement
Shelf Life
Leakage Current
Rated Voltage and Ripple Current
at +85°C (hours)
11,000
18,000
19,000
20,000
Rated Voltage at +85°C (hours)
22,000
36,000
38,000
40,000
Performance Characteristics
∆ C/C < ±10%, ESR < 2 x initial ESR value, IL < initial specified limit
2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
I = 0.003 CV or 6,000 (µA, whichever is smaller)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three 2-hour
sessions at 10 – 55 Hz
(Capacitor clamped by body).
0.35 mm displacement amplitude
or 5 g maximum acceleration.
Vibration applied for three 0.5
hour sessions at 10 – 55 Hz
(Capacitor clamped by body).
Requirements
Case Length < 220 mm
Vibration Test Specifications
Case Length ≥ 220 mm
No leakage of electrolyte or other
visible damage. Deviations in
capacitance and tanδ from initial
measurements must not exceed:
∆ C/C < 5%
Standards
IEC 60384–4 long life grade 40/85/56
Surge Voltage
Condition
≤ 30s Surge followed by a no load
period of 330s, 1,000 cycles at +85°C
≤ 500 ms surge, 100 cycles at 20°C,
occurring randomly throughout the life
of the capacitor
Voltage (VDC)
350
385
500
400
440
520
450
495
550
500
550
600
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4032_ALS32_33 • 4/15/2013
2
Screw Terminal Aluminum Electrolytic Capacitors – ALS32/33 Series, +85°C
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+85°C
5,000 hours
Rated ripple current in specified table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
≤ 160 V
> 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
Dimensions – Millimeters
Reference
Size (mm)
36 x 55
36 X 68
36 x 80
36 x 93
36 x 106
36 x 119
36 x 131
36 x 144
51 x 55
51 x 68
51 x 80
51 x 93
51 x 106
51 x 115
51 x 119
51 x 131
Dimensions in mm
Size Code
D2C
D2L
D3C
D3L
D4C
D4L
D5C
D5L
K2C
K2L
K3C
K3L
K4C
KJA
K4L
K5C
D
±0.8
34.9
34.9
34.9
34.9
34.9
34.9
34.9
34.9
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
L
±1.6
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
114.3
117.5
130.2
LT
±1
61.5
74.5
87.5
100.5
112.5
125.5
138.5
151.5
60.0
73.0
86.0
98.0
111.0
119.0
124.0
136.0
S
±0.5
12.8
12.8
12.8
12.8
12.8
12.8
12.8
12.8
22.2
22.2
22.2
22.2
22.2
22.2
22.2
22.2
T
±0.8
7.14
7.14
7.14
7.14
7.14
7.14
7.14
7.14
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
V
Nominal
8
8
8
8
8
8
8
8
13.7
13.7
13.7
13.7
13.7
13.7
13.7
13.7
Mounting
Stud (M x H)
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
Mounting Clip
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V3/H2/UTE2736
V4/UTE2737
V4/UTE2737
V4/UTE2737
V4/UTE2737
V4/UTE2737
V4/UTE2737
V4/UTE2737
V4/UTE2737
Note: Add 0.4 mm to D (1.1 mm when D = 88.9) and 1.1 mm to L for sleeving. LT listed is for A-type termination code.
Information for other termination codes is available upon request.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4032_ALS32_33 • 4/15/2013
3
Screw Terminal Aluminum Electrolytic Capacitors – ALS32/33 Series, +85°C
Dimensions – Millimeters cont'd
Reference
Size (mm)
51 x 144
63.5 x 80
63.5 x 93
63.5 x 106
63.5 x 115
63.5 x 119
63.5 x 131
63.5 x 144
77 x 93
77 x 106
77 x 115
77 x 119
77 x 131
77 x 144
77 x 150
77 x 170
77 x 194
77 x 220
90 x 150
90 x 170
90 x 194
90 x 220
Dimensions in mm
Size Code
K5L
L3C
L3L
L4C
LJA
L4L
L5C
L5L
N3L
N4C
NJA
N4L
N5C
N5L
N5R
N6L
N7L
N8L
Q5R
Q6L
Q7L
Q8L
D
±0.8
50.8
63.5
63.5
63.5
63.5
63.5
63.5
63.5
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
88.9
88.9
88.9
88.9
L
±1.6
142.9
79.4
92.1
104.8
114.3
117.5
130.2
142.9
92.1
104.8
114.3
117.5
130.2
142.9
149.2
168.3
193.7
219.1
149.2
168.3
193.7
219.1
LT
±1
149.0
84.0
97.0
110.0
119.0
123.0
135.0
148.0
97.0
110.0
119.0
123.0
135.0
148.0
154.0
173.0
198.0
224.0
154.0
173.0
198.0
224.0
S
±0.5
22.2
28.5
28.5
28.5
28.5
28.5
28.5
28.5
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
T
±0.8
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
V
Nominal
13.7
15.8
15.8
15.8
15.8
15.8
15.8
15.8
19
19
19
19
19
19
19
19
19
19
25
25
25
25
Mounting
Stud (M x H)
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
Mounting Clip
V4/UTE2737
V8
V8
V8
V8
V8
V8
V8
V11
V11
V11
V11
V11
V11
V11
V11
V11
V11
V90
V90
V90
V90
Note: Add 0.4 mm to D (1.1 mm when D = 88.9) and 1.1 mm to L for sleeving. LT listed is for A-type termination code.
Information for other termination codes is available upon request.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4032_ALS32_33 • 4/15/2013
4
Screw Terminal Aluminum Electrolytic Capacitors – ALS32/33 Series, +85°C
Termination Tables
Termination Code
Diameter (mm)
34.9
50.8
63.5
76.2
88.9
A
•
•
•
•
•
Termination
Style
Round
Oval
Round
C
•
•
•
T
± 0.5
Standard Termination Option
7.14
5.5
Other Termination Options
5.5
Termination
Code
A (D = 36)
A (D > 36)
C
Thread
DT
± 0.5
8
13
13
Thread Depth (TD)
Minimum
10
10
10
Z
Nominal
M5
M5
M6
10
Dimensions in mm
LT
L
T
(From Deck)
V
TD
Termination codes:
A
Oval
Safety vent
Termination codes:
A (D = 34.9), C
Round
D
Optional Mounting Stud
(M x H)
S
DT
V
TD
DT
Insulated Sleeve
Z
Polarity Mark
Case Polarity
Due to the presence of electrolyte in the capacitor, the aluminum can and stud mounting will essentially be at the same polarity as the
negative terminal. We recommend that the stud and can be insulated (see accessories for insulating nuts).
Terminations
Aluminum inserts with M5 threads as standard, maximum torque 2NM. Optional M6 threaded inserts have a maximum torque 4NM.
Maximum torque for stud mounting M8:4NM and M12:8NM.
