IDT101596RR12V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT101596RR12V

IDT101596RR12V: DescriptionStandard SRAM, 32KX9, 12ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48; Categorystorage storage; File Size308KB，10 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT101596RR12V Overview

Standard SRAM, 32KX9, 12ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48

IDT101596RR12V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SSOP
package instruction	0.300 INCH, PLASTIC, SSOP-48
Contacts	48
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.B
Maximum access time	12 ns
I/O type	SEPARATE
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	15.875 mm
memory density	294912 bit
Memory IC Type	STANDARD SRAM
memory width	9
Humidity sensitivity level	1
Negative supply voltage rating	-5.2 V
Number of functions	1
Number of terminals	48
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
Maximum operating temperature	75 °C
Minimum operating temperature
organize	32KX9
Output characteristics	OPEN-EMITTER
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
power supply	-5.2 V
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum slew rate	0.28 mA
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm

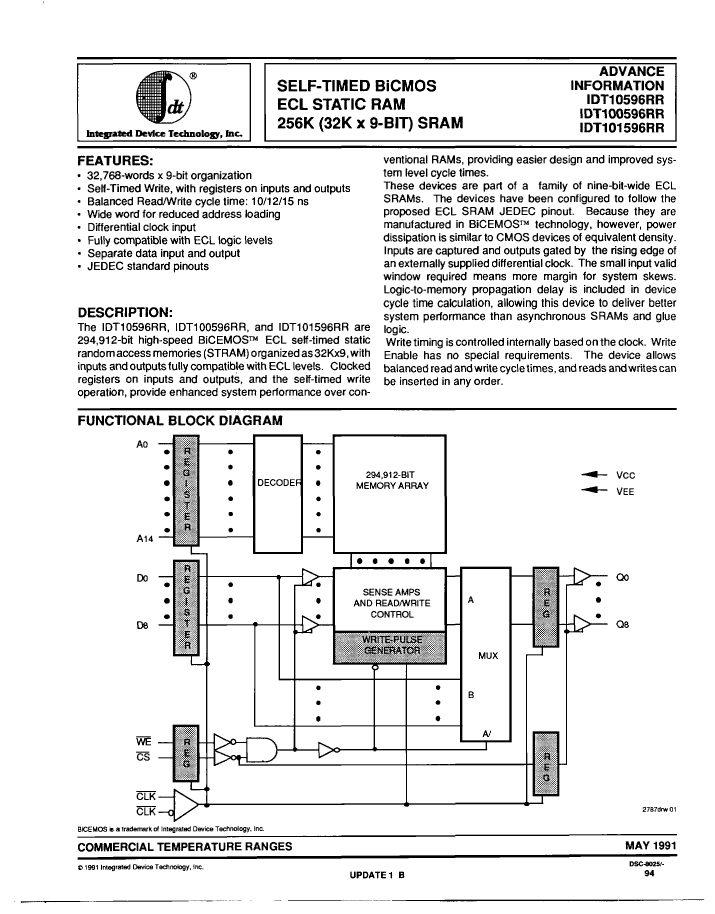

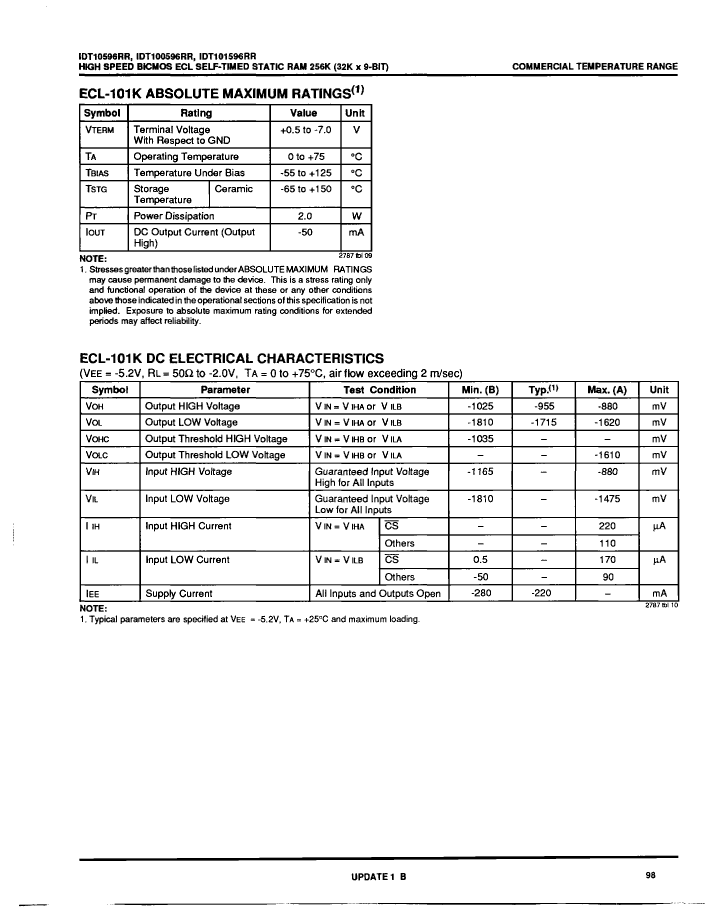

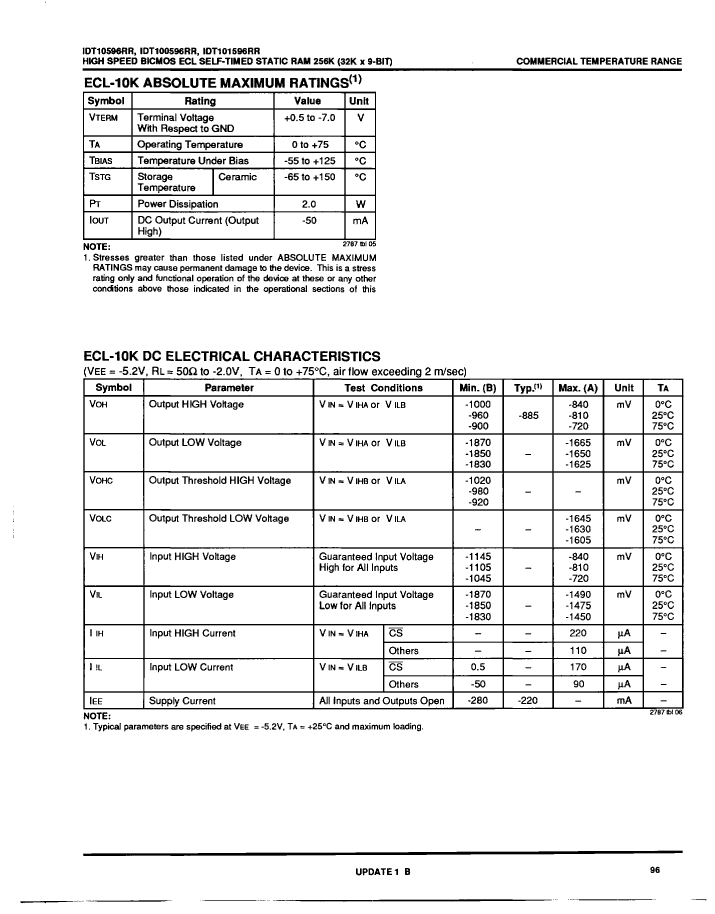

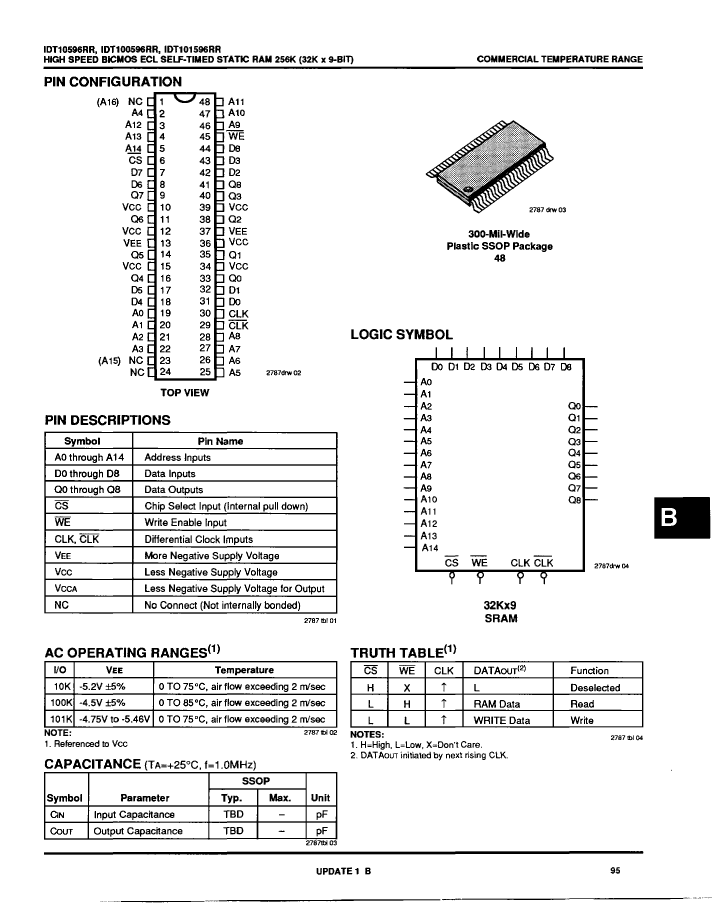

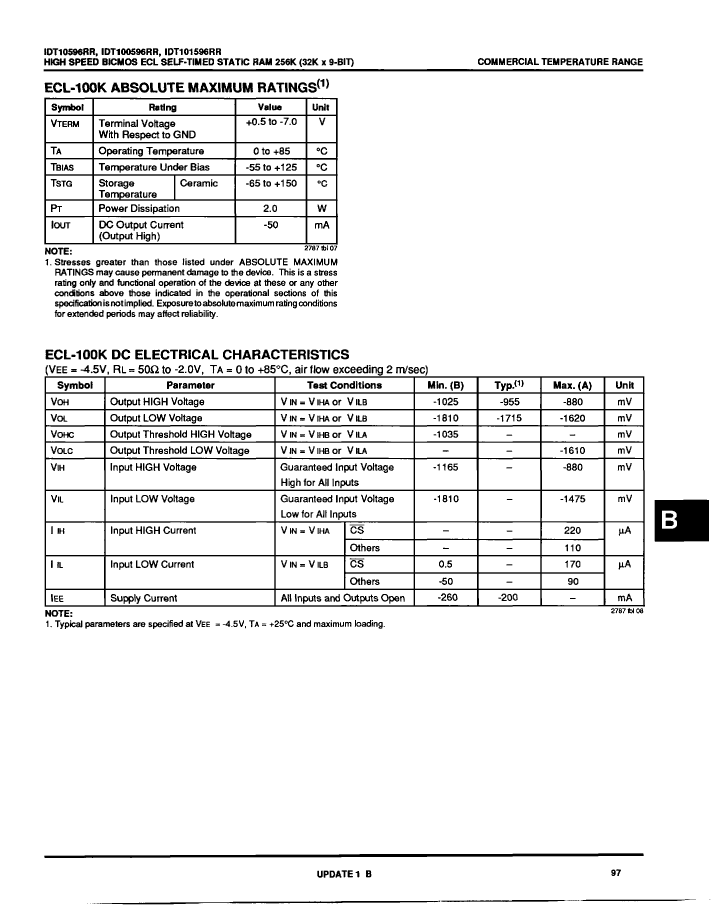

Preview

Download Datasheet

View All

IDT101596RR12V Related Products

	IDT101596RR12V	IDT100596RR10V	2907681	IDT101596RR10V	IDT10596RR15V	IDT101596RR15V	IDT10596RR10V	IDT100596RR15V	IDT10596RR12V
Description	Standard SRAM, 32KX9, 12ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 10ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Thermal magnetic UL 489 miniature circuit breakers	Standard SRAM, 32KX9, 10ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 15ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 15ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 10ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 15ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Standard SRAM, 32KX9, 12ns, BICMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SSOP	SSOP	-	SSOP	SSOP	SSOP	SSOP	SSOP	SSOP
package instruction	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48	-	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48	0.300 INCH, PLASTIC, SSOP-48
Contacts	48	48	-	48	48	48	48	48	48
Reach Compliance Code	not_compliant	not_compliant	-	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.B	3A991.B.2.B	-	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	12 ns	10 ns	-	10 ns	15 ns	15 ns	10 ns	15 ns	12 ns
I/O type	SEPARATE	SEPARATE	-	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-PDSO-G48	R-PDSO-G48	-	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	e0
length	15.875 mm	15.875 mm	-	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm
memory density	294912 bit	294912 bit	-	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	-	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	9	9	-	9	9	9	9	9	9
Humidity sensitivity level	1	1	-	1	1	1	1	1	1
Negative supply voltage rating	-5.2 V	-4.5 V	-	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-4.5 V	-5.2 V
Number of functions	1	1	-	1	1	1	1	1	1
Number of terminals	48	48	-	48	48	48	48	48	48
word count	32768 words	32768 words	-	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	-	32000	32000	32000	32000	32000	32000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	75 °C	85 °C	-	75 °C	75 °C	75 °C	75 °C	85 °C	75 °C
organize	32KX9	32KX9	-	32KX9	32KX9	32KX9	32KX9	32KX9	32KX9
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	-	SSOP	SSOP	SSOP	SSOP	SSOP	SSOP
Encapsulate equivalent code	SSOP48,.4	SSOP48,.4	-	SSOP48,.4	SSOP48,.4	SSOP48,.4	SSOP48,.4	SSOP48,.4	SSOP48,.4
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	-5.2 V	-4.5 V	-	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-4.5 V	-5.2 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	2.794 mm	-	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm
Maximum slew rate	0.28 mA	0.26 mA	-	0.28 mA	0.28 mA	0.28 mA	0.28 mA	0.26 mA	0.28 mA
surface mount	YES	YES	-	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	-	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL EXTENDED	OTHER	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	OTHER	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	-	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	-	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	-	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
