PE-TC195 Series Phase Stable Test Cable SMA
Male to SMA Male to 18 GHz ,RoHS
RF Cable Assemblies Technical Data Sheet
Configuration
• Connector 1: SMA Male
• Connector 2: SMA Male
• Cable Type: PE-TC195
PE3TC0101
Features
•
Phase and Amplitude stability with flexure
•
Small Diameter Lighter weight lower profile for high den-
sity test applications
•
Phase change with flexure +/-2° to 18 GHz
•
Excellent for multi-port test equipment
•
Very flexible and durable cable with a min bend radius of
1 inch
•
Excellent VSWR and Insertion Loss
•
Extra strain relief for extended connector body with boot-
ing enhance stability and longevity
•
Each Serialized assembly come with matching Test data
• 5,000 mating cycles when properly matted
•
IN STOCK and ready to ship
Applications
.
•
Automated RF Test Stations
•
General Purpose Lab Testing
•
High Connection Density Lab and
Production testing
Description
Pasternack’s high performance PE-TC195 series Test Cables are designed to allow customers to perform repeatable accurate
measurements. Because these cables are phase stable under flexure, +/- 2° at 18 GHz, they are an excellent option for testing
where movement will occur during testing. The PE-TC195 test cables have low Insertion Loss and low VSWR in addition to
having excellent phase stability properties. The rugged design provides for up to 5,000 mattings cycles with proper care. The
smaller diameter coax allows for high flexibility, lower profile and a lighter weight test cable. The PE-TC195 series test cables
are an excellent choice for use in precision high density test environments
Electrical Specifications
Description
Frequency Range
VSWR
Velocity of Propagation
RF Shielding
Capacitance
Phase Stability with Flexure
100
29.4 [96.46]
±2
70
Minimum
DC
Typical
Maximum
18
1.25:1
Units
GHz
%
dB
pF/ft [pF/m]
Degrees
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz, RoHS
PE3TC0101
PE3TC0101 REV 1.0
1
PE-TC195 Series Phase Stable Test Cable SMA
Male to SMA Male to 18 GHz ,RoHS
RF Cable Assemblies Technical Data Sheet
.
PE3TC0101
Specifications by Frequency
Description
Frequency
Insertion Loss (Max.)
VSWR (Max.)
Power Handling (Max.)
.
F1
3
0.22
[0.72]
1.25:1
F2
12
0.52
[1.71]
1.25:1
F3
18
0.68
[2.23]
1.25:1
70
F4
F5
Units
GHz
dB/ft
[dB/m]
Watts
Mechanical Specifications
Cable Assembly
.
One Time Minimum Bend Radius
Cable
Cable Type
Impedance
Inner Conductor Type
Inner Conductor Material and Plating
Dielectric Type
Number of Shields
Shield Layer 1
Shield Layer 2
Shield Layer 3
Jacket Material
Jacket Diameter
Connectors
Description
Type
Impedance
Connection Method
Contact Material and Plating
Dielectric Type
Coupling Nut Material and Plating
Body Material and Plating
.
1 in [25.4 mm]
PE-TC195
50 Ohms
Solid
Copper, Silver
PTFE
3
Silver Plated Copper Braid
Silver Plated Copper Tape
Silver Plated Copper Braid
FEP
0.195 in [4.95 mm]
Connector 1
SMA Male
50 Ohms
Standard
Beryllium Copper, Gold
PTFE
Passivated Stainless Steel
Passivated Stainless Steel
Connector 2
SMA Male
50 Ohms
Standard
Beryllium Copper, Gold
PTFE
Passivated Stainless Steel
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz, RoHS
PE3TC0101
PE3TC0101 REV 1.0
2
PE-TC195 Series Phase Stable Test Cable SMA
Male to SMA Male to 18 GHz ,RoHS
RF Cable Assemblies Technical Data Sheet
Environmental Specifications
Temperature
Operating Range
-65 to +125 deg C
PE3TC0101
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
•
Values at 25°C, sea level.

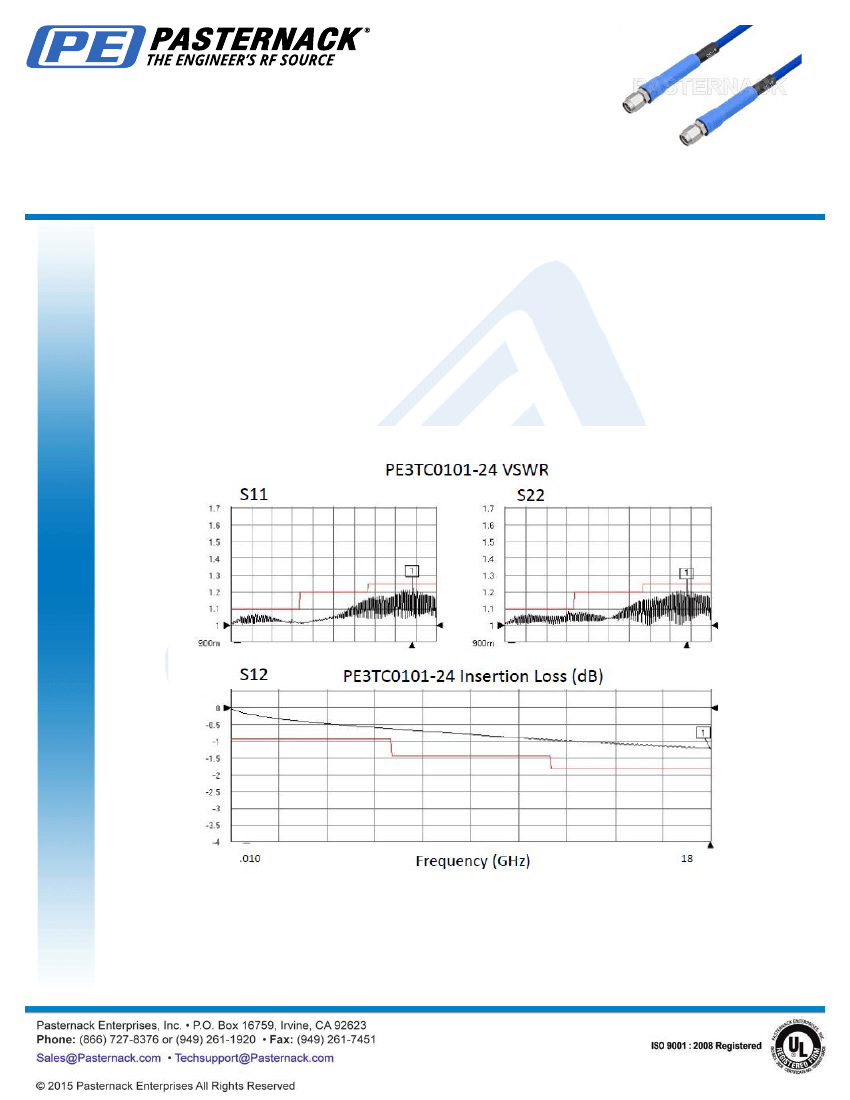

Typical Performance Data
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz, RoHS
PE3TC0101
PE3TC0101 REV 1.0
3
PE-TC195 Series Phase Stable Test Cable SMA
Male to SMA Male to 18 GHz ,RoHS
RF Cable Assemblies Technical Data Sheet
How to Order
Part Number Configuration:
PE3TC0101
PE3TC0101
|
|
-
xx
|
|
uu
|
Unit of Measure:
cm = Centimeters
<blank> = Inches
Length
Base Number
|
|
Example:
PE3TC0101-12 = 12 inches long cable
PE3TC0101-100cm = 100 cm long cable
|
|
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 18 GHz ,RoHS from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz, RoHS
PE3TC0101
URL:
http://www.pasternack.com/sma-male-sma-male-.80-cable-assembly-pe3tc0101-p.aspx
PE3TC0101 REV 1.0
4
PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 18 GHz ,RoHS
PE3TC0101

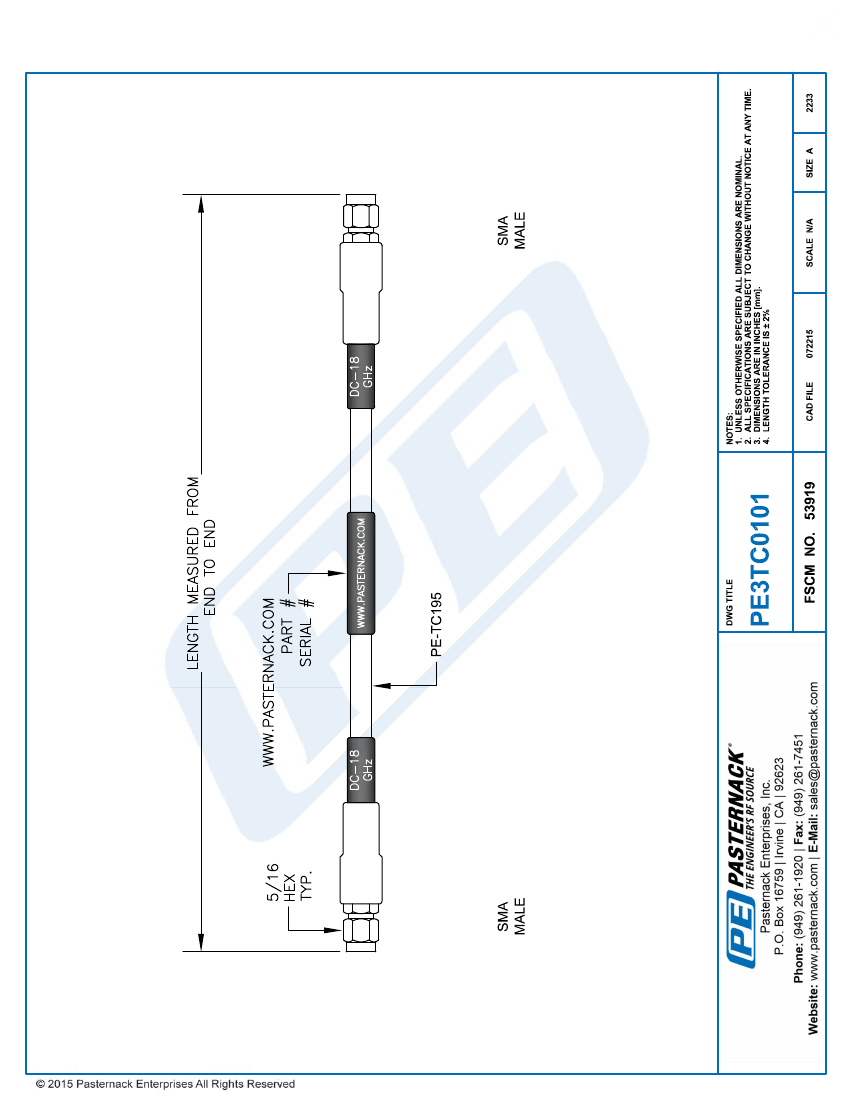

CAD Drawing
PE3TC0101 REV 1.0
5
