8602 NAFI
Description
Applications
Military airborne computer

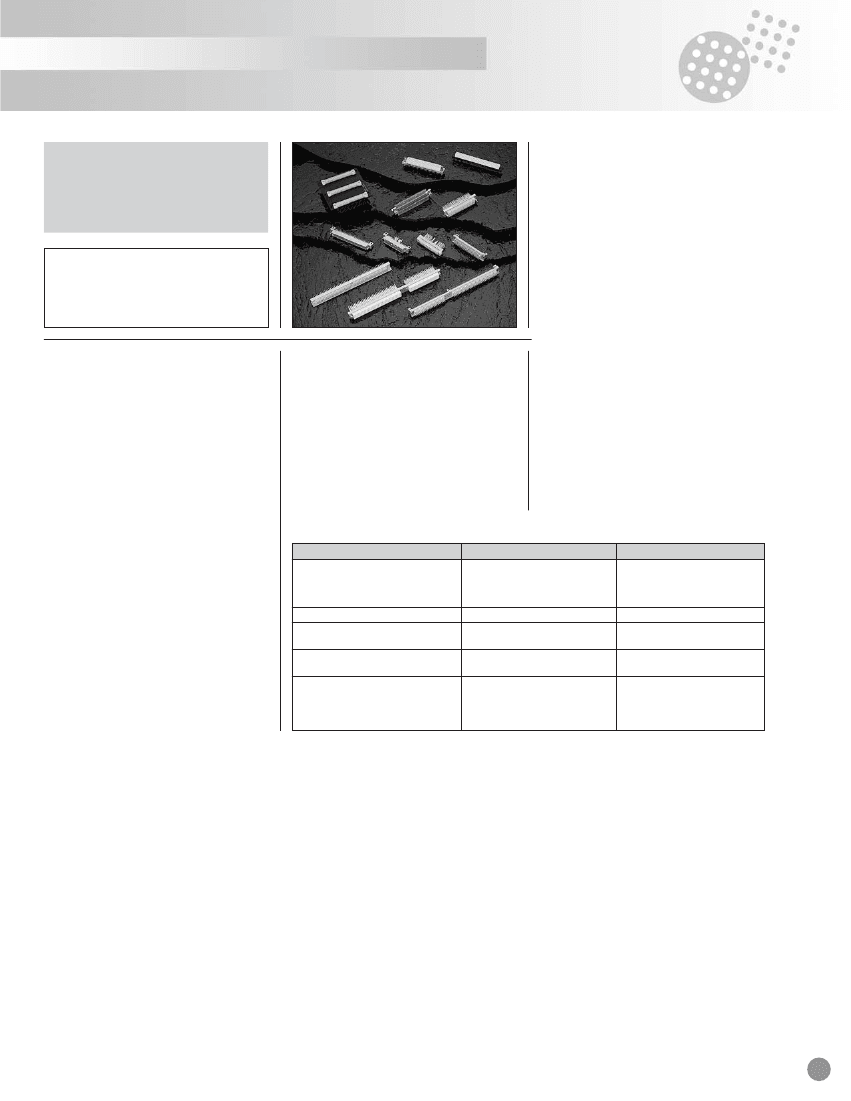

• NAFI board-mounted connectors are used as
interface between daughter-boards and back
planes or between two adjacent daughter-
boards.
• The connector support is of light alloy. It is dril-
led to a 2.54 x 2.54 mm (.100 x .100)
matrix accommodating contacts housed in
modular insulators with one, two or four
contacts. On assembly, the blocks form inter-
connections of different length and width.
• The daughter board is generally associated
with a male header. The male header is an
aluminum alloy extrusion holding blade
contacts for solder angle and straight spill ter-
mination.
method 1002
method 1003
method 1001
method 2004
method 2005
• The system is highly flexible.
Aluminum alloy is robust, light, simple and
may be machined accurately.
• The association of blade and tuning fork
contacts is a simple design, highly efficient
under severe vibration.
• Contact numbers : from 10 to 300.
Standards
According to MIL-C 28754
and NAVORD WS 6157
Characteristics
Mechanical
• Contact insertion and extraction forces
per contact pair :
- mating
≤
0.45 N average
- unmating
> 0.25 N
• Block retention in support
≥
35 N
• Contact retention in insulator
≥
35 N
• Contact endurance :
mating/unmating cycles
≥
500
Physical
As per MIL-C 28754
• Tests as per MIL-C 1344
- damp heat
- thermal shock
- salt spray
- physical shock
- vibration
• Working temperature :
- polyimide insulator
series MIL-C 28754
- 55°C + 105°C
Electrical
• Signal contacts :
- maximum current rating per contact
3A
- DWV
1000 V
- insulation resistance
≥
5000 MΩ
- contact resistance
≤
6,7 mΩ
• Coaxial contacts
for cable impedance
50
Ω,
75
Ω,
95
Ω
• Power contacts
current rating
10 A, 15 A, 20 A
• Fibre optic contact
attenuation at 850 nm = 1,5 dB typical
Materials and finishes
components
Modular insulators
materials
• polyimide 6 x 6 self
extinguishing natural colour
brass
copper alloy
aluminum alloy
finishes
Male contacts
Female contacts
Extruded supports and back planes
Polarizing keys
• non removable male
• removable male
• non removable female
• removable female
• active area : gold over nickel
• termination area :
tinlead over nickel
• alodine 1200 clear chromate
• optional blackanodized
stainless steel
nickel copper
aluminum alloy
nickel copper
387
1
8602 NAFI
Ordering information
basic series
number of contacts
connector type
male
with stand off
female
without stand off
31
33
35
8602 -
100
- 22 - 13 - 5 - 10
26 -
000
2 rows
22
11
3 rows
24
13
4 rows
26
15
contact termination
13
14
15
25
27
XX
-
-
-
-
-
-
angle spill Pwb (.063)
straight spill Pwb (.063) to (.126)
2 wire wraps
female only contacts
3 wire wraps
flex cable spill
others please consult us
}
contact plating
polarization
Upside
termination
5 -
standard
8 -
MIL-C 28754
-
fixed key guides
Coding see table below
End A
End B
-
key shape
-
key shape
Coding example
10 -
End A : male D shape key orientation
End B
End A
End A
26 -
End B : male V shape key orientation
4040 -
removable key guides
Example : 8602 - 100 - 22 - 13 - 5 -
4040
- 000
suffix
000 -
standard
031 -
DIN 41612 interchangeable connector
-
others please consult us
008 -
with fixing version

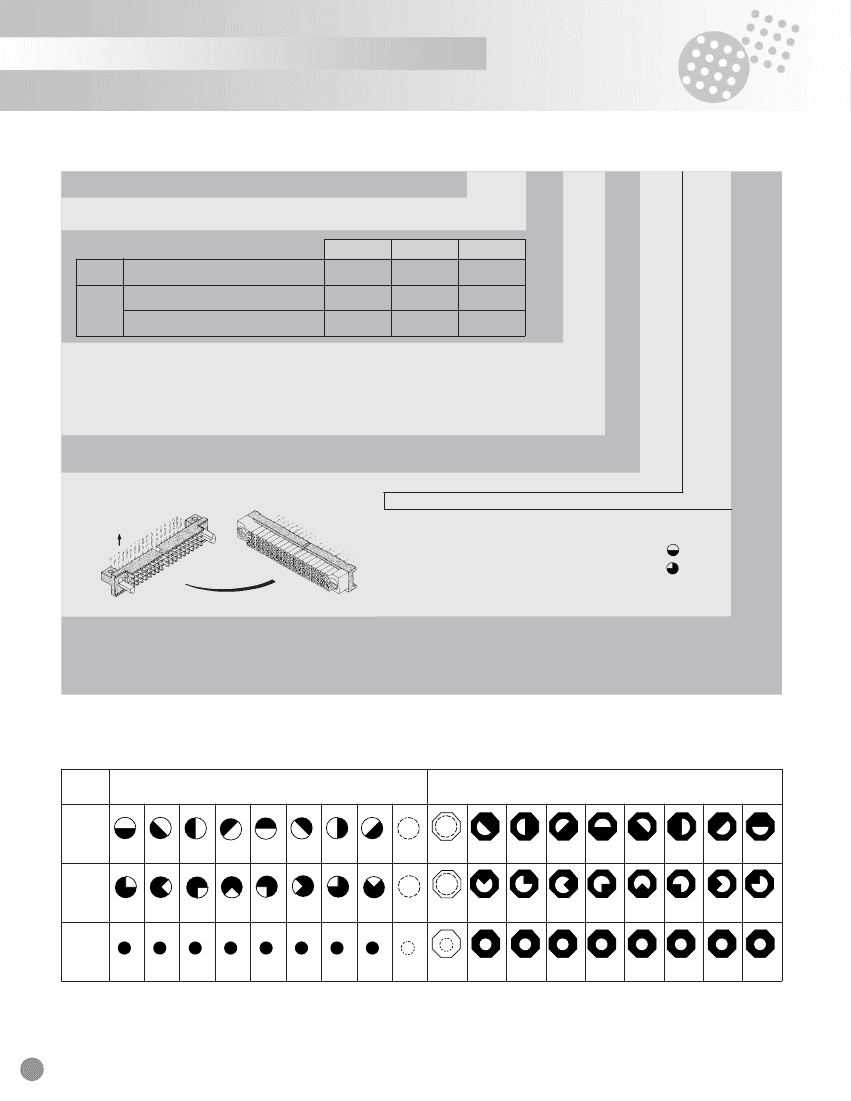

MIL key guides coding
shape
male-orientation
female-orientation
D
10
11
12
13
14
15
16
17
18
18
17
16
15
14
13
12
11
10
V
20
21
22
23
24
25
26
27
28
28
27
26
25
24
23
22
21
20
O
30
30
30
30
30
30
30
30
38
38
30
30
30
30
30
30
30
30
18 - 28 - 38 are corresponding to key guides delivered separately
388
2
8602 NAFI

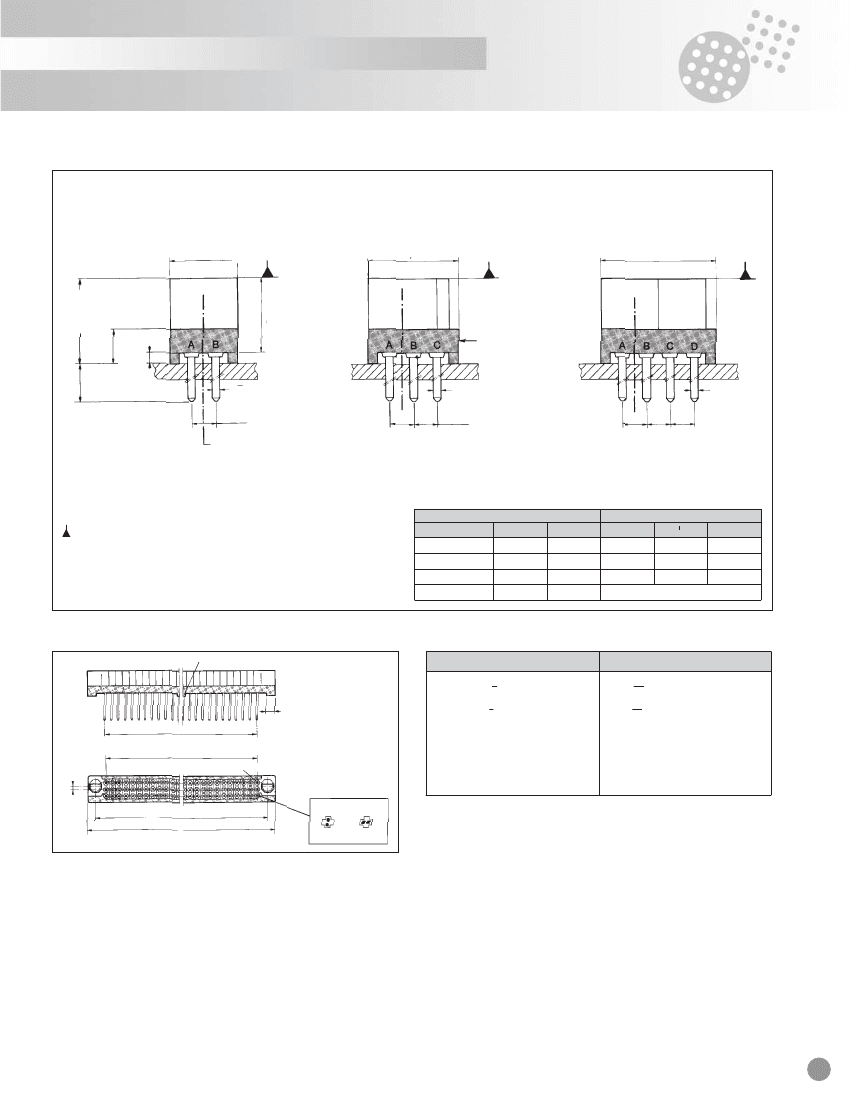

Female connector wire wrap or straight spill terminations
without fixing version (standard) 000 suffix
7.10
.279
9.65
Ref
.380
12.20
Ref
.480
Ref
+0.2
9.65-0.15
+.0079
.380-.0059
7.9
.311
4.30
.169
Marking area
3.70
1.46
E
F
2.54
.100
F
2.54
.100
F
2.54
.100
Key center line
Mating datum plane
*
Please, consult us
Note :
A, B, C, D, row marking at the request
straight spills
PWB thickness
E
1.6
(.062)
2.4
(.095)
3.2
(.126)
-
*
4.45
(.175)
4.45
(.175)
-
FØ
*
0.43
(.017)
0.43
(.017)
-
wire wraps
nb wraps
E
1
2
3
4
FØ
*
*
12.85
(.505)
0.87
(.034)
16.05
(.632)
0.87
(.034)
*
*
*
formula
D = (
rn
- 1) x 2,54
D = (
n
- 1) x (.100)
r
ex : 100 contacts / 2 rows
(
1 0 0
- 1) x 2,54 = 124,46
2
(
1 0 0
- 1) x (.100) = (4.900)
2
3.00
D
D
1.27
.050
.118
A = D + 13,54
A = D + (.533)
124,46 + 13,54 = 138,00
(4.900) + (.533) = (5.433)
pin n°1
C = D + 7,62
C = D + (.300)
Contact orientation
124,46 + 7,62 = 132,06
(4.900) + (.300) = (5.200)
C
A
n : number of contacts
r : number of rows
Standard
transverse
* Center mounting stand off is used only in contact arrangement over 50 per row.
with fixing version - 008 specification
Dimensions : see male connector straight spill termination
389
3
8602 NAFI

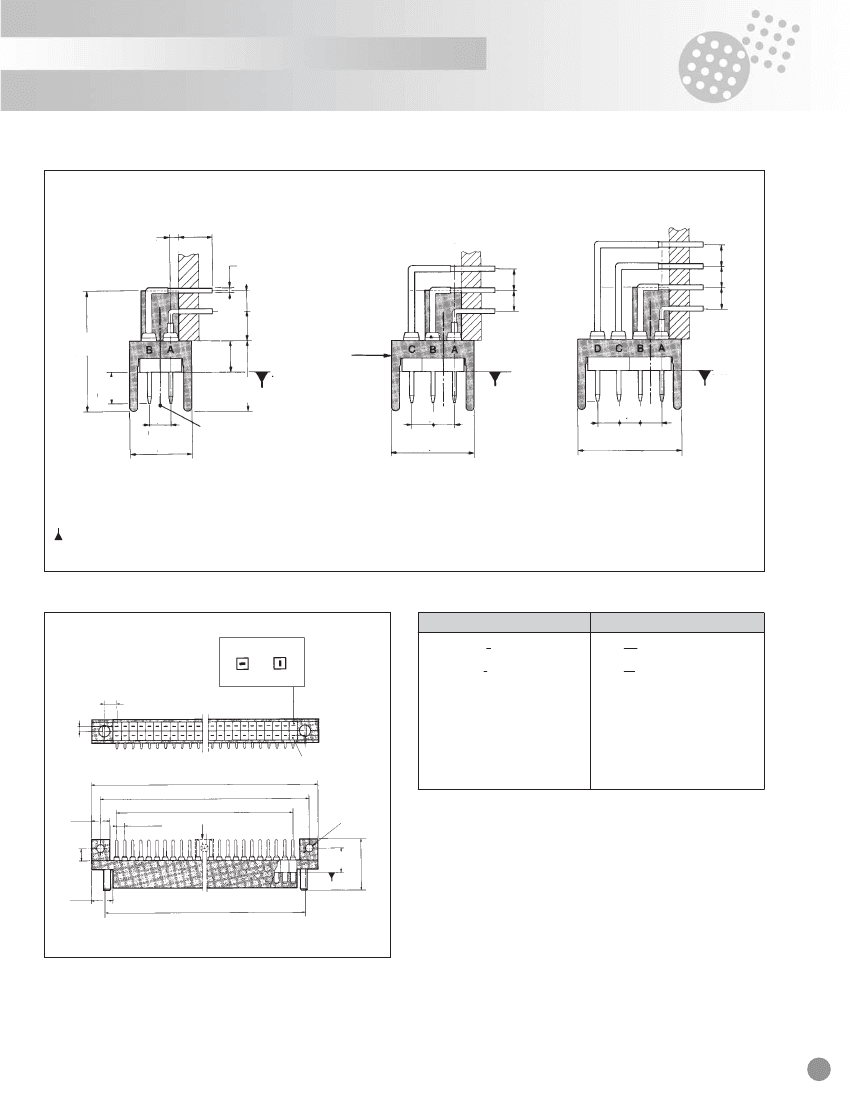

Female connector angled spill terminations for card extender
2 rows
9.80
Ref
.386
3 rows
12.35
Ref
.486
4 rows
13.85
Ref
.545
7.43
.292
8.40
.331
3.56
.140
2.54
.100
2.54x2=5.08
.100x2=.200
F
E
2.54x3=7.62
.100x3=.300
Key center line
1.27
.050
0.96
.038
PWB thickness
1,6
(.062)
E
2,70
(.106)
*
*
FØ
0,43
(.017)
*
*
Mating datum plane
*
Please, consult us
2,4
(.095)
3,2
(.126)
formula
D = (
rn
- 1) x 2,54
D = (
n
- 1) x (.100)
r
ex : 100 contacts / 2 rows
(
1 0 0
- 1) x 2,54 = 124,46
2
(
1 0 0
- 1) x (.100) = (4.900)
2
Contact orientation
Standard
transverse
A = D + 15,24
A
C
1.27
.50
124,46 + 15,24 = 139,70
(4.900) + (.600) = (5.500)
A = D + (.600)
C = D + 7,62
C = D + (.300)
124,46 + 7,62 = 132,09
(4.900) + (.300) = (5.200)
B = D + 10,16
B = D + (.400)
124,46 + 10,16 = 134,62
(4.900) + (.400) = (5.300)
D
pin n°1
A
B
D
5.50
.215
3.81/
.150
n : number of contacts
r : number of rows
2.4/
.094
2.54/
.100
3.56
.140
14.75
.580
8.40
.331
11.00 ± 0.25
.433 ± .001
Ref
390
4
8602 NAFI

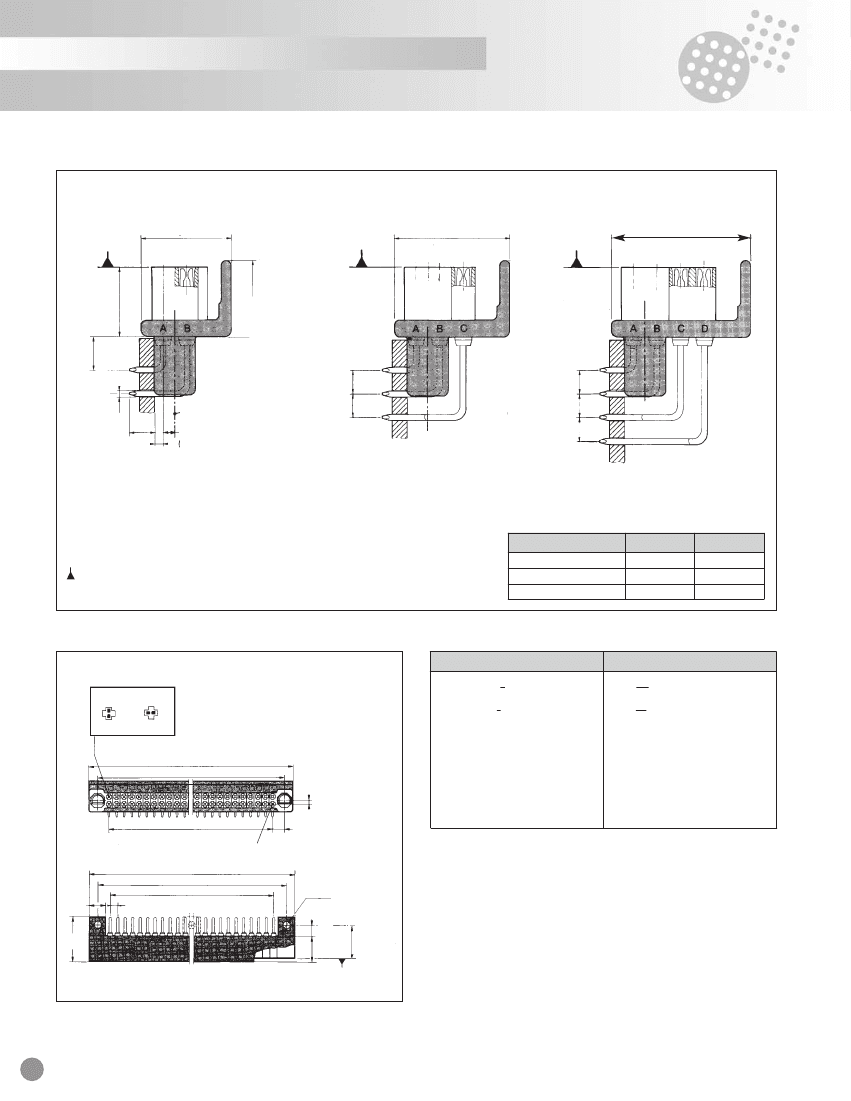

Male connector angle spill terminations
2 rows
0.96
.038
3 rows
4 rows
3.50
.138
Ø 0.43
.017
2.54
2.54
2.54
.100
.100
.100
14.75
.580
3.65
.144
Marking area
3.70
.146
Ref
8.40
.331
Ref
Ref
2.54
.100
2.54
key center line
.100
2.54
.100
7.25
.285
9.80
.386
12.35
.486
Mating datum plane
Note : A, B, C, D row marking at the request
formula
Contact orientation
ex : 100 contacts / 2 rows
(
1 0 0
- 1) x 2,54 = 124,46
2
(
1 0 0
- 1) x (.100) = (4.900)
2
D = (
n
- 1) x 2,54
r
D = (
n
- 1) x (.100)
r
standard transverse
3.81/
.150
A = D + 15,24
A = D + (.600)
124,46 + 15,24 = 139,70
(4.900) + (.600) = (5.500)
1.27
.050
C = D + 7,62
C = D + (.300)
pin n°1
A
B
5.50
.215
124,46 + 7,62 = 132,09
(4.900) + (.300) = (5.200)
B = D + 10,16
B = D + (.400)
124,46 + 10,16 = 134,62
(4.900) + (.400) = (5.300)
D
2.54/
.100
*
Ø 2.40/
.094
n : number of contacts
r : number of rows
3.56
.140
7.23±.0.2
.285±.008
14.75
.581
Réf
6.35
.250
C
* Center fixing recommended from 50 contacts per row.
391
5
