IDT54FCT16651ATEB datasheet, PDF

Datasheet> All Categories > logic> logic> IDT54FCT16651ATEB

IDT54FCT16651ATEB: DescriptionRegistered Bus Transceiver, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56; Categorylogic logic; File Size449KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54FCT16651ATEB Overview

Registered Bus Transceiver, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56

IDT54FCT16651ATEB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDFP-F56
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	2
Number of terminals	56
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL56,.4,25
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	7.7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
translate	N/A
Trigger type	POSITIVE EDGE

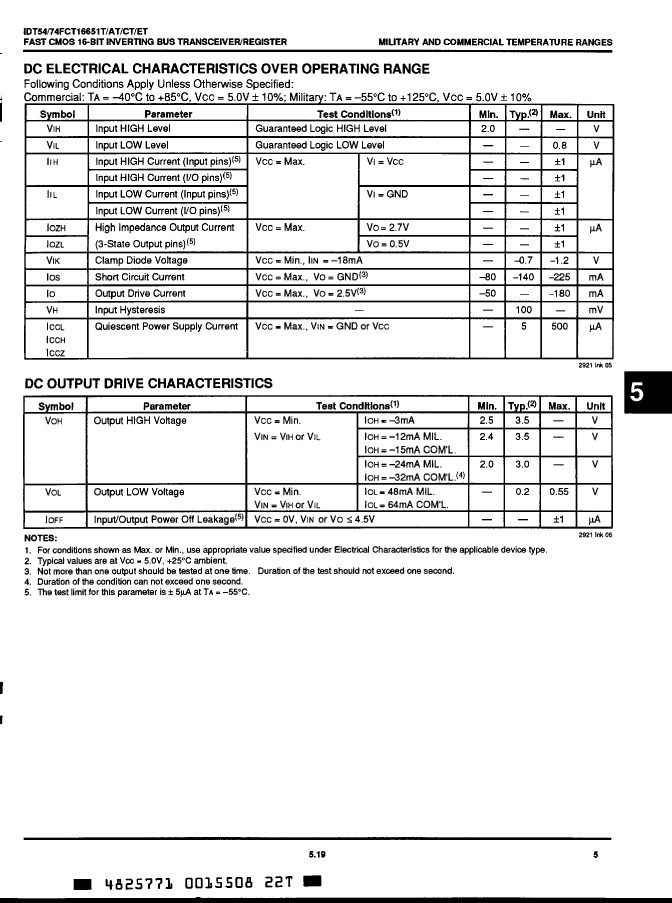

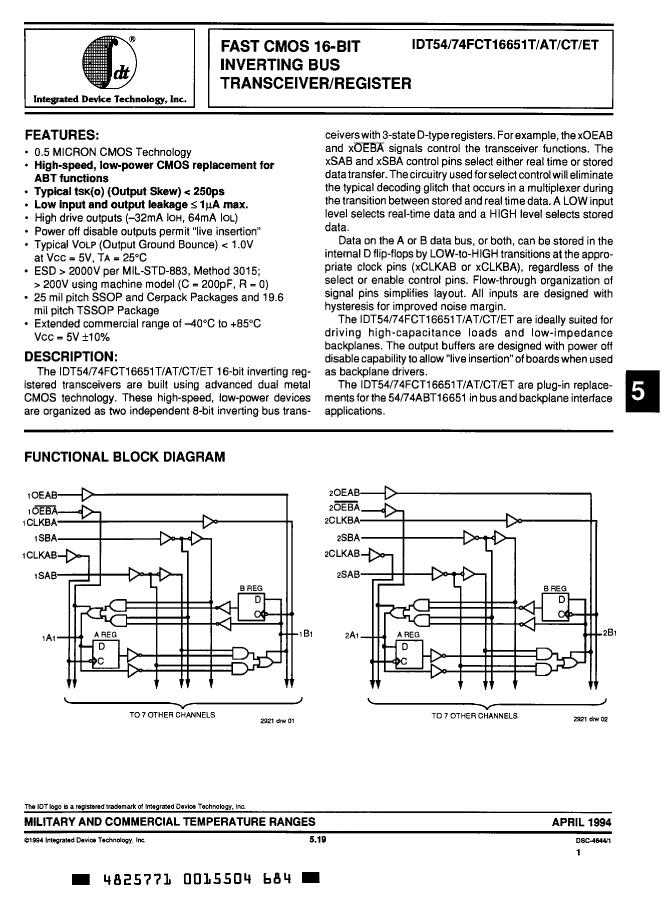

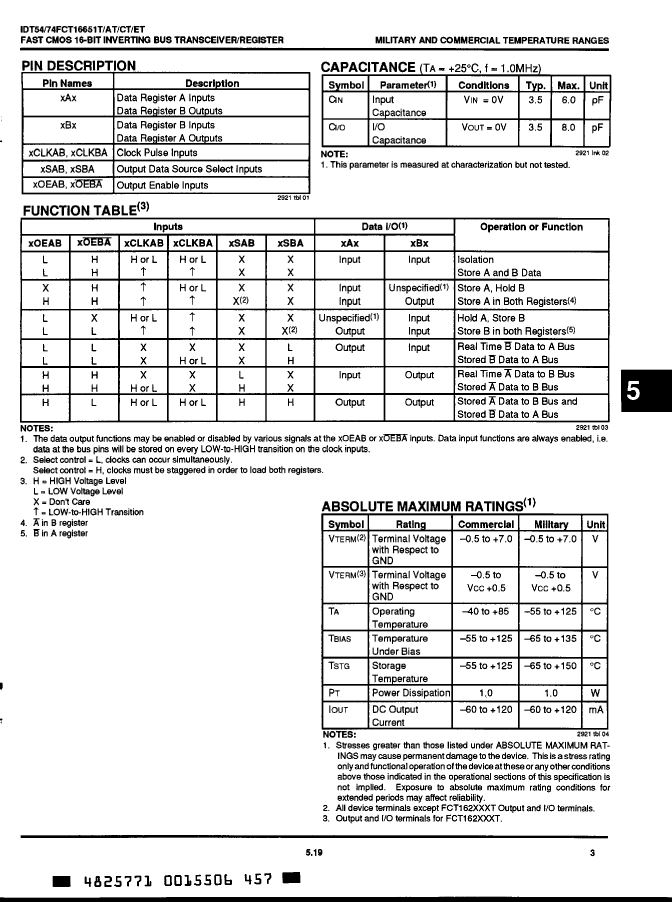

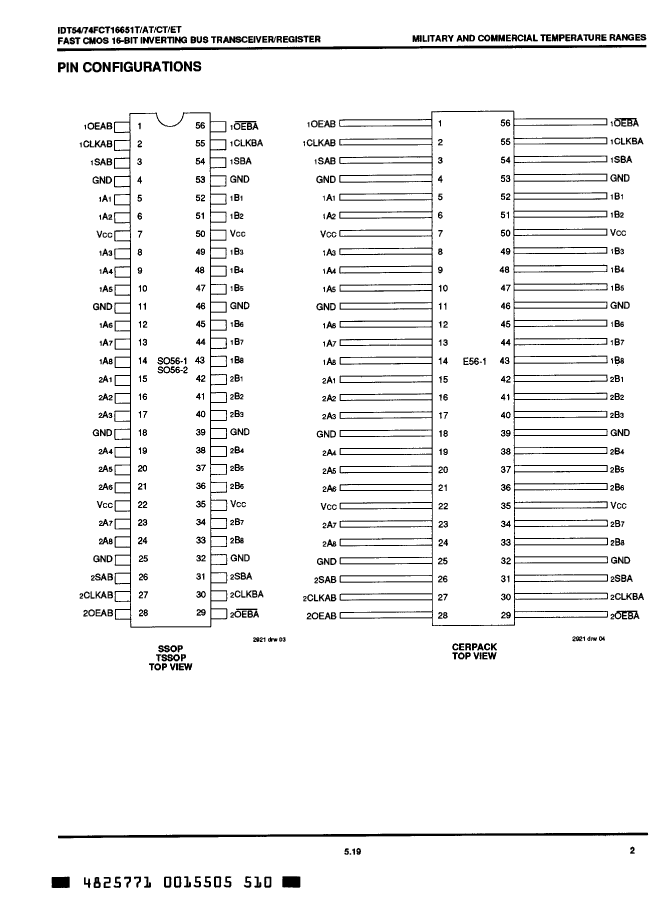

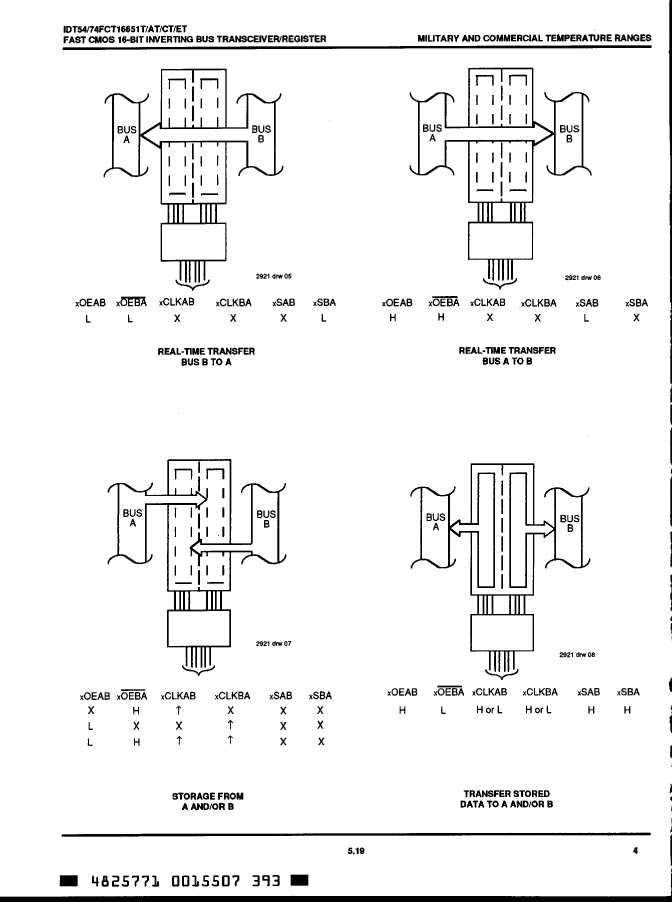

IDT54FCT16651ATEB Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IDT54FCT16651ATEB Related Products

	IDT54FCT16651ATEB	IDT54FCT16651CTEB	IDT54FCT16651TEB	74FCT16651ATPA	74FCT16651CTPA	74FCT16651CTPV	74FCT16651TPA	74FCT16651TPV
Description	Registered Bus Transceiver, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56	Registered Bus Transceiver, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56	Registered Bus Transceiver, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, SSOP-56
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDFP-F56	R-XDFP-F56	R-XDFP-F56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A	0.064 A	0.064 A	0.064 A	0.064 A	0.064 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56	56	56
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DFP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	FL56,.4,25	FL56,.4,25	FL56,.4,25	TSSOP56,.3,20	TSSOP56,.3,20	SSOP56,.4	TSSOP56,.3,20	SSOP56,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	240	240	225	240	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	7.7 ns	6 ns	11 ns	6.3 ns	5.4 ns	5.4 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	FLAT	FLAT	FLAT	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	6	20	20	20	20	20
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Objectid	-	-	-	1164058150	1164058152	1164058153	1164058156	1164058157
package instruction	-	-	-	SOP, TSSOP56,.3,20	SOP, TSSOP56,.3,20	SOP, SSOP56,.4	SOP, TSSOP56,.3,20	SOP, SSOP56,.4
series	-	-	-	FCT	FCT	FCT	FCT	FCT
Humidity sensitivity level	-	-	-	1	1	1	1	1
Number of ports	-	-	-	2	2	2	2	2
propagation delay (tpd)	-	-	-	6.3 ns	5.7 ns	5.7 ns	9 ns	9 ns
Maximum supply voltage (Vsup)	-	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	-	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
