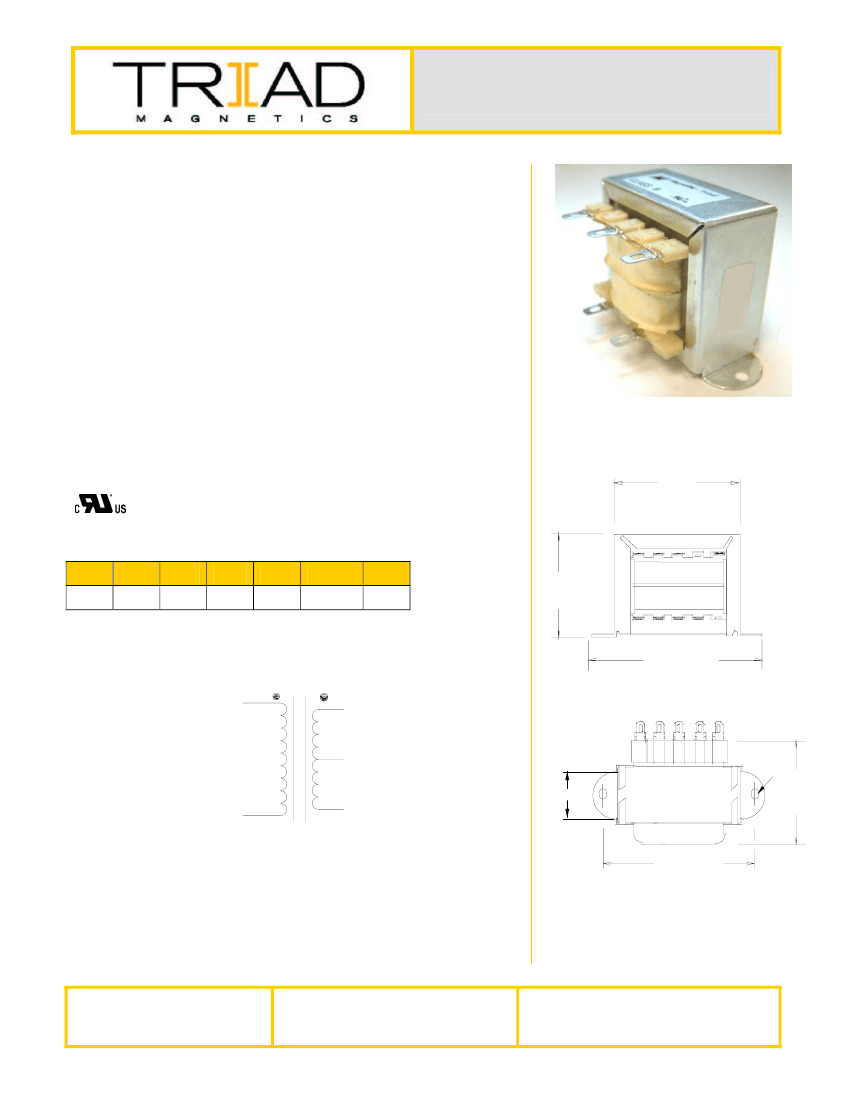

Power Transformer
Chassis Mount: Quick Pack
F6-120
Description:
The F6-120 Quick Pack small power transformer offers a significant reduction
in size and weight over a standard transformer. This transformer can be used
for a wide variety of applications. It is bobbin wound for reduced size and small
operating space.
Electrical Specifications (@25C);
Maximum Power:
30.0VA
Input Voltage:
115VAC@50/60Hz
Output Voltage:
120.0VCT@0.25A
Hipot:
2500VAC primary to secondary; 1500VAC windings to core.
Construction:
Split bobbin non concentric winding eliminates costly electrostatic shielding.
Termination is suitable for quick connects or soldering.
Built with UL Class B Insulation System.
Safety:
UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.
10
E
8
6
Dimensions:
A
1.937
B
2.812
C
3.250
D
1.687
E
2.312
F
.187 Dia
G
1.062
A
Notes:
1. Units: inches.
2. Terminal size: .187” X 0.021”.
3. Weight: 1.10 lbs
C
Schematic:
2
6
8
G
4
10
Input:
2 to 4
Output:
6 to10
B
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
1
F
D
2
3
4
5
