DL-7140-201P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DL-7140-201P

DL-7140-201P: DescriptionLaser Diode, 783nm; CategoryLED optoelectronic/LED photoelectric; File Size27KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

DL-7140-201P Overview

Laser Diode, 783nm

DL-7140-201P Parametric

Parameter Name	Attribute value
Objectid	1953223986
Reach Compliance Code	unknown
YTEOL	0
Configuration	SINGLE
Maximum forward current	0.14 A
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Optoelectronic device types	LASER DIODE
Nominal output power	90 mW
peak wavelength	783 nm
shape	ROUND
size	1 mm
surface mount	NO
Maximum threshold current	60 mA

Preview

Download Datasheet

View All

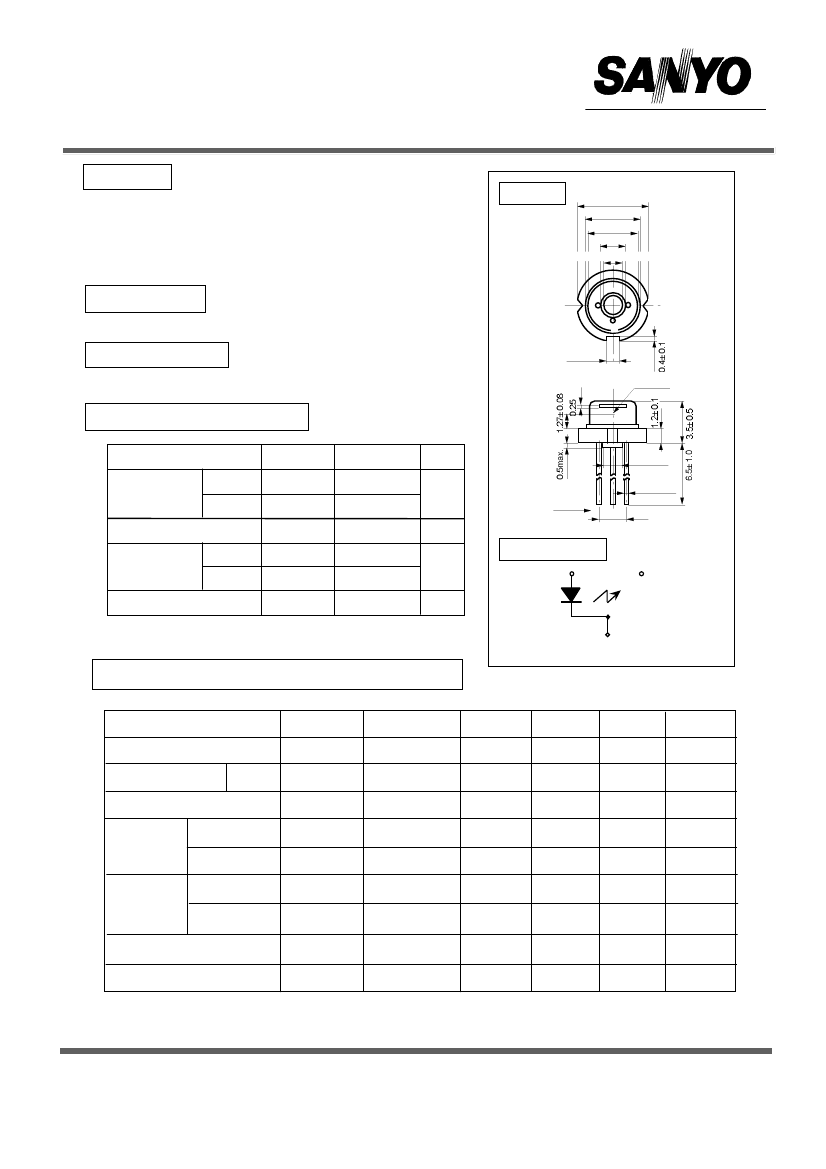

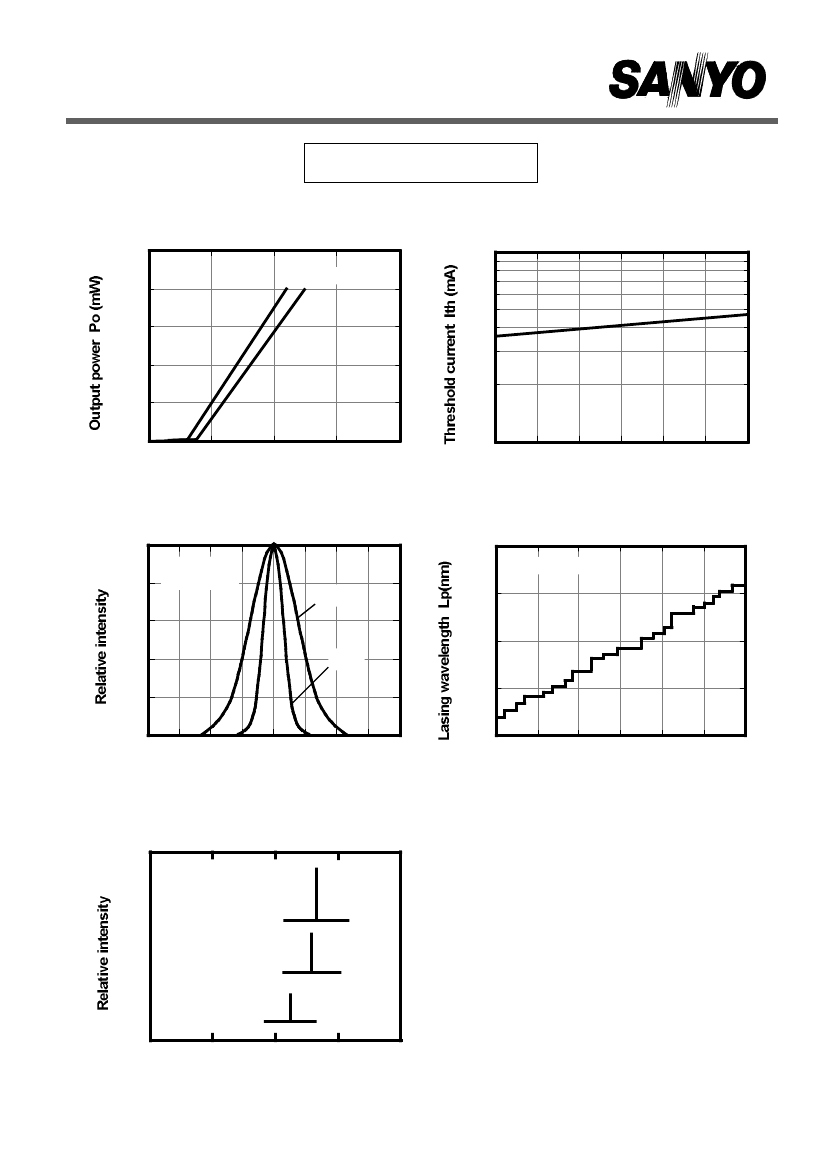

INFRARED LASER DIODE

DL-7140-201P

Features

• Wavelength : 783 nm (Typ.)

• Low threshold current : Ith = 40 mA (Typ.)

• High operating temperature : 200mW(Pulse)

• Small package : ø5.6mm

Applications

• Optical disc system (CD-R)

Usage condition

CW:<90mW Pulse:<200mW(peak power)

Absolute Maximum Ratings

(Tc=25°C)

Parameter

Light Output

Symbol

Po (CW)

Pulse

Po(pulse)

Ver.2 Jun. 2002

Package

ø5.6 - 0.025

ø4.4

ø3.55± 0.1

ø1.6

Effective window diameter 1.0min.

Tolerance : ± 0.2

(Unit : mm)

1.0± 0.1

Top view

LD facet

Ratings

200

-10 to +60

-10 to +70

-40 to +85

Unit

Pin Connection

°C

ø1.4max.

ø0.45± 0.1

Pin No.

ø2.0

Reverse Voltage (LD)

Operating

Temperature Pulse

Storage Temperature

Topr

Tstg

(NC)

(Case)

(Tc=25°C)

1) Pulse Width

≤0.1µs,

Duty 50%,Peak power

2) Case temperature

Electrical and Optical Characteristics 3) 4) 5) 7)

Parameter

Threshold Current

Operating Current

Tc=25°C

Lasing Wavelength

Perpendicular

Beam

Divergence

Parallel

Off Axis

Angle

Perpendicular

Parallel

Symbol

Ith

Iop

dQv

dQh

dPo/dIop

Condition

Po=70mW

Min.

778

7.5

0.8

Typ.

110

783

8.5

1.1

Max.

140

788

9.0

± 2.0

± 1.5

1.3

Unit

mW/mA

µm

Differential Efficiency

Astigmatism

3) Initial values. 4) All the above values are evaluated with Tottori sanyo's measuring apparatus.

5) Reference values. 6)Full angle at half maximum. 7) Measured at CW .

Note : The above product specification are subject to change without notice.

Tottori SANYO Electric Co., Ltd.

LED Division

5-318, Tachikawa, Tottori 680-8634 Japan

EIectronic Device Business Headquarters

TEL : +81-857-21-2137 FAX : +81-857-21-2161
