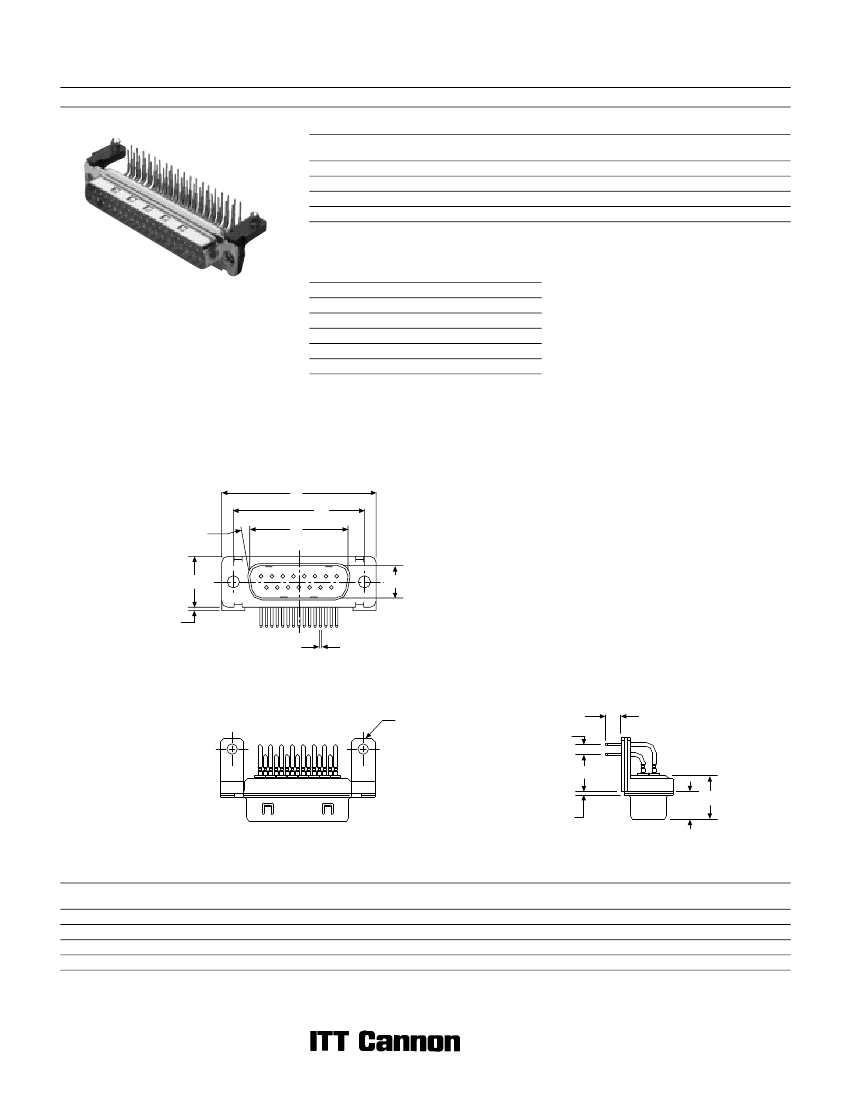

D Subminiature
D*JK — 90° PC Tails & Plastic Brackets — European Footprint 10,2 or 9,4 mm
Plug
Part Numbers
Bushing with
Through Hole
DEJK9P*-1A5N
DAJK15P*-1A5N
DBJK25P*-1A5N
DCJK37P*-1A5N
Captive Nut
#4-40 UNC
DEJK9P*-1AUN
DAJK15P*-1AUN
DBJK25P*-1AUN
DCJK37P*-1AUN
Captive Nut
M3
DEJK9P*-1ATN
DAJK15P*-1ATN
DBJK25P*-1ATN
DCJK37P*-1ATN
Post
#4-40 UNC
DEJK9P*-1A6N
DAJK15P*-1A6N
DBJK25P*-1A6N
DCJK37P*-1A6N
Filter D
Post
M3
DEJK9P*-1APN
DAJK15P*-1APN
DBJK25P*-1APN
DCJK37P*-1APN
* Insert filter designator. Example: DEJK9P4-1A5N (For 1000 pF filter capacitance)
Notes: For performance class 1 add -A190. Example: DEJK9P1-1A5N-A190
For pushfit/boardlocks add-146. Example: DEJK9P1-1A5N-A190-146
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
1
8
E
9
15
D
1,00 (.039)
Ø 0,60 (.024)
BRACKET,
PLASTIC
3,70 (.146)
2,54 (.100)
9,40 (.370)
F
W
L
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0.13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,37
(.015)
6,69 (.264)
6,69 (.264)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
118
Dimensions are shown in mm (inch)
Dimensions subject to change
