SSP-2 Series
SINGLE SIDEBAND MODULATORS
10 to 4000 MHz / Image Rejection up to 30 dB / Two Quad Hybrids / Choice of Packages
PRINCIPAL SPECIFICATIONS
Model
Number
SSP-2S-***/
SSP-2U-****/
LO Center
Frequency,
f
o,
MHz
10 - 1000
1000 - 4000
Usable
Bandwidth,
MHz
10% of f
o
10% of f
o
Outline
Style
S
U
GENERAL SPECIFICATIONS*
RF/IF Input Characteristics
Impedance:
VSWR:
RF Power Level:
IF Power Level:
IF Bandwidth:
RF Bandwidth:
50
Ω
nom..
1.5:1 max.
+10 dBm
0 dBm nom.
up to an octave
10%
A complete model number will be assigned with center frequency ****= f
o
and slash number
once a full specification is established with the factory.
IMAGE REJECTION
50
for a given Amplitude and Phase Balance
Output Characteristics
Conversion Loss:
9 dB max.
Sideband Suppression: 25 dB min.
Weight:
Temperature Range:
45
(See outlines)
-- 55° to +85°C
*Unit operated as upconverter
40
General Notes:
1. Single Sideband Modulators are
integrated networks composed of an
in-phase power divider, two double
balanced mixers and at least one 90°
quadrature hybrid.
2. The SSP-2 series is suitable for
applications where the modulating signal is
provided together with one in phase
quadrature to it. This permits operation
down to DC and eliminates the need for a
second 90° quadrature hybrid.
3. Units in the SSP-2 series are suitable
where the desired and undesired RF
sidebands are too close to be effectively
separated with a simple bandpass filter or
where minimum group delay is required.
4. Merrimac Single Sideband Modulators
are available in various package options.
5. Merrimac Single Sideband Modulators
comply with the relevant sections of
MIL-M-28837 and may be supplied
screened for compliance with additional
specifications for military and space
applications requiring the highest reliability.
14Feb96
35
Rejection
Ratio
Ampl.
Bal.
0 dB
0.25
0.5
30
25
0.75
1.0
20
2.0
15
0
0.5
1
1.5
2
2.5
3
Phase Error (degrees)
F rf t e if r to c n a t
M ERRI AC /41 Faifel Pl,W estCal el,NJ,07006 / 973-
o ur h r n o ma in o t c
M
ri d .
dw l
575-
1300 /FAX 973- 0531
575-
SSP-2 Series
SINGLE SIDEBAND MODULATORS
10 to 4000 MHz / Image Rejection up to 30 dB / Two Quad Hybrids / Choice of Packages

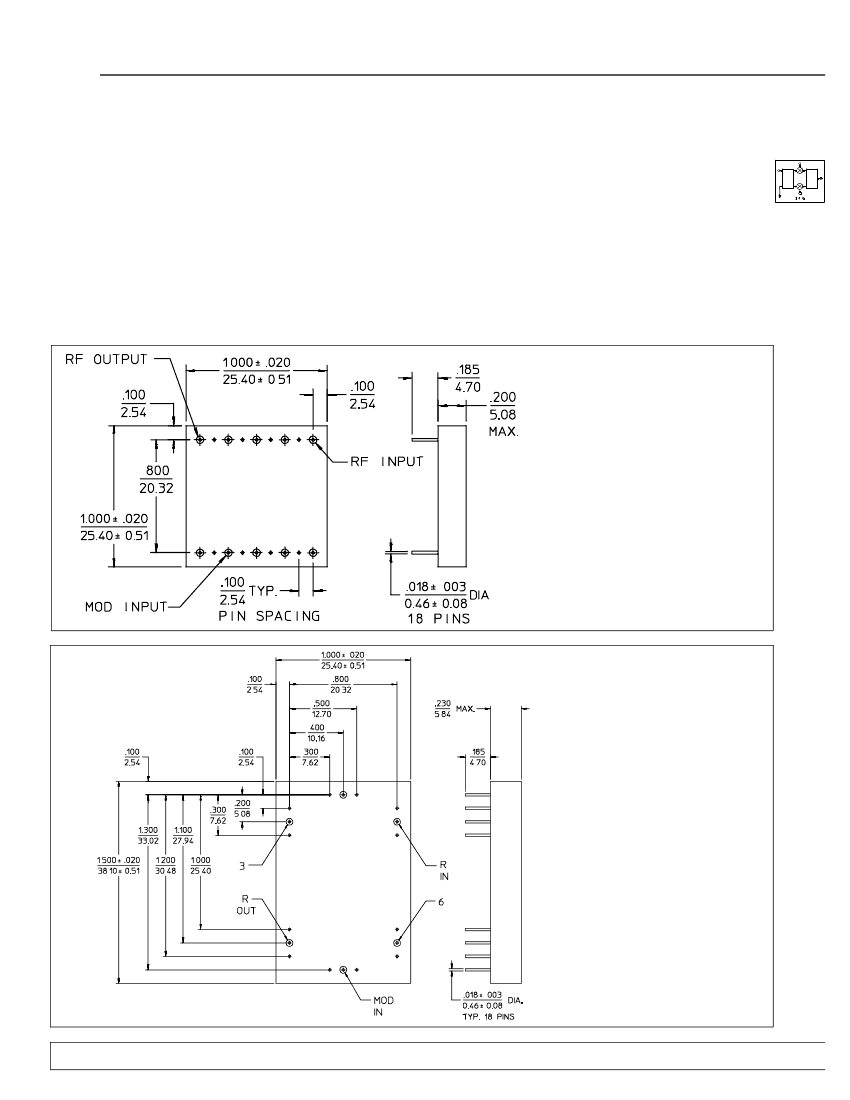

S- Meri-Pac™ Outline
™
NOTES:
1. Tolerance on 3 place decimals
±
.010(.25)
except as noted.
2. Dimensions in inches over millimeters.
3. Dimensions marked with * apply only at body.
4. All unmarked pins are case ground.
5. Nominal Weight: 0.35 oz (10 g)
U- Package Outline
NOTES:
1. Tolerance on 3 place decimals
±
.010(.25)
except as noted.
2. Dimensions in inches over millimeters.
3. Dimensions marked with * apply only at body.
4. All unmarked pins are case ground.
5. Nominal Weight: 0.55 oz (15.4 g)
14Feb96
F rf t e if r to c n a t
M ERRI AC /41 Faifel Pl,W estCal el,NJ,07006 / 973-
o ur h r n o ma in o t c
M
ri d .
dw l
575-
1300 /FAX 973- 0531
575-
