RE1A-60S: DescriptionPower/Signal Relay, SPST, Momentary, 0.008A (Coil), 60VDC (Coil), 480mW (Coil), 12A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size97KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RE1A-60S Overview

Power/Signal Relay, SPST, Momentary, 0.008A (Coil), 60VDC (Coil), 480mW (Coil), 12A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

RE1A-60S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	World Produts Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.008 A
Coil operating voltage (DC)	42 V
Coil power	480 mW
Coil release voltage (DC)	6 V
Coil resistance	7340 Ω
Maximum coil voltage (DC)	60 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	12A@250VAC
Maximum contact current (AC)	12 A
Maximum contact current (DC)	12 A
Contact (DC) maximum rated R load	12A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	RE
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.7mm x 15.7mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	SEALED TYPE
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

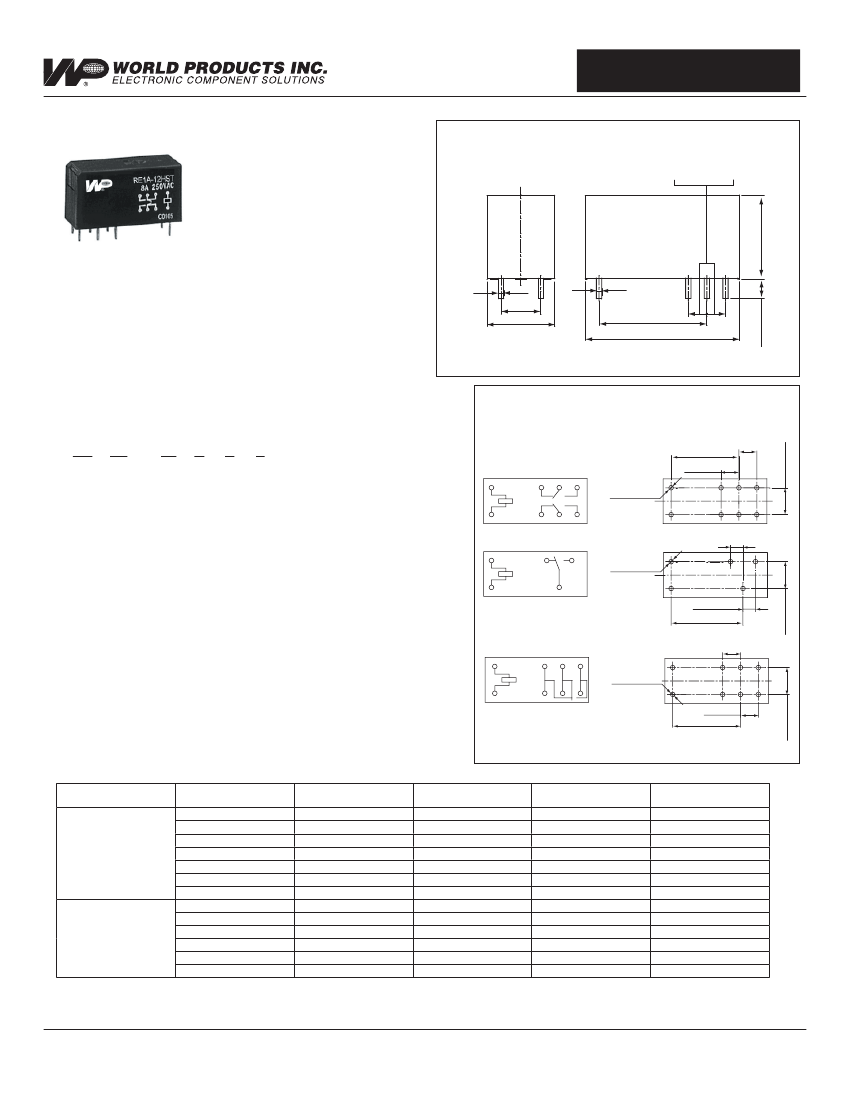

RE SERIES

INDUSTRIAL RELAYS

DIMENSIONS

The RE Series has 16A switching capabili-

ties as well as a sealed and unsealed type

available. This WPI industrial relay has 1 &

2 pole conﬁgurations.

UL File #E245348

1C

3.5(.138)

2C, 1C-T

5.0(.197)

FEATURES

1.

2.

3.

4.

5.

6.

7.

16A switching capabilities.

1 & 2 pole conﬁgurations.

5KV dielectric coil to contacts.

Height is 15.7mm.

Sealed & unsealed type available.

Creepage distance 10mm.

Sensitive coil 250mW.

1 (.039)

7.5(.295)

12.7(.5)

1 (.039)

3.6(.142)

Tolerance: ±0.2(.008)

5(.197)

8 -

∅1.3

(.051)

3.5(.138)

5 -

∅1.3

(.051)

3.5(.138)

20(.787)

5(.197)

20(.787)

29(1.142)

Unit: mm(inch)

SCHEMATICS

ORDERING INFORMATION

RE

(1)

(bottom view)

PCB BOARD LAYOUT

(bottom view)

2C

Coil Sensitivity

Nil

=Standard

H

= High sensitivity

Basic Designation

RE

= RE Series

Contact Arrangement

1A

= 1 Form A (SPST-NO)

1C

= 1 Form C (SPDT)

2A

= 2 Form A (DPST-NO)

2C

= 2 Form C (DPDT)

Coil Voltage

5~110V

(4)

(2)

1C

(5)

Enclosure

Nil

= Unsealed

S

= Sealed

Capacity

Nil

= Standard

T

= High Current

(6)

(3)

1C-T

8 -

∅1.3

(.051)

Unit: mm(inch)

COIL RATINGS (AT 20°C)

Coil Type

Coil Nominal Voltage

(V)

5

6

12

24

48

60

110

5

6

12

24

48

60

Coil Resistance

(Ω)

62 ± 10%

90 ± 10%

360 ± 10%

1440 ± 10%

5520 ± 10%

7340 ± 12%

26600 ± 12%

100 ± 10%

144 ± 10%

576 ± 10%

2304 ± 10%

9216 ± 10%

12857 ± 12%

Pick-Up Voltage

(V)

3.5

4.2

8.4

16.8

33.6

42

77

3.7

4.5

9.0

18.0

36.0

45.0

Drop-Out Voltage

(V)

0.5

0.6

1.2

2.4

4.8

6.0

11.0

0.5

0.6

1.2

2.4

4.8

6.0

Nominal Current

(mA)

80.6

66.7

33.3

16.7

8.7

8.2

4.1

50

41.7

20.8

10.4

5.2

4.7

DC Standard Coils

DC High Sensitivity

Coils

* Max continuous Voltage at 20°C: 130% of Coil Nominal Voltage.

Phone (707) 996-5201 | Fax (707) 996-3380 |

www.worldproducts.com

Industrial Relay Catalog |

19

7.5(.295)

1A -

(2)

12 H

S

T

(3) (4) (5) (6)

20(.787)

15.7(.618)
