GRZ220M100-1620: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 220uF; CategoryPassive components capacitor; File Size185KB，2 Pages; ManufacturerGemmy Electronics Co., Ltd.; Related ProductsFound4parts with similar functions to GRZ220M100-1620

Download Datasheet Parametric View All

GRZ220M100-1620 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 220uF

GRZ220M100-1620 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
length	20 mm
Manufacturer's serial number	GRZ(100V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
series	GRZ(100V)
Terminal pitch	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

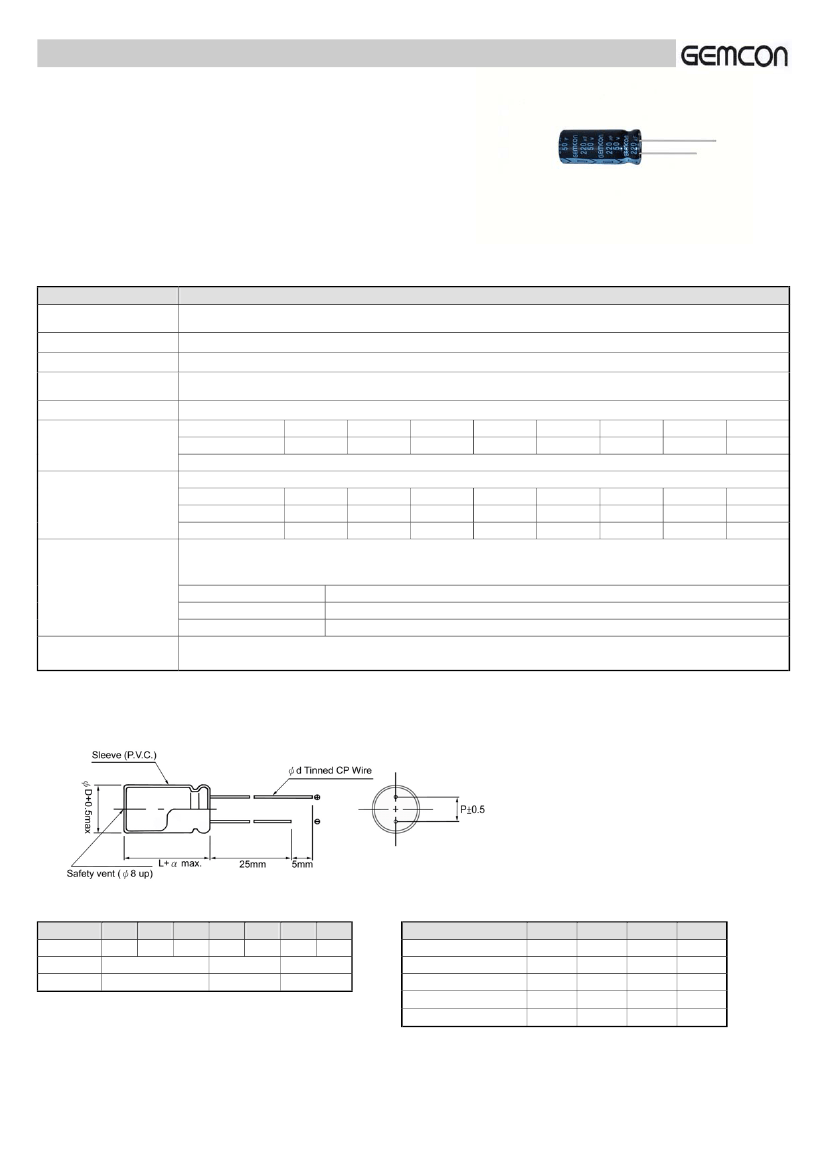

ALUMINUM ELECTROLYTIC CAPACITOR

GRZ

105°C

Low Impedance, Longer Life

i

2,000∼5,000

105°C

i

With lowest impedance and high ripple current,

suitable for used in M/B or other high frequency circuit.

i

Life guaranteed 2,000∼5,000 hours at 105°C

i

Specifications

Item

Operating Temperature

range

Rated Voltage

Capacitance Range

容量範圍

Capacitance Tolerance

Leakage Current

Dissipation Factor

(120Hz, 20°C)

Temperature

Characteristics

(120Hz)

Performance Characteristics

-40 + 105°C

6.3V

∼

100V

6.8

∼

6,800

µF

±20%

(120Hz, 20°C)

I

≤

0.02CV or 4

µA,

whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V)

Tan

δ

(max.)

6.3

0.22

10

0.19

16

0.16

25

0.14

35

0.12

50

0.10

63

0.09

100

0.08

For capacitance of more than 1,000µF, add 0.02 for every increase of 1,000µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V)

Z (-25°C) / Z (20°C)

6.3

2

10

2

16

2

25

2

35

2

50

2

63

2

100

2

Load Life

Z (-40°C) / Z (20°C)

3

After a certain hour application of rated voltage and ripple current at 105°C, capacitor shall meet the characteristics

requirements mentioned below.

5

∼

6

φ

: 2,000 hours

8

∼

10

φ

: 3,000 hours

≥

13

φ

: 5,000 hours

Capacitance change

Tan

δ

Leakage current

Within

±25%

of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

After leaving capacitors under no load at 105°C for 1,000 hours and applying voltage according to JIS C5102 4-3, capacitor

shall meet the specified value as load life characteristics listed above.

i

Dimension

•

Frequency coefficient of allowable ripple current

D

φ

P

5

2.0

6.3

2.5

0.5

1.5

8

3.5

10

5.0

0.6

2.0

13

5.0

16

7.5

0.8

2.0

18

7.5

Cap(µF) \ Frequency

6.8

∼

33

47

∼

220

330

∼

680

820

∼

1800

2200

∼

6800

120Hz

0.42

0.50

0.55

0.60

0.70

1KHz

0.70

0.73

0.77

0.80

0.85

10KHz

0.90

0.92

0.94

0.96

0.98

∼100KHz

1.00

φ

d

α
