PZ0200/3M00GY: DescriptionMains Power Connector, 10A, 250VAC, Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

PZ0200/3M00GY Overview

Mains Power Connector, 10A, 250VAC, Female, ROHS COMPLIANT

PZ0200/3M00GY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN 60320-1; UL 94V-0
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	PZ0200
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Total number of contacts	3

Preview

Download Datasheet

View All

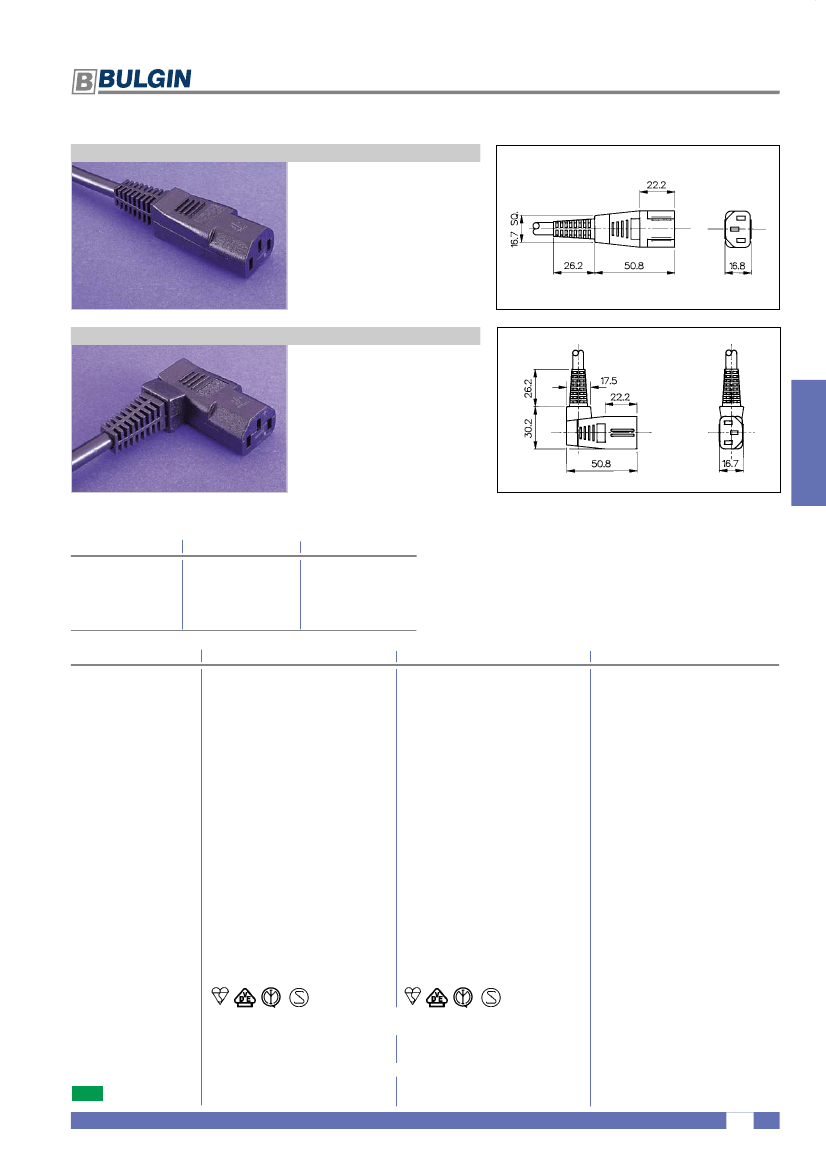

IEC CORD-SETS

BS EN60 320-1 (Standard Sheet C13 Class I) Non Rewirable Cold Condition

IEC FEMALE STRAIGHT

Non Rewirable

Various Cable Lengths

Choice of Colours

10A, 250V a.c.

PZ0100/Length

IEC FEMALE ANGLED

Non Rewirable

Various Cable Lengths

Choice of Colours

10A, 250V a.c.

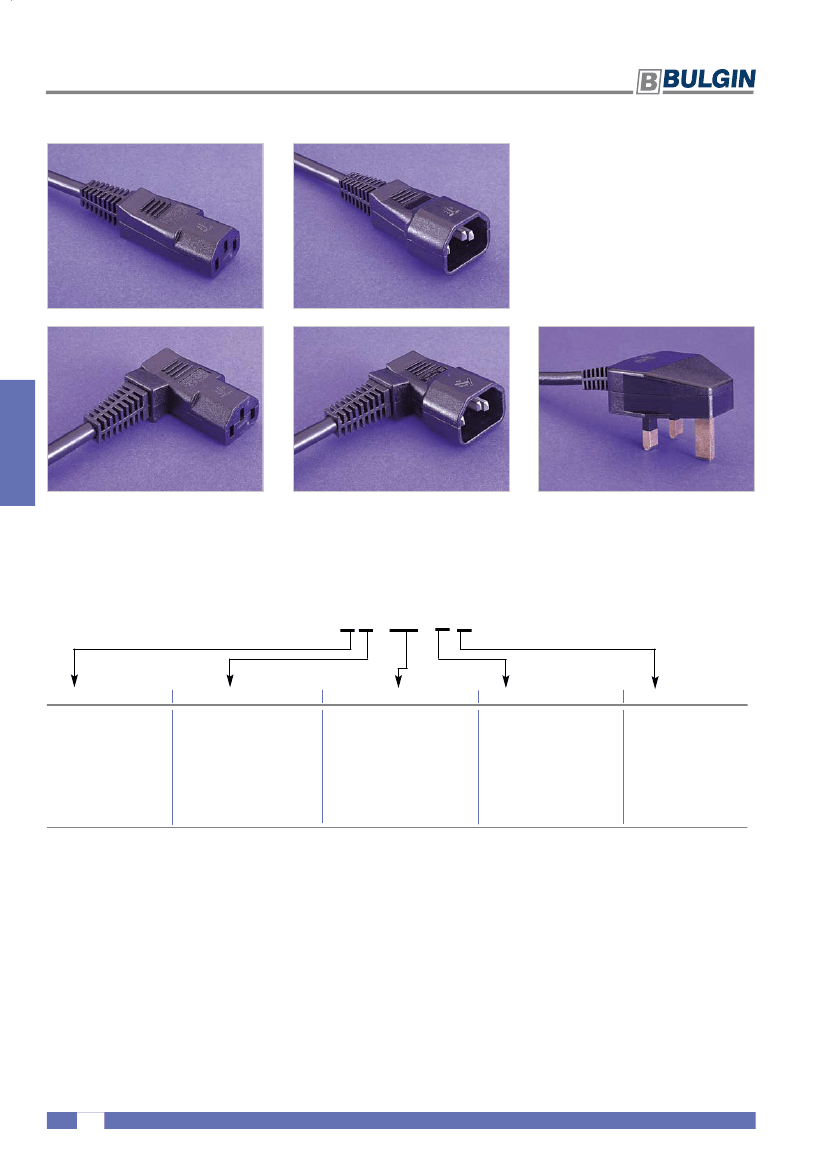

IEC CONNECTORS

For grey or white versions add colour suffix /GY or /WH

e.g. PZ0100/2M00/WH = 2 metre length, colour white

PZ0200/Length/Colour

2m (/2M00), 2.5m (/2M50), 3m (/3M00)

0.75mm

2

1.00mm

2

Bared ends

10A, 250V a.c.

<10mΩ

>10

5

MΩ @ 500V d.c.

Pole-Pole 6.5kV

Poles-Accessible parts 5kV

0˚C to +70˚C

10N (Min.) 50N (Max.)

Polycarbonate

Flammability Rating UL 94V-0

Phospher Bronze

*

*Pending

PX0575, PX0579, PX0580, PF0001, PF0011, PF0030, PF0033

Black (blank), Grey (/GY), White (/WH)

*Pending

139

PZ0200/Length

Ordering Data

Length

2 Metres

2.5 Metres

3 Metres

Specification

Cable Lengths (standard):

Cable type:

2m and under

over 2m

Terminations:

Max. Rating:

Contact Resistance:

Insulation Resistance:

A.C. Breakdown:

Operating Temp. Range:

Withdrawal Force:

Mouldings:

Contacts:

Approvals:

Mates with:

Colours:

Variants:

PZ0100

PZ0100/2M00

PZ0100/2M50

PZ0100/3M00

PZ0200

PZ0200/2M00

PZ0200/2M50

PZ0200/3M00

PZ0100/Length/Colour

2m (/2M00), 2.5m (/2M50), 3m (/3M00)

0.75mm

2

1.00mm

2

Bared ends

10A, 250V a.c.

<10mΩ

>10

5

MΩ @ 500V d.c.

Pole-Pole 6.5kV

Poles-Accessible parts 5kV

0˚C to +70˚C

10N (Min.) 50N (Max.)

Polycarbonate

Flammability Rating UL 94V-0

Phospher Bronze

*

For other lengths please contact the sales office

Compliant

RoHS

www.bulgin.co.uk
