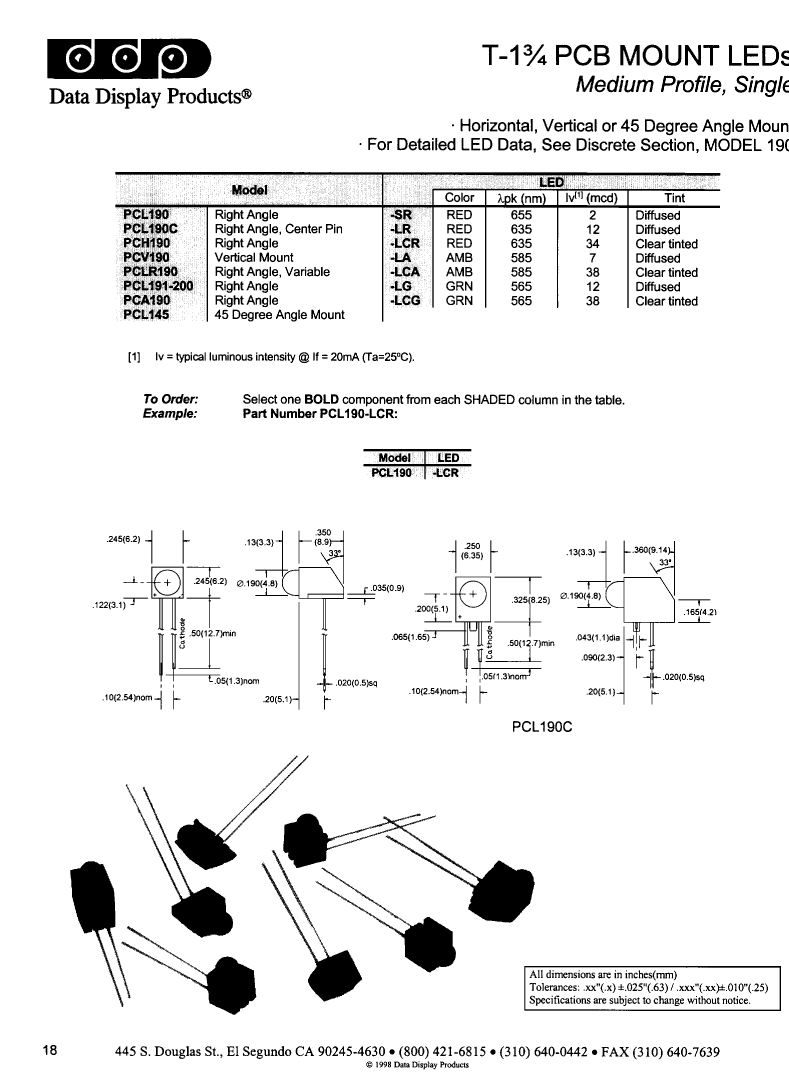

PCL190C-SR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PCL190C-SR

PCL190C-SR: DescriptionSingle Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN; CategoryLED optoelectronic/LED photoelectric; File Size88KB，2 Pages; ManufacturerDDP Engineered LED Solutions

Download Datasheet Parametric Compare View All

PCL190C-SR Overview

Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN

PCL190C-SR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DDP Engineered LED Solutions
package instruction	2PIN
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	2 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED
total height	8.25 mm
method of packing	BULK
peak wavelength	655 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm

Preview

Download Datasheet

View All

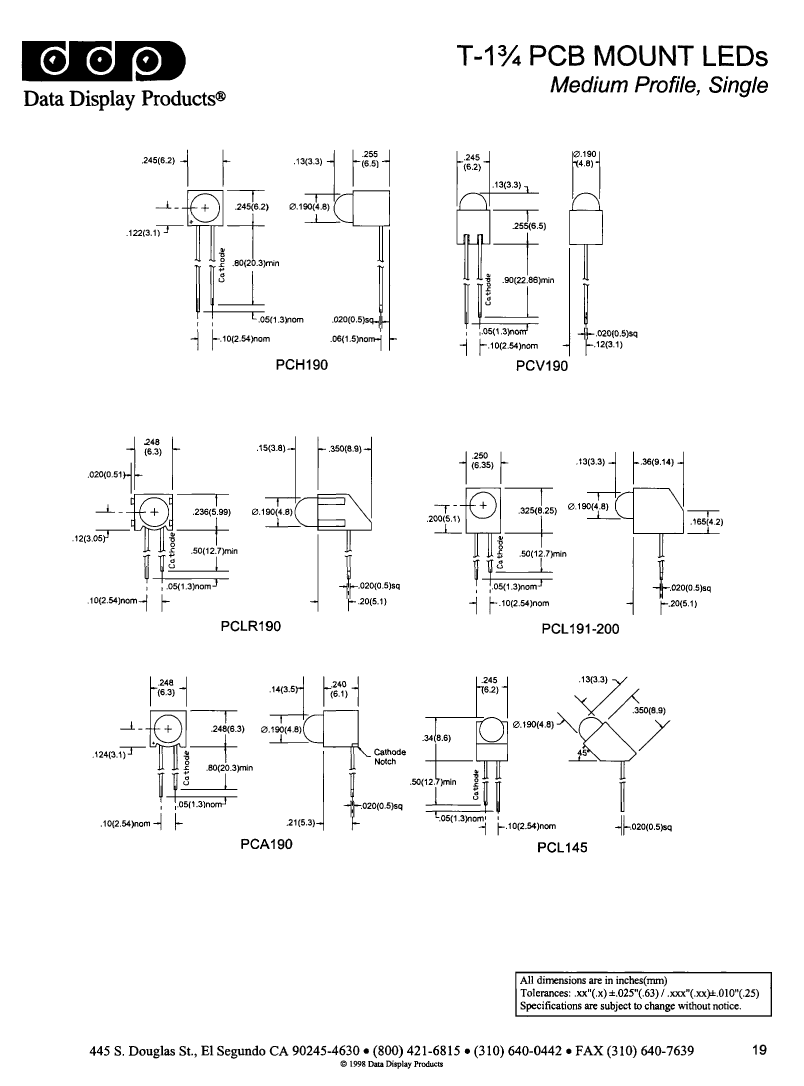

PCL190C-SR Related Products

	PCL190C-SR	PCV190-SR	PCL191-200-SR	PCL190-SR	PCA190-SR	PCH190-SR	PCLR190-SR
Description	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	2PIN	2PIN	2PIN	2PIN	2PIN	2PIN	2PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	RED	RED	RED	RED	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	2 mcd	2 mcd	2 mcd	2 mcd	2 mcd	2 mcd	2 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	4	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.25 mm	9.8 mm	8.25 mm	6.2 mm	3.5 mm	6.2 mm	3.8 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	655 nm	655 nm	655 nm	655 nm	655 nm	655 nm	655 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Maker	DDP Engineered LED Solutions	DDP Engineered LED Solutions	-	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions
color@wavelength	Red	Red	Red	-	Red	-	Red
