TMR1-1211

Description
DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-6/4
CategoryPower/power management    The power supply circuit
File Size246KB，4 Pages
Manufacturer
Environmental Compliance
Download Datasheet Parametric Compare View All

TMR1-1211 Overview

DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-6/4

TMR1-1211 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Maker
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage18 V
Minimum input voltage9 V
Nominal input voltage12 V
JESD-30 codeR-PSMA-T4
length17 mm
Maximum load regulation1%
Number of functions1
Output times1
Number of terminals4
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output voltage5.05 V
Minimum output voltage4.95 V
Nominal output voltage5 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height11.5 mm
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output1 W
Fine-tuning/adjustable outputNO
width7.62 mm

TMR1-1211 Preview

DC/DC Converters

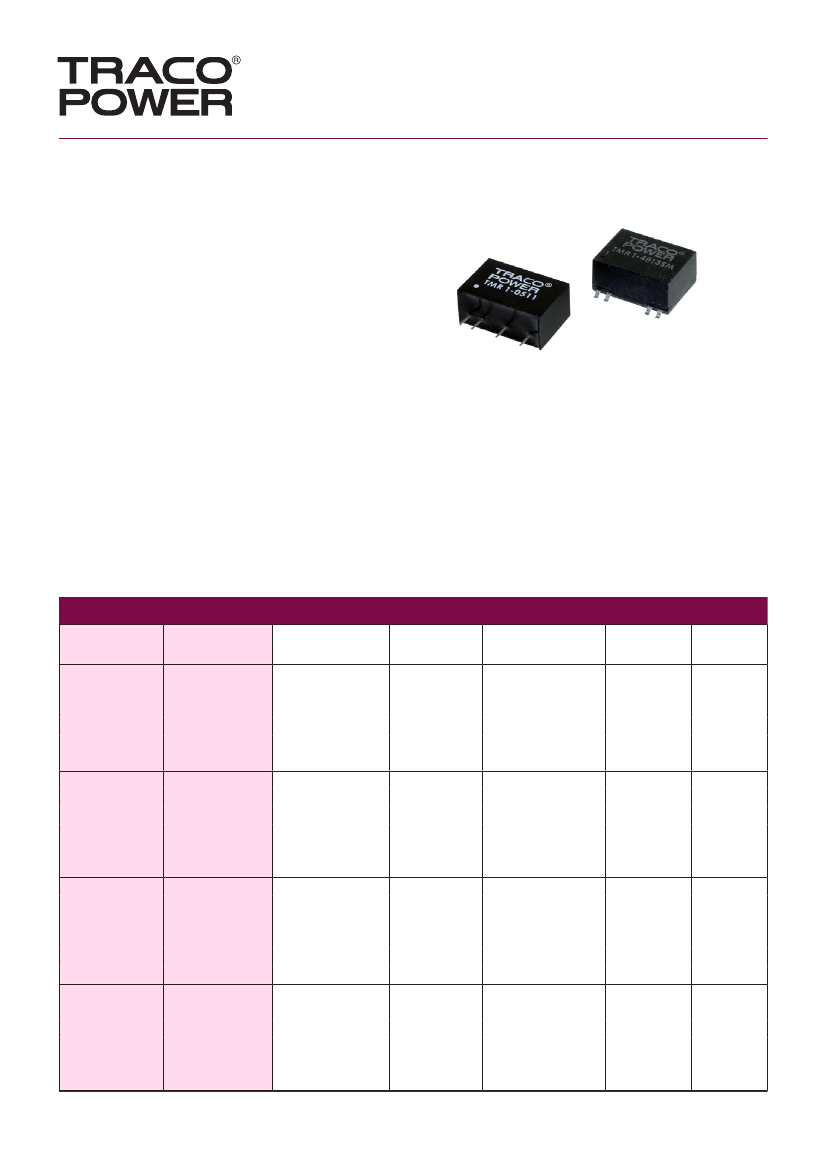

TMR 1 & TMR 1SM Series, 1 Watt
Features
◆
Wide 2:1 input voltage range
◆
Compact SIP-6 or SMD package
◆
Fully regulated outputs
◆
Cost optimised design
◆
No minimum load required
◆
Continuous short circuit protection
◆
Temperature range –40°C to +85°C
◆
I/O isolation 1500 VDC
◆
Remote On/Off control (SMD)
◆
3-year product warranty
CB
Scheme
The TMR-1 and TMR 1SM series are families of isolated 1 W dc-dc converter mod-
ules with regulated output, featuring wide 2:1 input voltage ranges. These products
come in a compact SIP-6 or SMD package with small footprint occupying only 1.2
cm
2
(0.2 square inch) of board space.
An excellent efficiency allows –40°C to +85°C operation temperature. Further fea-
tures include remote On/Off control (SMD-Version) and continuous short circuit
protection. The compact dimensions and cost optimised design make this converters
an ideal solution for applications in communication equipment, instrumentation and
industrial electronics.
Models
Order code
SIP-package
TMR 1-0511
TMR 1-0512
TMR 1-0513
TMR 1-0515
TMR 1-0522
TMR 1-0523
TMR 1-1211
TMR 1-1212
TMR 1-1213
TMR 1-1215
TMR 1-1222
TMR 1-1223
TMR 1-2411
TMR 1-2412
TMR 1-2413
TMR 1-2415
TMR 1-2422
TMR 1-2423
TMR 1-4811
TMR 1-4812
TMR 1-4813
TMR 1-4815
TMR 1-4822
TMR 1-4823
Order code
SMD-package
TMR 1-0511SM
TMR 1-0512SM
TMR 1-0513SM
TMR 1-0522SM
TMR 1-0523SM
TMR 1-1211SM
TMR 1-1212SM
TMR 1-1213SM
TMR 1-1222SM
TMR 1-1223SM
TMR 1-2411SM
TMR 1-2412SM
TMR 1-2413SM
TMR 1-2422SM
TMR 1-2423SM
TMR 1-4811SM
TMR 1-4812SM
TMR 1-4813SM
TMR 1-4822SM
TMR 1-4823SM
Input voltage range Output voltage
5.0 VDC
12 VDC
15 VDC
24 VDC
±12 VDC
±15 VDC
5.0 VDC
12 VDC
15 VDC
24 VDC
±12 VDC
±15 VDC
5.0 VDC
12 VDC
15 VDC
24 VDC
±12 VDC
±15 VDC
5.0 VDC
12 VDC
15 VDC
24 VDC
±12 VDC
±15 VDC
Output current
max.
200 mA
83 mA
67 mA
42 mA
±42 mA
±33 mA
200 mA
83 mA
67 mA
42 mA
±42 mA
±33 mA
200 mA
83 mA
67 mA
42 mA
±42 mA
±33 mA
200 mA
83 mA
67 mA
42 mA
±42 mA
±33 mA
Efficiency
SIP typ.
76 %
77 %
79 %
76 %
77 %
78 %
77 %
77 %
80 %
77 %
79 %
78 %
77 %
80 %
80 %
77 %
80 %
80 %
77 %
78 %
78 %
76 %
79 %
79 %
Efficiency
SMD typ.
78 %
79 %
81 %
79 %
80 %
79 %
79 %
82 %
81 %
80 %
79 %
82 %
82 %
82 %
82 %
79 %
80 %
80 %
81 %
81 %
Page 1 of 4
4.5 – 9.0 VDC
(5 VDC nominal)
9.0 – 18 VDC
(12 VDC nominal)
18 – 36 VDC
(24 VDC nominal)
36 – 75 VDC
(48 VDC nominal)
http://www.tracopower.com
DC/DC Converters
TMR 1 & TRM 1SM
Input Specifications
Input current at no load
(nominal input voltage)
5.0
12
24
48
5.0
12
24
48
5.0
12
24
48
V
V
V
V
V
V
V
V
V
V
V
V
models:
models:
models:
models:
models:
models:
models:
models:
models:
models:
models:
models:
40 mA typ.
20 mA typ.
10 mA typ.
7 mA typ.
15 V max.
25 V max.
50 V max.
100 V max.
4.5 VDC / 4 VDC
or lower
9 VDC / 8.5 VDC
or lower
18 VDC / 17 VDC
or lower
36 VDC / 34 VDC
or lower
long term operation at undervoltage will
damage the converter!
EN 55022 level A, FCC part 15, level A with
external capacitor.
see EMC consideration
5
12
24
48
V
V
V
V
models:
models:
models:
models:
500 mA
250 mA
120 mA
60 mA
±1 % max.
– Input variation Vin min. to Vin max.
– No load to full load
Single & Dual output models:
– Load variation 10 – 90%
Single output models:
Dual output models (balanced load):
0.2 % max.
±1.0 % max.
±0.5 % max.
±0.8 % max.
no minimum load required
0.02 %/K
SMD models:
30 mVp-p max.
SIP models:
50 mVp-p max.
250 µs typ.
(PFM)
>120 % of Iout max.
continuous, automatic recovery
5
12
15
24
±12
±15
– Operating
– Case temperature
– Storage
Load derating
Humidity
(non condensing)
Reliability, calculated MTBF
(MIL-HDBK-217F, at +25°C, ground benign)
VDC
VDC
VDC
VDC
VDC
VDC
models:
models:
models:
models:
models:
models:
1‘680 µF max.
820 µF max.
680 µF max.
470 µF max.
470 µF max.
(each output)
330 µF max.
(each output)
1 Watt
Surge voltage
(1 sec. max.)
Start-up voltage / under voltage lockout
Conducted noise
(input)
Recommended input fuse
(slow blow)
Output Specifications
Voltage set accuracy
Regulation
Minimum load
Temperature coefficient
Ripple and noise
(20 MHz bandwidth)
Transient response setting time
(25% load step change)
Current limitation
Short circuit protection
Capacitive load
General Specifications
Temperature ranges
SIP models:
–40°C to +85°C with no derating
SMD models:
–40°C to +82°C with derating
+105°C (SIP) / +95°C (SMD) max.
–55°C to +125°C
SMD models:
7.2 %/K above +75°C
95 % rel. H max.
>2.8 Mio h
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 2 of 4
DC/DC Converters
TMR 1 & TRM 1SM
General Specifications
Isolation voltage
(60 sec.)
Isolation capacitance
Isolation resistance
Switching frequency
Safety standards
–
Input/Output
–
Input/Output
–
Input/Output (500 VDC)
1’500 VDC
50 pF max.
>1 GOhm
220 kHz
(PFM)
UL 60950-1, IEC/EN 60950-1
IEC 60950-1:2005 (2nd Edition); Am 1:2009
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
– CB test certificate (IEC 60950-1)
–
On:
–
Off:
–
Off standby current:
–
Off control input current:
www.tracopower.com/products/tmr1-cb.pdf
< 0.6 VDC or open circuit
2.7 to 15 VDC
(ref. to –Vin)
2.5 mA max.
1 mA max.
non-conductive plastic
(UL94V-0 rated)
epoxy,
(UL 94V-0 rated)
3.1 g
(0.11oz)
(SIP)/3.3 g
(0.12oz)
(SMD)
max. 265°C / 10 sec.
(wave soldering)
as per
J-STD-020D.01
(to find at:
www.jedec.org
- free registration required)
level 2a as per
J-STD-033B.01
(to find at:
www.jedec.org
- free registration required)
www.tracopower.com/products/reach-declaration.pdf
RoHS directive 2011/65/EU
1 Watt
Safety approvals
Remote On/Off
(SMD models only)
Physical Specifications
Casing material
Potting material
Weight
Soldering profile for SIP-package models
Lead-free reflow solder process for SMD-package models
Moisture sensivity level
(for SMD-package models)
Environmental compliance
– Reach
– RoHS
EMC Consideration
Filter suggestion for to comply with EN55022 class A conducted noise emission
Single output models
L1
C1
-Vin
C2
-Vout
+Vin
+Vout
Load
C1
-Vin
C2
L1
Dual output models
+Vin
+Vout
Com.
-Vout
Load
Load
Input models
5 VDC
12 VDC
24 VDC SIP
24 VDC SMD
48 VDC SIP
48 VDC SMD
C1
4.7µF /50V, 1210 X7R
4.7µF /50V, 1210 X7R
4.7µF /50V, 1210 X7R
4.7µF /50V, 1210 X7R
4.7µF /100V 1210 X7R
2.2µF / 00V 1210 X7R
C2
L1
4.7µH / 1.2 A, SR0302
4.7µH / 1.2 A, SR0302
18µH / 0.58 A, SR0302
12µH / 0.75 A, SR0302
18µH / 0.58A, SR0302
18µH / 0.58A, SR0302
220pF /2 kV, 1808 X7R
Page 3 of 4
DC/DC Converters
TMR 1 & TRM 1SM
Outline Dimensions mm (inches)
SIP-Package
1 Watt
Pinout
11.0
(0.4)
Pin
1
2
4
5
6
single output
–Vin (GND)
+Vin (Vcc)
+Vout
No Pin
–Vout
dual output
–Vin (GND)
+Vin (Vcc)
+Vout
Common
–Vout
0.5
(0.02)
0.5
(0.02)
2.3
±0.4
(0.09
±0.02
)
2.54
(0.1)
5.08
(0.2)
2.54 2.54
(0.1)
(0.1)
0.5
(0.02)
17.0
(0.67)
SMD-Package
18.9 [0.74]
1.8 [0.1]
12.7 [0.5]
2.54
[0.1]
2.5
(0.10)
0.5
(0.02)
7.62
1
2
4
5
6
(0.30)
Bottom view
0.25
(0.01)
3.2
(0.13)
Pinout
Pin
1
2
6
7
8
9
single output
–Vin (GND)
Remote On/Off
ntc
ntc
+Vout
–Vout
dual output
–Vin (GND)
Remote On/Off
Common
–Vout
+Vout
Common
14
9
8
13.7 [0.54]
1
2
6
7
1.00 [0.04]
17.2 [0.68]
+Vin
+Vin
14
ntc = not to connect to electrical circuit
8.45 [0.33]
8.7 [0.34]
S SEATING
PLANE
0.25 [0.01]
1.1 [0.04]
15.0 [0.6]
0~
4
0.15 S
Dimensions in [mm], () = Inch
Tolerances: ±0.5 (±0.02)
Pin pitch tolerances: ±0.25 (±0.01)
Specifications can be changed without notice! Make sure you are using the latest documentation, downloadable at www.tracopower.com
Rev. August 30. 2013
www.tracopower.com
Page 4 of 4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TMR1-1211 Related Products

TMR1-1211 TMR1-1211SM TMR1-1212 TMR1-1212SM
Description DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-6/4 DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-14/7 DC-DC Regulated Power Supply Module, 1 Output, 0.996W, Hybrid, SIP-6/4 DC-DC Regulated Power Supply Module, 1 Output, 0.996W, Hybrid, SMD-14/7
Is it Rohs certified? conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 18 V 18 V 18 V 18 V
Minimum input voltage 9 V 9 V 9 V 9 V
Nominal input voltage 12 V 12 V 12 V 12 V
JESD-30 code R-PSMA-T4 R-PDMA-G7 R-PSMA-T4 R-PDMA-G7
length 17 mm 18.9 mm 17 mm 18.9 mm
Maximum load regulation 1% 1% 1% 1%
Number of functions 1 1 1 1
Output times 1 1 1 1
Number of terminals 4 7 4 7
Maximum operating temperature 85 °C 75 °C 85 °C 75 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Maximum output voltage 5.05 V 5.05 V 12.12 V 12.12 V
Minimum output voltage 4.95 V 4.95 V 11.88 V 11.88 V
Nominal output voltage 5 V 5 V 12 V 12 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum seat height 11.5 mm 9.2 mm 11.5 mm 9.2 mm
surface mount NO YES NO YES
technology HYBRID HYBRID HYBRID HYBRID
Temperature level INDUSTRIAL OTHER INDUSTRIAL OTHER
Terminal form THROUGH-HOLE GULL WING THROUGH-HOLE GULL WING
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location SINGLE DUAL SINGLE DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum total power output 1 W 1 W 0.996 W 0.996 W
Fine-tuning/adjustable output NO NO NO NO
width 7.62 mm 13.7 mm 7.62 mm 13.7 mm

Recommended Resources

Stepping 1V voltage regulator circuit

monostable circuit

RS232 stepper motor control circuit

Variable LC Oscillator Circuit

Boost circuit (charge pump) using LTC3200

UHF prestage circuit with n-type regulation network

Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. 0402ZK8R2FASTR
  2. VEMV62T33-40.0-2.0/-40+85
  3. 396-070-558-801
  4. RSMF22.7K2%R
  5. IC122-20720-0BS4L
  6. SSN08A4302JP
  7. 1210RB682K501PRTM
  8. RC2512DK-07825KL
  9. SC2128A-C31S
  10. A1501WRD-S-5P-DP
  11. UPZ2012D800-4R0TF
  12. CFR0W4J075JA50

Popular Articles

  1. Types, characteristics and applications of magnetic flap indicators in magnetic flap level gauges
  2. Nondestructive testing of pear hardness based on acoustic vibration response method using power amplifier
  3. Teledyne e2v launches industry’s smallest 2 and 1.5 megapixel CMOS sensors
  4. How to use a multimeter to measure the output current of a solar panel
  5. 4412 PWM
  6. The main purpose of the ground resistance tester
  7. STM8L151C8 study notes 1: LED driver
  8. Redmi K50 Gaming Edition: High refresh rate straight screen + full-blooded 120W fast charging
  9. 6 common problems when using spectrum analyzers
  10. 12V to 30V high power 2x100W dual channel Class D audio amplifier boost combination solution

Technical ResourceMore

  1. Electronic skills basics pdf
  2. SPWM Inverter Power Supply Based on PIC Microcontroller
  3. Multi-layer design improves fuse performance
  4. Advanced LED wafer-level packaging technology
  5. Lightning protection solution for computer room
  6. Hall Effect and Its Applications
  7. JBT 3780-2002 Ordinary intermediate relay
  8. Analysis of the influence of FACTS components on distance protection
  9. SHENZHEN GELLE INDUSTRY CO LTD
  10. 9V laminated battery Terminator No.1

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2873  2723  1949  1345  165  58  55  40  28  4
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
