F200-50.000MHZ-AE0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> F200-50.000MHZ-AE0

F200-50.000MHZ-AE0: DescriptionHCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size111KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

F200-50.000MHZ-AE0 Overview

HCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

F200-50.000MHZ-AE0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99

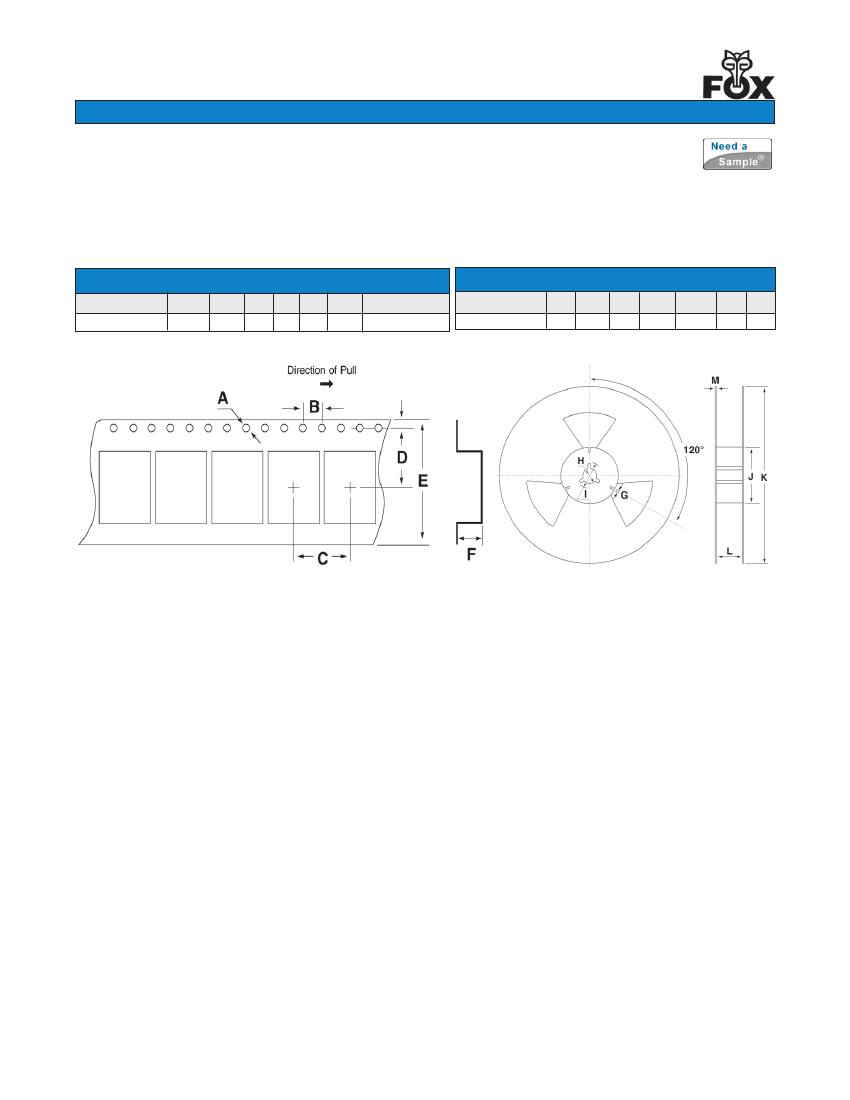

Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	3.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.6mm x 2.1mm x 1.0mm
longest rise time	3.5 ns
Maximum supply voltage	1.05 V
Minimum supply voltage	0.95 V
Nominal supply voltage	1 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

HCMOS 2.5x2mm 1.0 V SMD Oscillator

Model: F200 SERIES

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 12/2/2010

http://www.foxonline.com/need_a_sample.htm

• PART nuMbER SELECTIOn

Learn More - Internet Required

Part Number

823-Frequency-xxxxx

823A-Frequency-xxxxx

823B-Frequency-xxxxx

823C-Frequency-xxxxx

823D-Frequency-xxxxx

823E-Frequency-xxxxx

823F-Frequency-xxxxx

Model Frequency

Operating

Number Stability

Temperature (ºC)

±100PPM

-10 ~ +70

F200

-40 ~ +85

F200R

±100PPM

-10 ~ +70

±50PPM

F205

±50PPM

-40 ~ +85

F205R

±25PPM

-10 ~ +70

F206

-40 ~ +85

F206R

±25PPM*

-10 ~ +70

±20PPm*

F208

Frequency

Range (MHz)

1.800 ~ 50.000

2.6 Ma x

T op

V ie w

Dot de note s

p in 1 .

2.1 m a x

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

1.800 ~ 32.100 MHz

32.100+ ~ 50.000 MHz

Output Symmetry (50% V

)

Rise Time (20% ~ 80% V

)

1.800 ~ 32.100 MHz

32.100+ ~ 50.000 MHz

Fall Time (80% ~ 20% V

)

1.800 ~ 32.100 MHz

32.100+ ~ 50.000 MHz

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

1.800 ~ 50.000 MHz

-55ºC ~ +125ºC

1.0V ± 5%

2.5mA

3.5mA

40% ~ 60%

5.0nS

3.5nS

5.0nS

3.5nS

20% V

80% V

Min

2mA Min

-2mA Min

15pF

5µA

5mS

250nS

5mS

260ºC / 10 Seconds

1.0 Ma x

0.78

B ottom

V ie w

0.68

0.65

0.95

R e c om m e nde d

S o ld e r P a d L a y o u t

0.95

0.8

0.65

0.9

All dimensions are in millimeters.

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, shock,

and vibration. *Excludes shock and vibration.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Notes:

*A 0.01µF capacitor should be placed between V

(Pin 4) and GND (Pin 2) to minimize power

supply noise.

*Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

P in C o n n e c t io n s

# 1 E /D

#2 GND

# 3 O u t pu t

# 4 V

• EnAbLE / DISAbLE FunCTIOn

OUTPUT (Pin 3)

Pin 1

ACTIVE

OPEN

ACTIVE

'1' Level V

≥

70% V

High Z

'0' Level V

≤

30% V

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

www.foxonline.com

EMEA

Tel: +44.11283.568153 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
