IL-AG5-5SK-S3C1-LB datasheet, PDF

Datasheet> All Categories > The connector> The connector> IL-AG5-5SK-S3C1-LB

IL-AG5-5SK-S3C1-LB: DescriptionCombination Line Connector, 5 Contact(s), Female, Crimp Terminal, Socket; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric View All

IL-AG5-5SK-S3C1-LB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-AG5-5SK-S3C1-LB	-	-	View	Buy Now

IL-AG5-5SK-S3C1-LB Overview

Combination Line Connector, 5 Contact(s), Female, Crimp Terminal, Socket

IL-AG5-5SK-S3C1-LB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: IL-AG5-C1-5000, POLARIZED
body width	0.504 inch
subject depth	0.969 inch
body length	0.634 inch
Body/casing type	SOCKET
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	YES
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.055 inch
Insulation resistance	100000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell material	POLYBUTYLENE TEREPHTHALATE
Terminal length
Termination type	CRIMP
Total number of contacts	5
Maximum wire diameter	20 AWG
Minimum wire diameter	22 AWG

Preview

Download Datasheet

View All

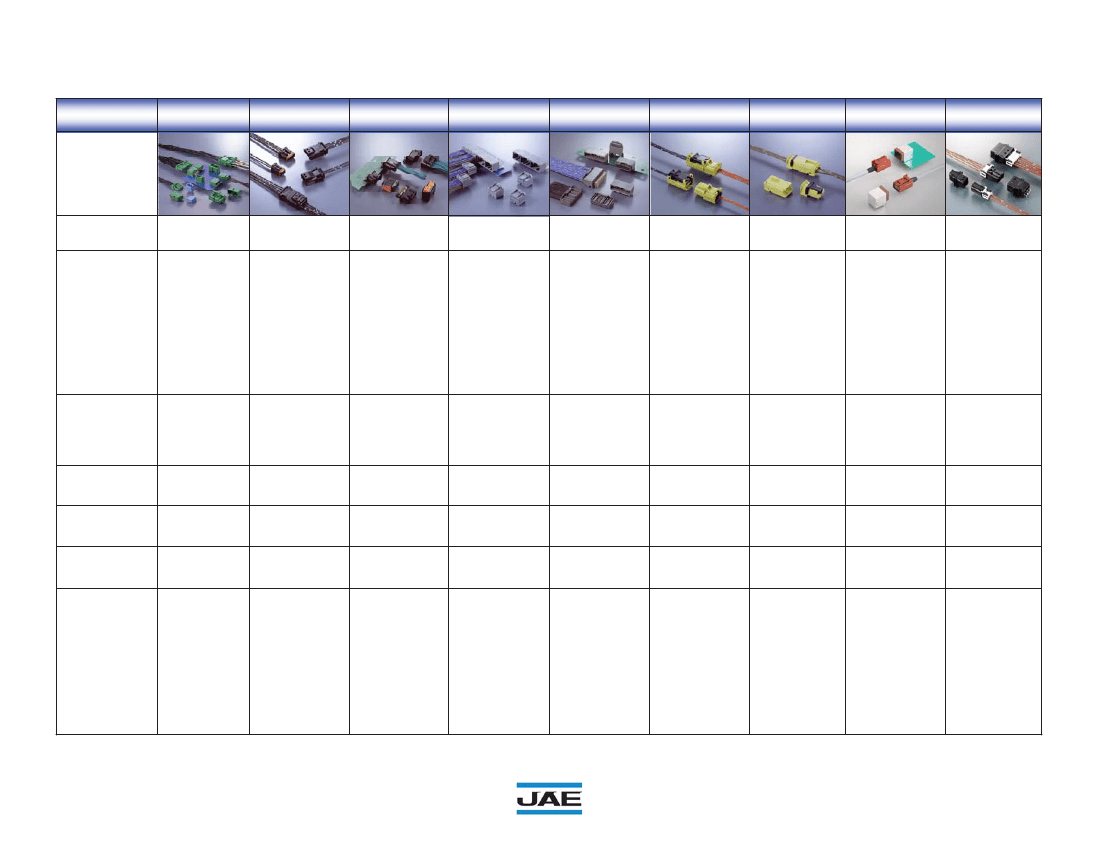

v2.2

Transportation

Socket Housing:

Pin housing:

IL-AG5-#S- S3C1

IL-AG5-#P- S3C1

IL-AG5-#P- S3L2

S: single row

D: double row

Contacts

IL-AG5-C1-5000

(socket)

IL-AG5-PC1-5000

(pin)

CT150-1-AG5

3502-AG5-2

350-AG5-3B

Socket housing:

Pin housing:

Front cap:

MX3600#SQ3

MX3600#PQ3

MX36004XF3

Contacts:

M36S08K4Q3 (socket)

M36P08K4Q3 (pin)

350-MX36-2

350-MX36-3B

L: right angle

T: straight

Hand tool:

Semi auto:

Automatic:

Semi auto:

Automatic:

Socket housing:

Contacts:

MX37004SP3

MX37004PP3

Contacts:

Socket

M37S07K4P3

M37P75C4P3

Socket housing:

Pin housing:

MX1900#S51

1: Black

2: Gray

Dummy pin:

Hand Tool:

Semi auto:

MX19S10K451 (socket)

MX19P10K451 (pin)

MX19000XD1

CT150-4C-MX19

3502-MX19-2B

Pin housing:

Semi Auto: 350-MX37S-2 350-MX37P-2

Automatic: 350-MX37S-3B 350-MX37S-3B

MX1900#P51

Socket housing:

Pin header:

Front cap:

MX23A##SF1

MX23A##NF1

MX23A##XF1

1: Standard

2: Reverse

Contacts:

Dummy pin:

Hand tool:

Semi auto:

M23S05K351

M120-55780

CT160-3B-MX23

350-MX23-2

Socket housing:

Pin header:

Retainer:

Wire seal:

MX44###SF1

MX44###NF1

MX44###XR1

MX44000XP1

Wire O.D.

1, 1.4-1.5mm

2: 1.6-1.7mm

Contacts:

Hand Tool:

Semi Auto:

M44S05K4F1

CT150-2-MX44

3502-MX44-2

Socket housing:

MX340##SF1

Pin header:

MX340##UF1

U: Straight

N: Angled

1: 3-24 pos

2: 28-40 pos

Socket housing:

MX31 ### SG A

31, 34, 35 pos

Modification code

Pin header:

MX31 ### N F D

Contacts

M34S75C4F1

M34S75C4F2

M34S75C4F3

M34S75C4F4

Hand Tool

CT150-2-MX34

CT150-1-MX34

N/A

Semi auto

350-MX34D-2

350-MX34C-2

Automatic

350-MX34B-3B

350-MX34C-3B

Contacts

M31S07K4FA (Sn, signal)

M31S07K4QA (Au, signal)

M31S07K4FB (Sn, signal)

Wire (AWG)

#22-20

#24

#18-16

#22-18

70, 104. 135 pos

Modification code

F: All Sn plated contacts

Q: Selective gold plated contacts

Semi Auto

350-MX31A-2

350-MX31B-2

Automatic

350-MX31A-3B

350-MX1A-3B

350-MX31B-3B

Board Mounting Receptacle:

MX39004NQ1

USB Harness:

MX45004S0008397

(150mm)

M31S05K3FA (Sn, power)

M31S05K4FA (Sn, power)

M31S05K4QA (Au, power)
