BL-HY034A: DescriptionSingle Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3; CategoryLED optoelectronic/LED photoelectric; File Size85KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HY034A Overview

Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3

BL-HY034A Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-3
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	10.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2 mm
method of packing	BULK
peak wavelength	583 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	100 deg

Preview

Download Datasheet

View All

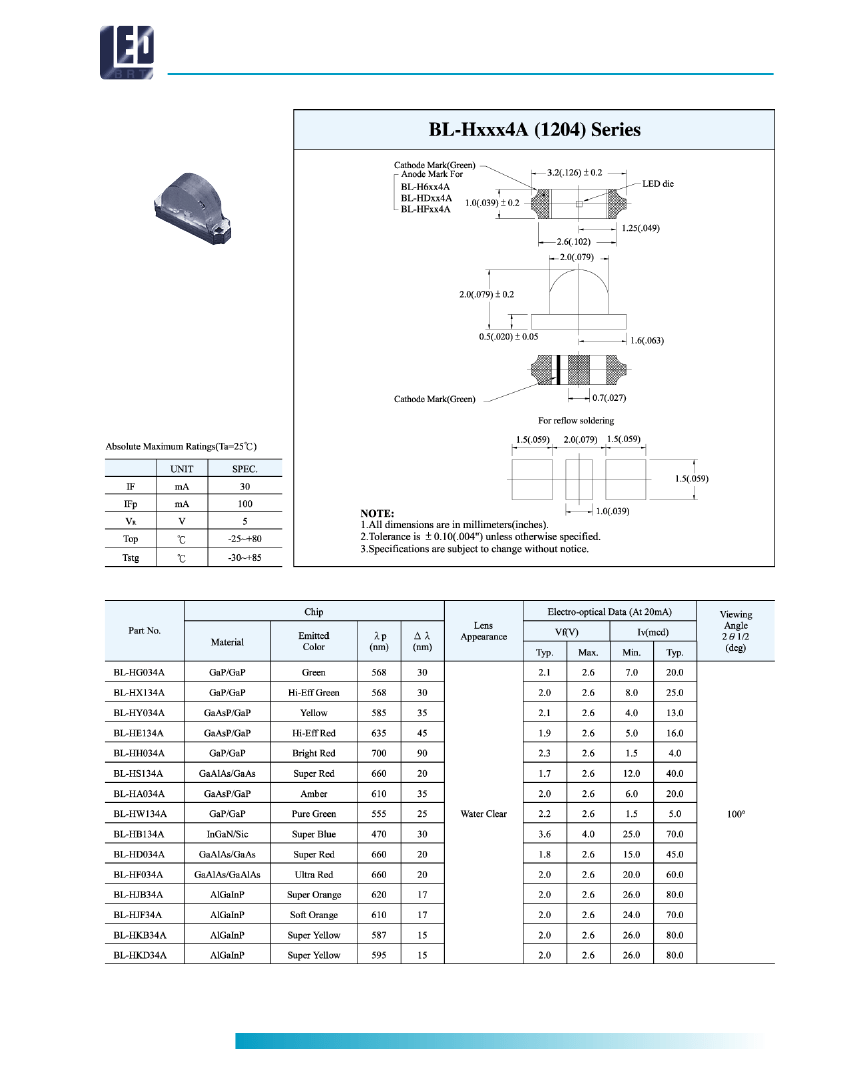

Surface Mount Chip LED Lamps

BL-H Series 1204

Side view

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

.

7

BL-HY034A Related Products

	BL-HY034A	BL-HS134A	BL-HX134A	BL-HH034A	BL-HJF34A	BL-HJB34A	BL-HB134A
Description	Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED, High Efficiency Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED, Bright Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED, Super Amber, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED, Super Orange Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-3	Single Color LED
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
package instruction	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	-
color	YELLOW	SUPER RED	HIGH EFFICIENCY GREEN	BRIGHT RED	SUPER AMBER	SUPER ORANGE RED	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum forward current	0.03 A	0.03 A	0.03 A	0.015 A	0.03 A	0.03 A	-
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-
Nominal luminous intensity	10.0 mcd	20.0 mcd	20.0 mcd	1.1 mcd	70.0 mcd	70.0 mcd	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of functions	1	1	1	1	1	1	-
Number of terminals	3	3	3	3	3	3	-
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	-
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-
total height	2 mm	2 mm	2 mm	1 mm	2 mm	2 mm	-
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	-
peak wavelength	583 nm	660 nm	568 nm	700 nm	610 nm	620 nm	-
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	-
surface mount	YES	YES	YES	YES	YES	YES	-
perspective	100 deg	100 deg	100 deg	100 deg	100 deg	100 deg	-
Base Number Matches	-	1	1	1	1	1	-
