HX421C14FBK4/32
32GB (8GB 1G x 64-Bit x 4 pcs.)
DDR4-2133 CL14 288-Pin DIMM
SPECIFICATIONS
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
14 cycles
46.5ns(min.)
260ns(min.)
32.75ns(min.)
TBD W*
94 V - 0
0
o
C to +85
o
C
-55
o
C to +100
o
C
*Power will vary depending on the SDRAM used.
DESCRIPTION
HyperX HX421C14FBK4/32 is a kit of four 1G x 64-bit (8GB)
DDR4-2133 CL14 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 512M x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each
module has been tested to run at DDR4-2133 at a low latency
timing of 14-14-14 at 1.2V. Additional timing parameters are
shown in the Plug-N-Play (PnP) Timing Parameters section
below. The JEDEC standard electrical and mechanical
specifications are as follows:
Note:
The PnP feature offers a range of speed and timing options to support
the widest variety of processors and chipsets. Your maximum speed will
be determined by your BIOS.
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• Height 1.340” (34.04mm), w/heatsink
JEDEC/XMP TIMING PARAMETERS
•
•
JEDEC/PnP:
DDR4-2133 CL14-14-14 @1.2V
XMP Profile #1: DDR4-2133 CL14-14-14 @1.2V
Continued >>
kingston.com/hyperx
Document No. 4807241-001.B00
04/21/15
Page 1
continued
HyperX
MODULE WITH HEAT SPREADER
133.35 mm
7.08 mm

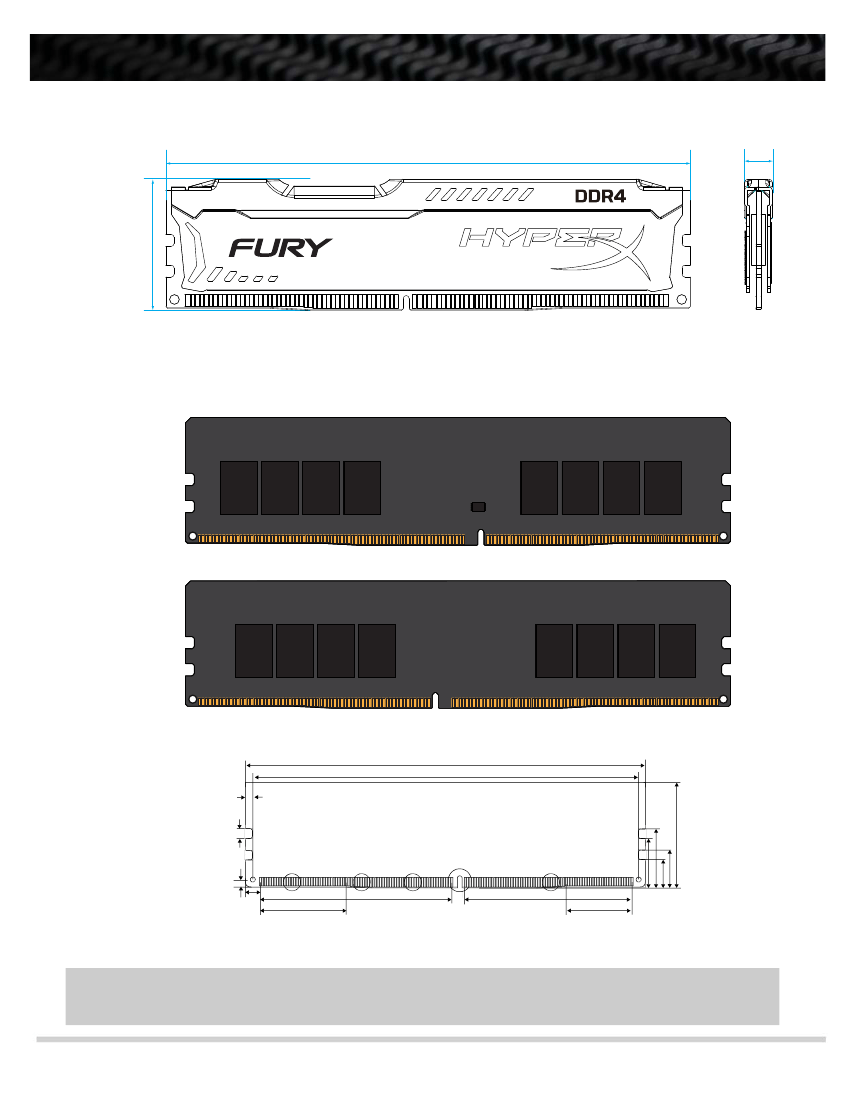

MODULE DIMENSIONS
34.04 mm
133.35
129.55
2.10±0.15
3.00
2.70±0.15
Pin 1
Detail A
Pin 35
Detail B
Pin 47
Detail D
Detail E
Pin 105
Detail C
Pin 117
3.35
28.90
64.60
56.10
22.95
FOR MORE INFORMATION, GO TO WWW.KINGSTON.COM/HYPERX
All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at the
published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers faster than
the published speed. Overclocking or modifying your system timing may result in damage to computer components.
kingston.com/hyperx
Document No. 4807241-001.B00
14.60
17.60
8.00
11.00
31.25
Page 2
