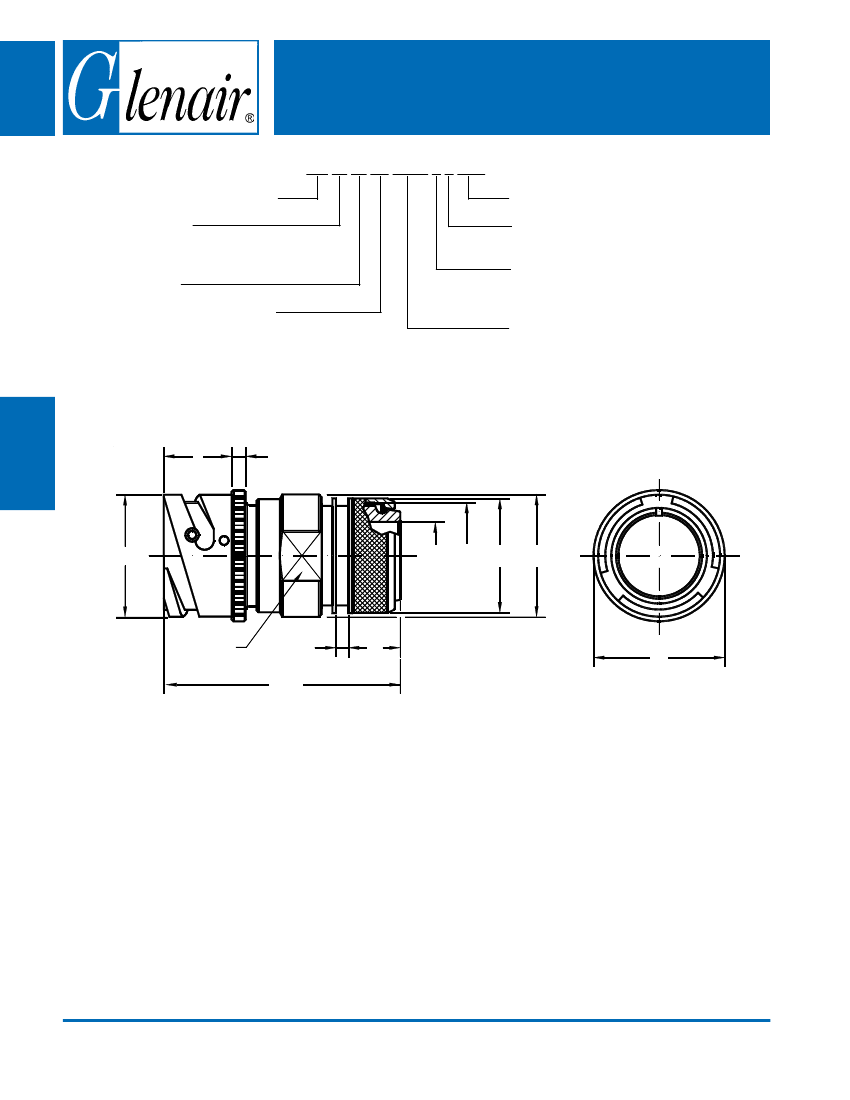

ITS 3101 (SP) and ITS 4101 (SP)
In-Line Cylindrical Receptacle Assembly
with Backshell for EMI/RFI Shield Termination
B
ØA
J
3.5
L
L1
C Thread
ØB
ØD
ØE
Series ITS
Reverse Bayonet Coupling
Contact Type
31 - Solder
41 - Crimp
01 - In-Line
M
K
Application Notes:
© 2010 Glenair, Inc.
ITS 31 01 SP 20-27 P Y XXX
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Section A)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Contact Arrangements,
Section A)
Connector/Backshell Class
SP - Environmental; Supplied with
Grommet and EMI/RFI Backshell
ØQ
1. In-line receptacle with EMI/RFI shield termination backshell with rotating coupling nut. Cable shield is
terminated with a “braid-trap” nut. Heat-shrink tubing may also be attached for additional environmental and
mechanical protection.
2. Connector/Backshell Class “SP” (environmental)—Wire sealing grommet supplied.
3. Standard materials configuration consists of aluminum alloy. For platings, see TABLE II finish options.
4. Standard contact material consists of copper alloy with silver plating or gold plating.
5. A broad range of additional connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is synthetic rubber.
Add “FR” prefix to front of part number to specify fire resistant inserts.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-52
with Backshell for EMI/RFI Shield Termination
TABLE I: DIMENSIONS
ØA
+0
-0.1
18.2
24.5
27.2
27.2
30.7
34.0
37.3
40.9
46.7
53.4
59.6
65.5
ØB
min.
8.5
12.0
14.5
14.5
17.5
19.5
22.0
25.0
29.0
34.0
38.5
48.0
C thread
M16 x 1
M20 x 1
M23 x 1
M23 x 1
M26 x 1
M30 x 1
M32 x 1
M36 x 1
M39 x 1
M45 x 1
M52 x 1
M59 x 1
ØD
±0.2
18.5
22.3
25.3
25.3
28.0
32.3
34.3
38.3
41.2
48.3
55.0
62.0
ØE
±0.2
22.0
25.0
28.0
28.0
30.0
34.5
38.0
41.0
48.0
54.0
61.0
68.0
J key
20
23
26
26
28
32
36
39
46
52
58
65
K
±0.2
2.8
3.3
3.3
3.3
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L
Max.
52.0
52.0
54.0
63.0
64.5
64.5
64.5
66.0
66.0
67.5
68.0
68.0
L1
Max.
13.5
13.5
14.6
14.6
14.6
14.6
14.6
14.6
14.6
14.6
15.5
15.5
Shell Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
40
M
+0.2
-0
14.3
14.5
14.5
19.1
19.1
19.1
19.6
20.6
20.7
22.3
22.3
22.3
ØQ
±0.1
21.8
28.8
30.5
30.5
33.8
36.9
39.5
43.9
48.4
56.0
62.4
68.6
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
B1
Connector Less Contacts
Connector with Gold Plated Contacts
Omit for standard version (Silver plated)
FINISH OPTIONS
Sym Description and RoHS compliant (*)
F2
F6
F7
F8
F11
Bright Nickel Plating (*)
Black Electrodeposited Paint (*)
Black Zn-Co Plating (*)
Olive Drab Zn-Co Plating
Electroless Nickel (*)
Omit for standard version
