Cannon 75 Ohm Connectors
1.0/2.3

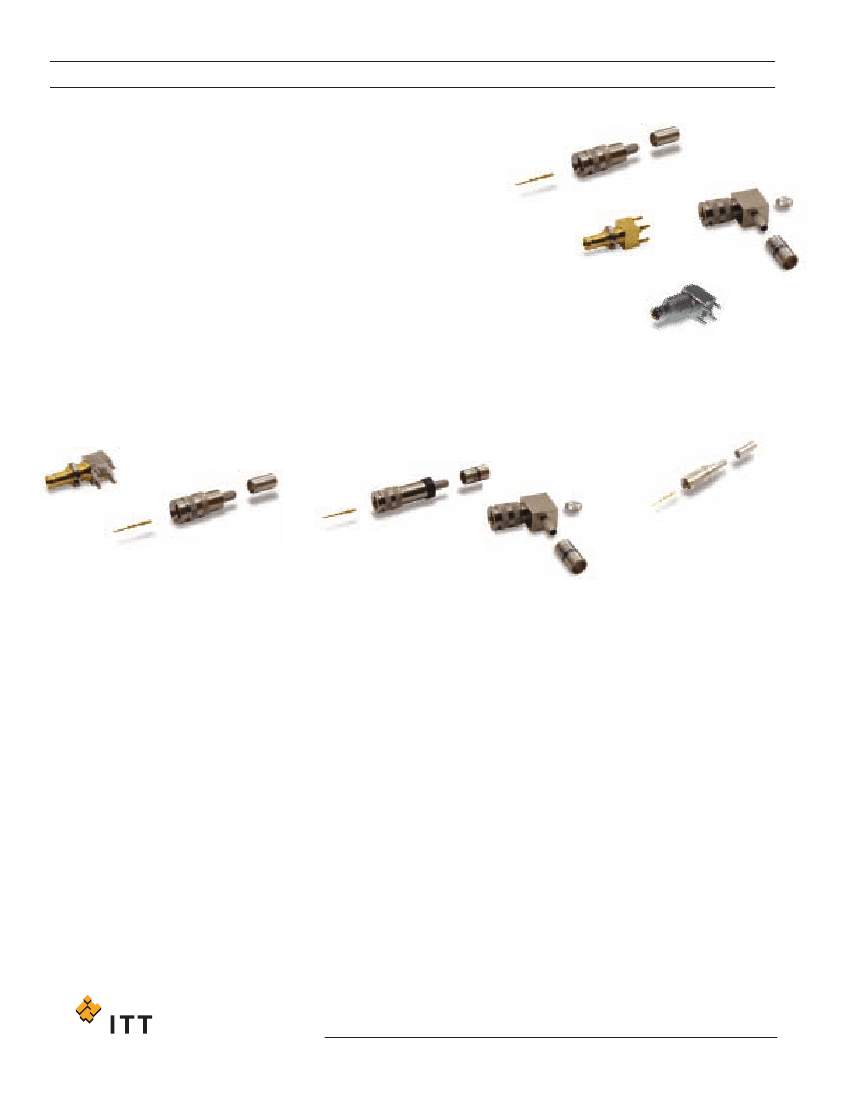

The Cannon 75 ohm 1.0/2.3 connector series are widely used in appli-
cations requiring a high density solution and have become a standard
in telecommunications in many parts of the world.
Designed to meet the requirements of DIN 47247 and CECC 22230,
these connectors feature a push/pull coupling mechanism to ensure
mating integrity and a snap-on interface for ease of connection. Due to
their small size these connectors can be densely packed while provid-
ing significant space savings over other 75 ohm connector products.
In addition, we offer the Type 54 version of the 1.0/2.3 connector which
meets the requirements of BT RC9333. The Type 54 connector com-
bines the 1.0/2.3 interface and push-pull locking system with the termi-
nation methods and tooling benefits of the Type 43 (SMZ) connector.
Our newest product offering for this connector series is the 1.0/2.3 HD
(High Density) connector. By re-engineering the latching mechanism
we were able to successful reduce the size of the connector by 20%
allowing even greater density than the standard 1.0/2.3 plug.
Choice of 3 styles – Standard, High Density or Type 54
NEW aller
Sm
20%
DIN 1.0/2.3
1.0/2.3 - Type 54
1.0/2.3 HD (High Density)
Applications
• Switching Equipment • DSX Cross Connects • Base Stations • Routers • Wireless • Telecom • LAN Equipment
Features and Benefits
Push-pull locking mechanism for
secure coupling and ease of
engagement and separation
Designed for the most commonly
used cables in North America and
Europe
New High Density version with
6.2mm outside diameter
Three-part construction with crimp
inner contact and outer ferrule (no
soldering required)
Ideal for applications requiring a
high density solution (space sav-
ings)
Uses industry standard crimp
tooling
Available in a Type 54
configuration
Cable connectors designed for field
installation
High performance gold plated
contact area ensures reliable long
term operation
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
12

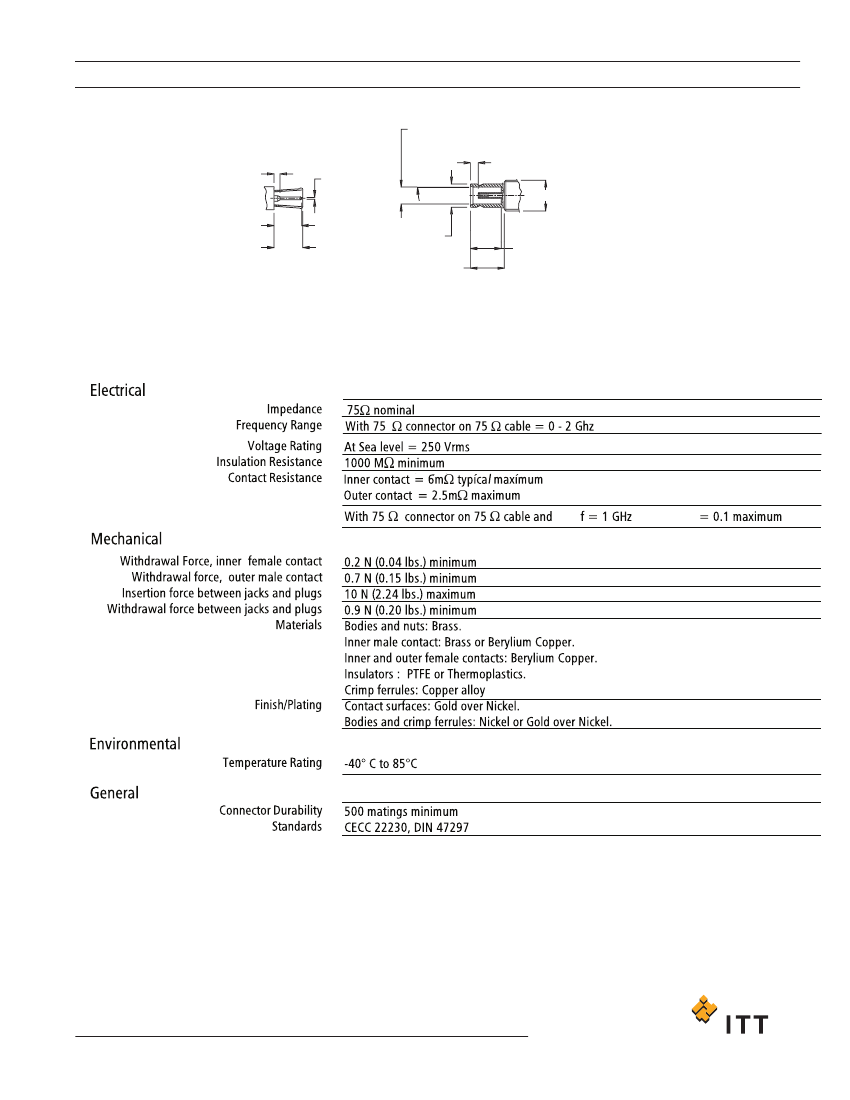

Cannon 75 Ohm Connectors
1.0/2.3

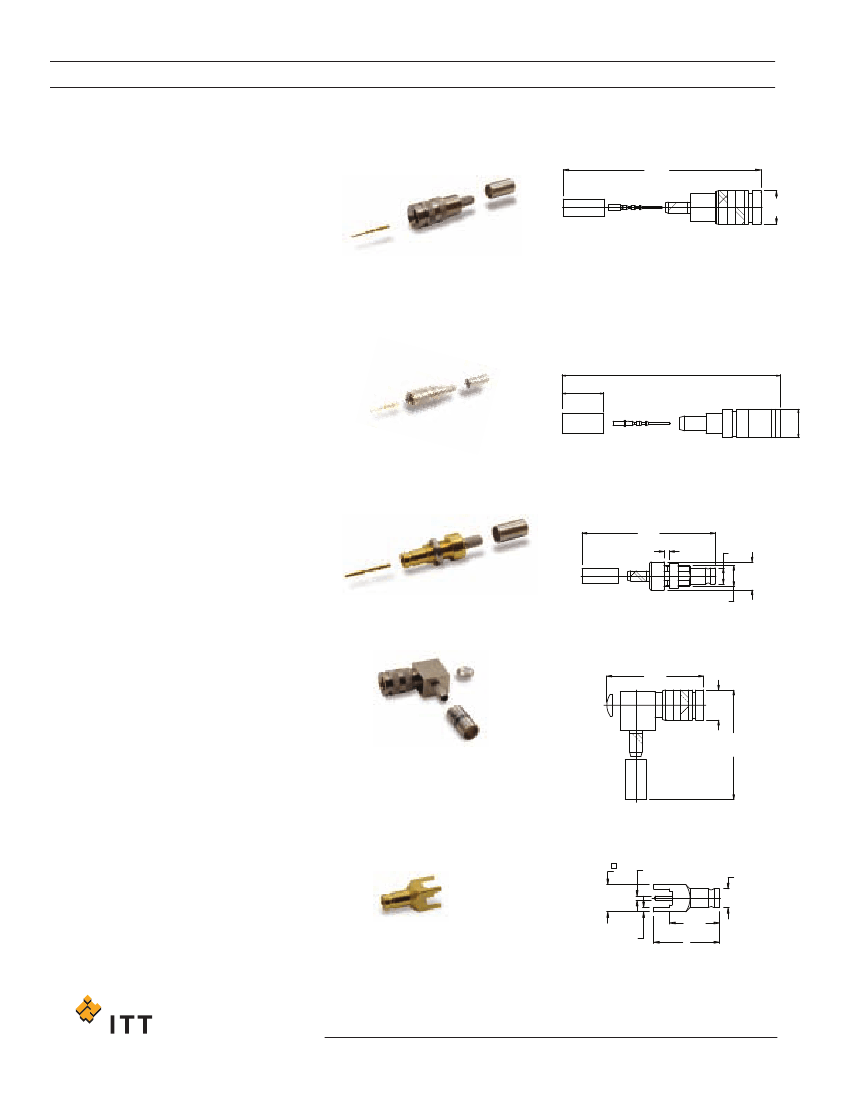

1.0/2.3 Straight Plug
Part Number
Cable Type
D55-F24-3022GDA
ST212 / CT1320/735A (alt)
D55-F24-3024GDA
ST214
D55-F24-3033GDA
BT2003
D55-F24-3035GDA
BT3002/TZC75024
D55-F24-3037GDA
RA7000
D55-F24-3038GDA
RA8000
D55-F24-3049GDA
734A
D55-F24-3050GDA
735A
D55-F24-3052GDA
0.4/2.42/4.07
D55-F24-3069GDA
1855A / SDV-LFH
D55-F24-3079GDA
RG179B/U
Assembly Instructions: BBAI 1269
~26.00
(1.023)
MAX
ø 7.70
(.303)
1.0/2.3 HD (High Density) Plug
Part Number
D55-F24-3922GDA
D55-F24-3935GDA
D55-F24-3950GDA
D55-F24-3979GDA
Cable Type
ST212/CT1320/735A (alt)
BT3002/TZC75024
735A
RG-179B/U
NEW aller
Sm
20%
9,00
(0.354)
25,05
(0.986)
Assembly Instructions: BBAI 1269
1.0/2.3 Straight Bulkhead Jack
Part Number
D55-F27-3035GEA
D55-F27-3079GEA
Cable Type
BT3002/TZC75024
RG179B/U
~26.00
(1.023)
MAX
MAX. PANEL 2.50 (.098)
ø 4.15
(.163)
ø 7.30
(.287)
M 5.5x0.5
Assembly Instructions: BBAI 1281
1.0/2.3 Right Angle Plug
Part Number
D55-F28-3233A9A
D55-F28-3235A9A
D55-F28-3236A9A
D55-F28-3237A9A
D55-F28-3050A9A
Cable Type
BT2003
BT3002/TZC75024
BT5000
RA7000
735A
~22.00
(.866)
MAX
ø 7.70
(.303)
22.00
(.866)
MAX
Assembly Instructions: BBAI 1041
Contact Customer Service for other cable types
1.0/2.3 Straight PCB Mount Jack
Part Number
D51-F51-9002GBA
6.00
(.236)
ø 0.90
(.035)
ø 4.15
(.163)
0.95 (.037)
4 POSNS
11.00
(.433)
14,5
(.571)
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
14
ø 6,20
(0.244)
Cannon 75 Ohm Connectors

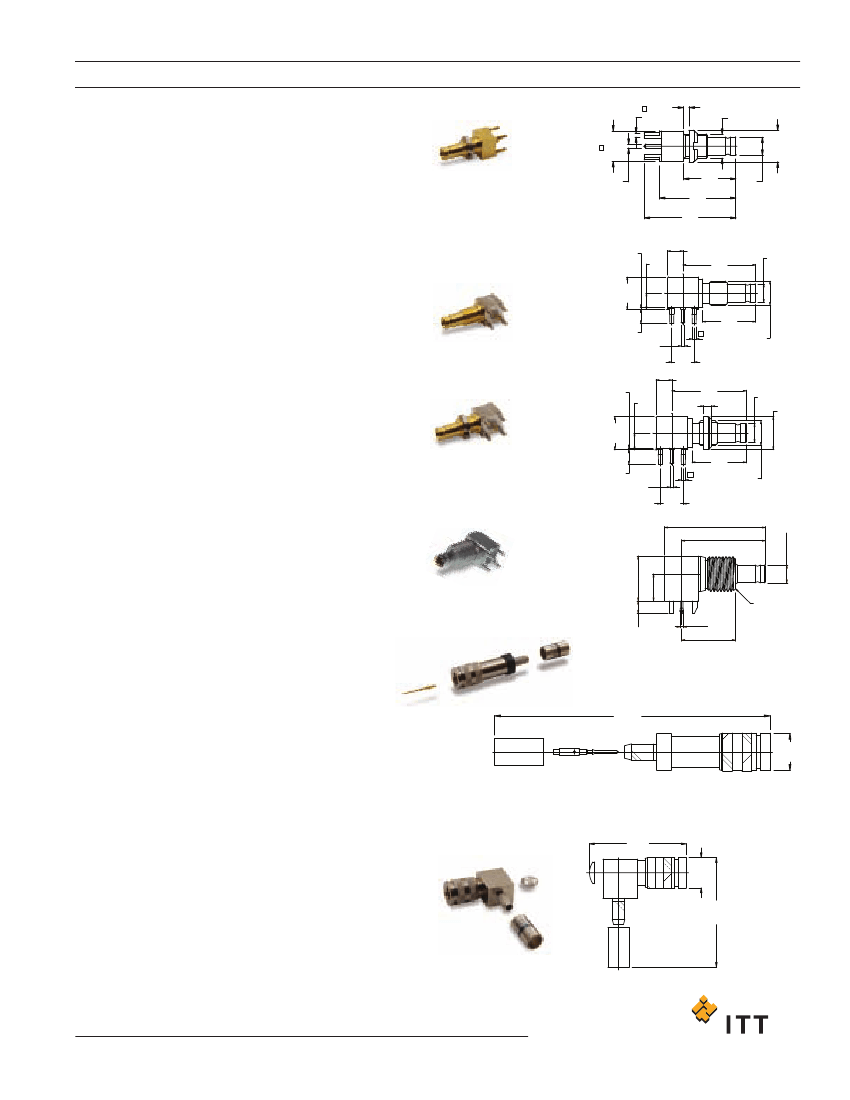

Type 54 (1.0/2.3)
1.0/2.3 Straight PCB Mount Bulkhead Jack
Part Number
D51-F51-9006GBA (with lock nut)
7.00
(.275)
12.00
(.472)
17.50
(.688)
21.00
(.826)
3.50
(.137)
ø 4.15
(.163)
0.90
(.035)
4 POSNS
MAX.P
ANEL 2.00 (.078)
M 5.50x0.50
ø 7.25
(.285)
ø 0.90
(.035)
0.40
(.015)
1.0/2.3 Right Angle PCB Mount Bulkhead Jacks
Part Number
D51-F53-9015GBA
7.40
(.291)
3.20
(.125)
3.70
(.145)
16.50
(.649)
ø 4.15
(.433)
12.00
(.472)
0.80
(.031)
5.08
(.200)
0.80
(.031)
M5.5x0.5
0.40
(.015)
3.50
(.137)
3.70
(.145)
16.50
(.649)
1.80
(.070)
ø 4.15
(.433)
ø 7.3
(.287)
D51-F53-9018GBA (with Lock nut)
7.40
(.291)
12.00
(.472)
M5.5x0.5
3.20
(.125)
0.80
(.031)
0.80
(.031)
5.08
(.200)
051-F53-9059EAA
10,49
(0.413)
6,29
(0.248)
19,56
(0.770)
5/16-32 UNEF-2A
B0023382 Panel Mounting Hardware Kit
(Spacer, Washer, Lockwasher, Lock Nut)
2,92
(0.115)
ø 0,97
(0.038)
12,56
(0.494)
Type 54 Straight Plug
Part Number
D55-F24-3133GDA
D55-F24-3135GDA
D55-F24-3136GDA
D55-F24-3137GDA
D55-F24-3138GDA
Cable Type
BT2003
BT3002/TZC75024
BT5000
RA7000
RA8000
Industry
Plug 54/3B
Plug 54/5B
Plug 54/6B
Plug 54/7B
Plug 54/8B
~35.50
(1.397)
MAX
Assembly Instructions: BBAI 1265
~22.00
(.866)
MAX
Type 54 Right Angle Plug
Part Number
D55-F28-3233A9A
D55-F28-3235A9A
D55-F28-3236A9A
D55-F28-3237A9A
D55-F28-3238A9A
Assembly Instructions:
Cable Type
BT2003
BT3002/TZC75024
BT5000
RA7000
RA8000
BBAI 1041
Industry Reference
Plug 54/3A
Plug 54/5A
Plug 54/6A
Plug 54/7A
Plug 54/8A
ø 7.70
(.303)
22.00
(.866)
MAX
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
15
ø 4,15 MAX.
(0.163)
ø 7.70
(.303)
23,52
(0.926)
