MN5140 datasheet, PDF - EEWORLD Datasheet

MN5140: DescriptionADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, Bipolar, CDIP18, HERMETIC SEALED, DIP-18; CategoryAnalog mixed-signal IC converter; File Size4MB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

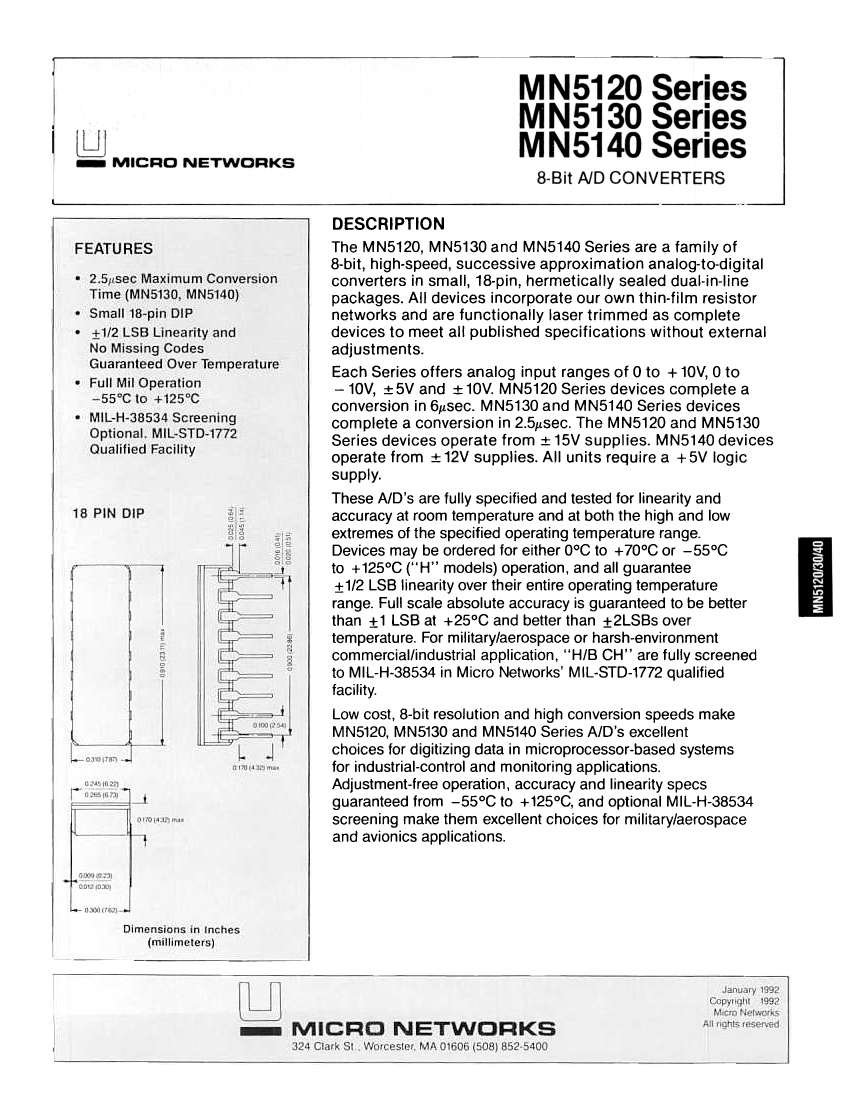

MN5140 Overview

ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, Bipolar, CDIP18, HERMETIC SEALED, DIP-18

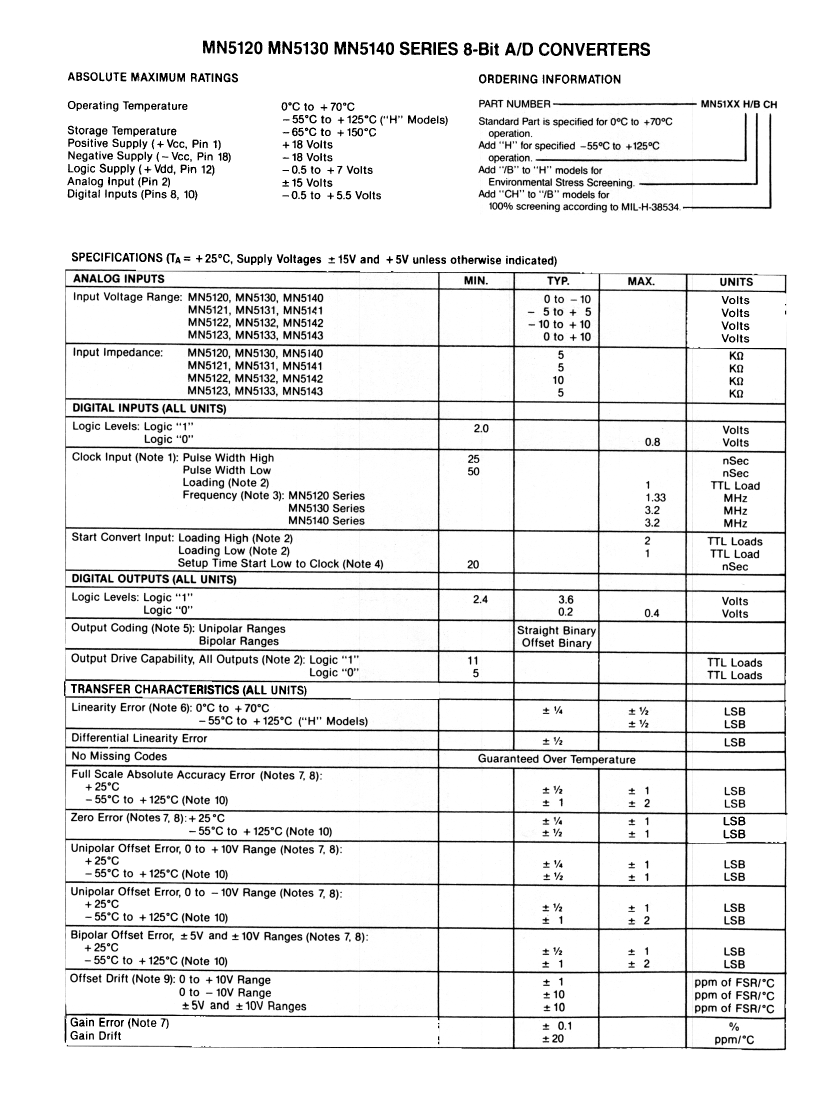

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	10 V
Minimum analog input voltage

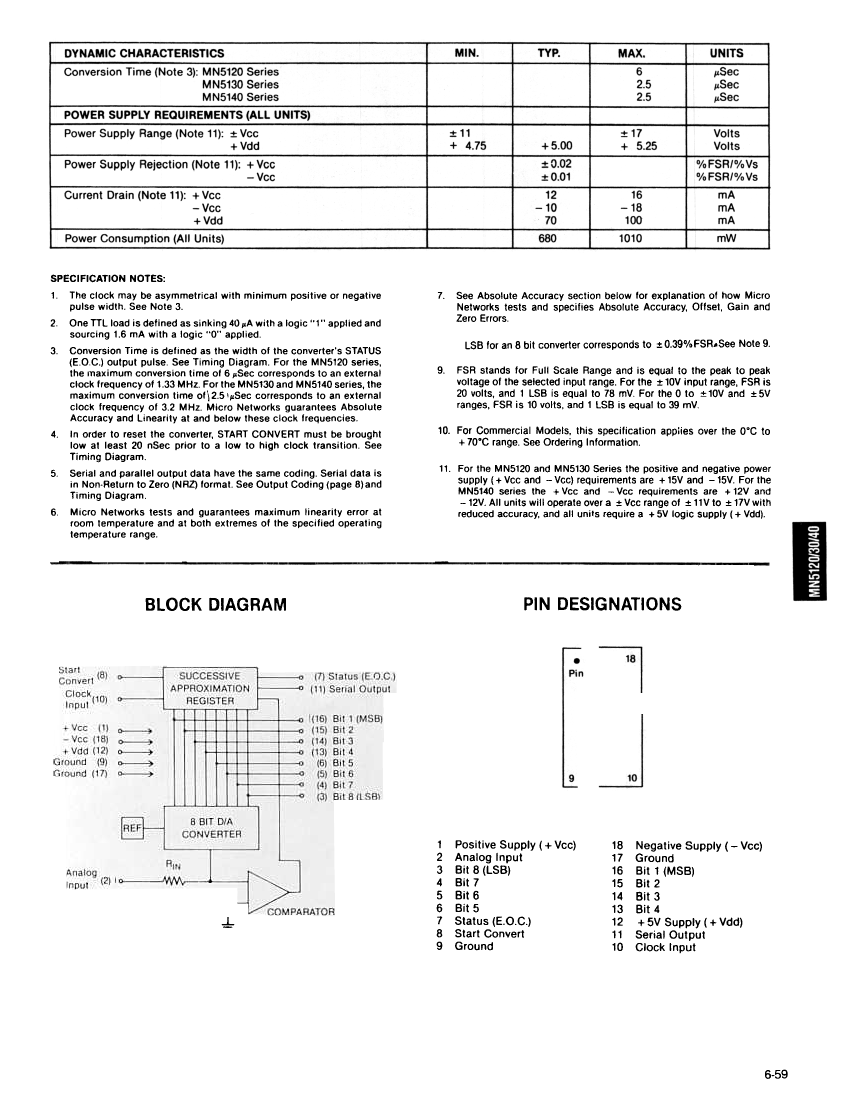

Maximum conversion time	2.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T18
length	25.4508 mm

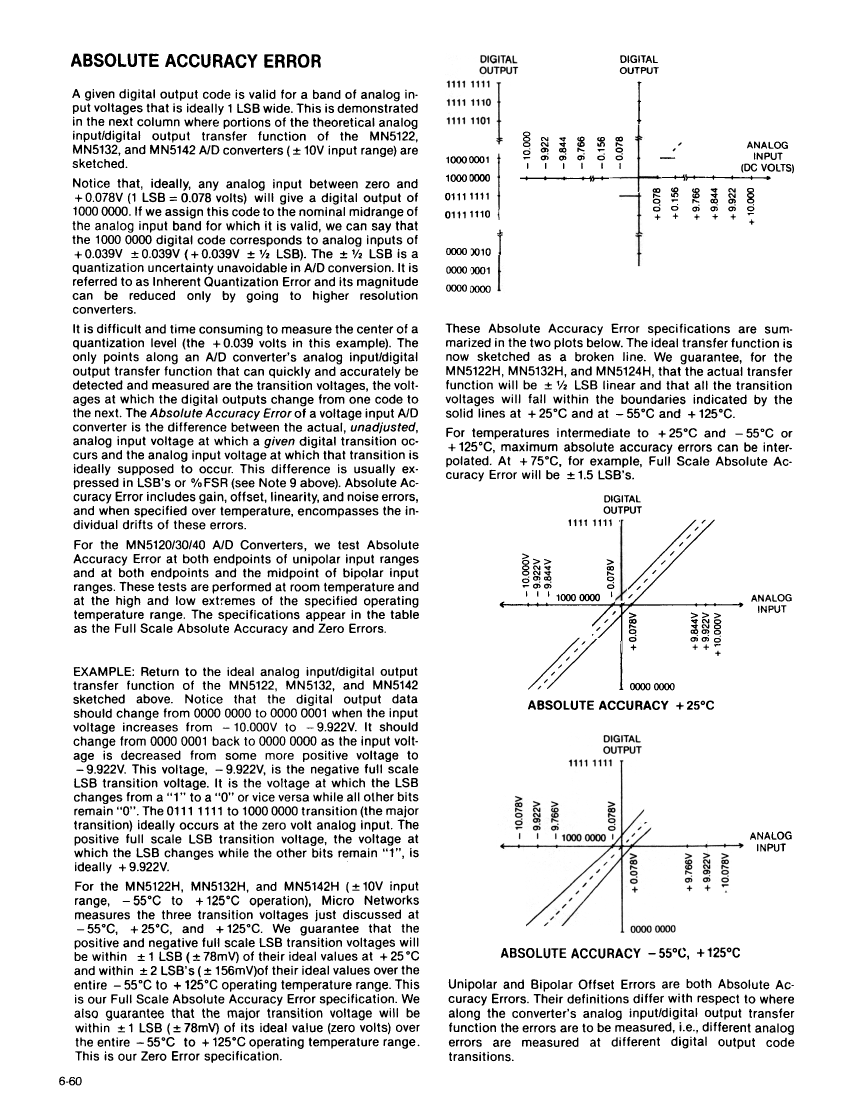

Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-12 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

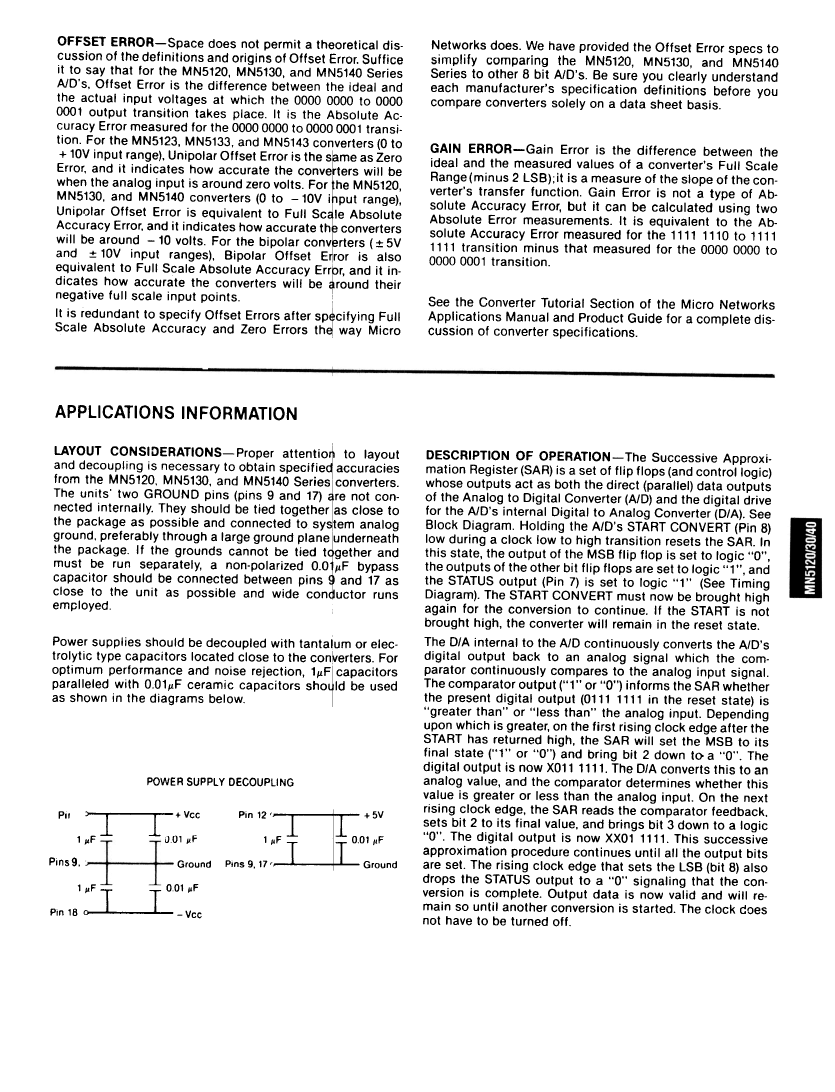

power supply	5,+-12 V
Certification status	Not Qualified
Maximum seat height	5.21 mm
Nominal supply voltage	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
