HN Male Connector Clamp/Solder Attachment For RG17, RG218
TECHNICAL DATA SHEET
HN Male Connector Clamp/Solder Attachment For RG17, RG218
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
HN Male
RG17,RG218
Clamp/Solder
Straight
PE4476
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
2.6 [66.04]
1.31 [33]
0.357 [161.93]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
HN Male
Silver
Brass, Nickel
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
HN Male Connector Clamp/Solder Attachment For RG17, RG218 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
HN Male Connector Clamp/Solder Attachment For RG17, RG218 PE4476
URL:
http://www.pasternack.com/hn-male-standard-rg17-rg218-connector-pe4476-p.aspx
PE4476 REV
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1. SLIDE CLAMP NUT (1) & GASKET (2) OVER CABLE.
STRIP CABLE AS SHOWN. DO NOT NICK BRAID
WHILE CUTTING JACKET. TAPER END OF BRAID
TO PERMIT ASSEMBLY OF BRAID CLAMP (3)
SLIDE BRAID CLAMP(3) OVER BRAID & SEAT
AGAINST JACKET.
2. FORM BRAID OVER CLAMP NUT (3). TRIM BRAID
BACK TO SHOULDER. CUT DIELECTRIC TO
DIMENSION SHOWN. DO NOT NICK CENTER
CONDUCTOR.
PE4476

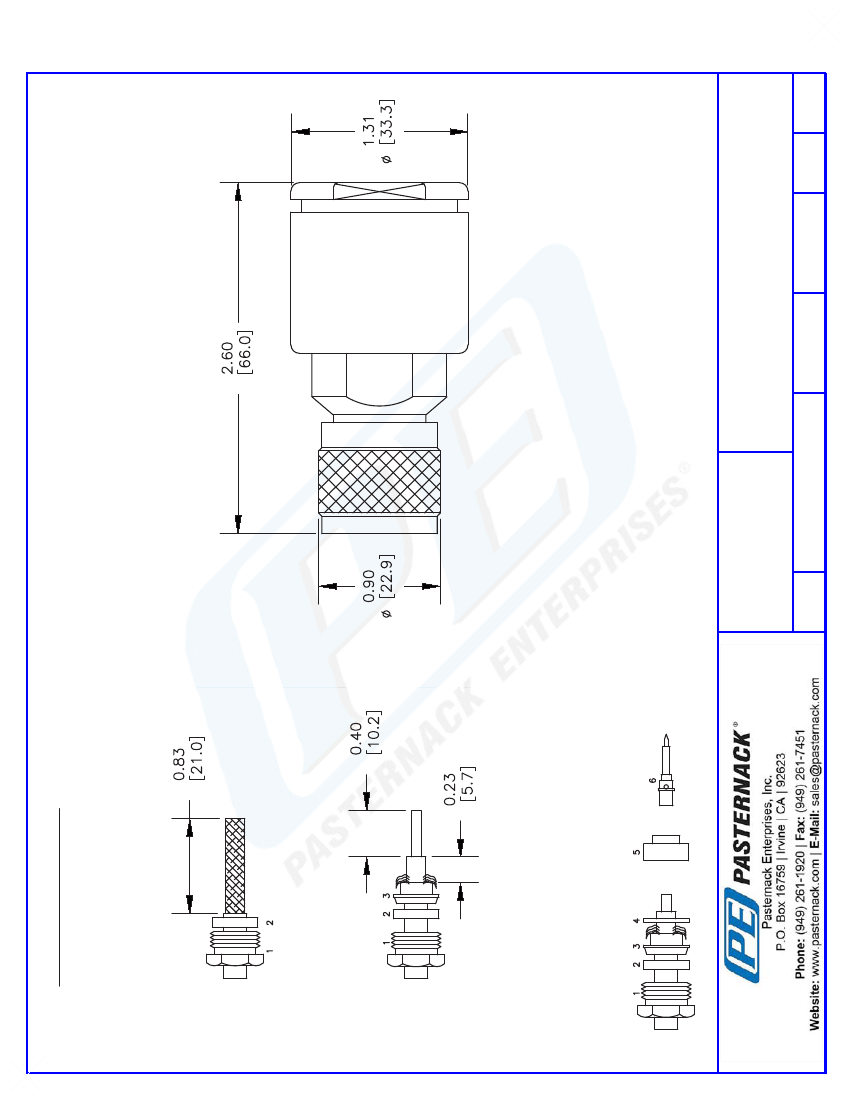

CAD Drawing
HN Male Connector Clamp/Solder Attachment For RG17, RG218
PE4476 REV
3. SLIDE WASHER (4) OVER DIELECTRIC AND SEAT
AGAINST BRAID. SLIDE PTFE (5) OVER
DIELECTRIC AND CENTER CONDUCTOR, SEAT
AGAINST WASHER. SOLDER CONTACT TO
CENTER CONDUCTOR. REMOVE EXCESS
SOLDER. DO NOT OVER HEAT DIELECTRIC.
INSERT CABLE ASSEMBLY INTO BODY &
TIGHTEN.
PE4476
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
080309
SCALE N/A
SIZE A
2233
2
