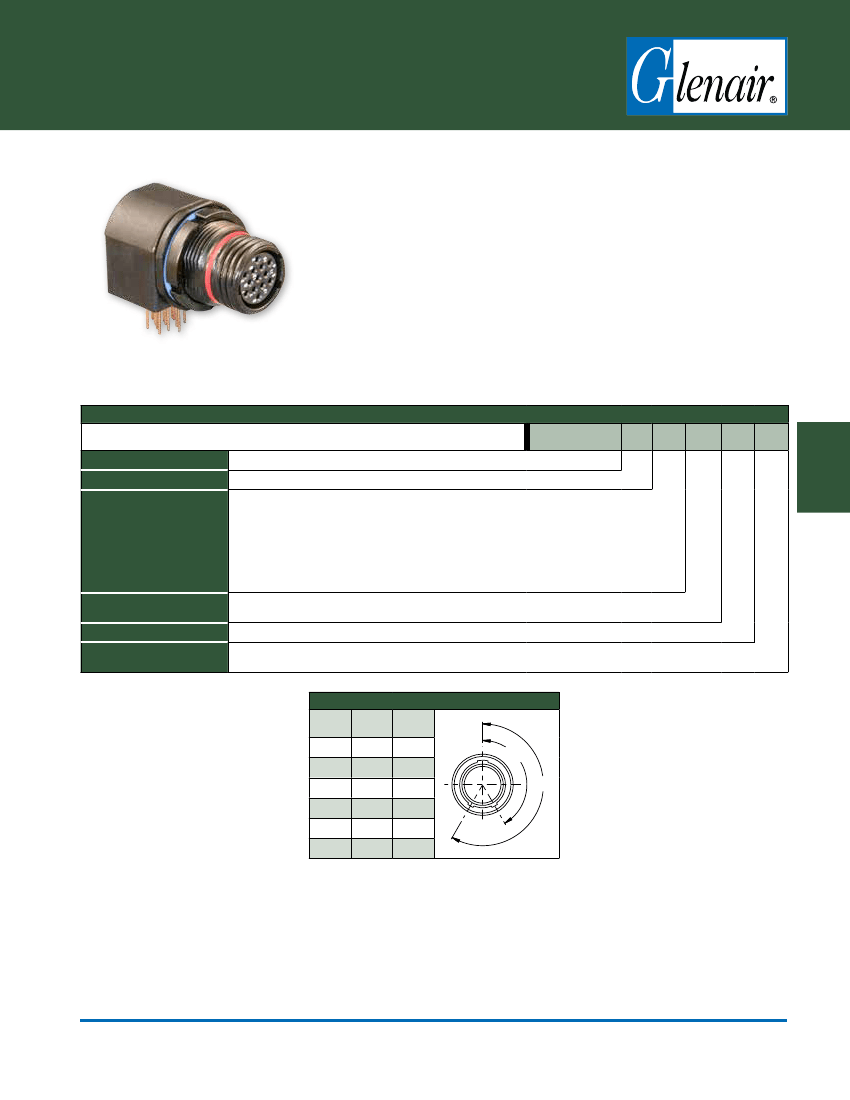

801-023: DescriptionMighty Mouse Double-Start ACME Thread; File Size203KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

801-023 Overview

Mighty Mouse Double-Start ACME Thread

Preview

Download Datasheet

View All

801-023 Ordering Information

Right Angle PCB Receptacle

connectors offer militar y grade

performance in a small, lightweight

package. These connectors are rated for

MIL-STD-810 Method 512 immersion.

High temperature thermoplastic

housing withstands soldering

temperatures. Stainless steel threaded

inserts simplify attachment to printed

circuit board.

Double-Start ACME Thread

Right Angle Contacts

High Temperature Housing

Threaded Inserts

Environmentally Sealed

How To Order

Sample Part Number

Series

Shell Style

801-023

= PCB Right Angle Receptacle

-07

= Jam Nut

= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant

= Aluminum / Electroless Nickel RoHS Compliant

= Aluminum / Nickel-PTFE RoHS Compliant

= Aluminum / Cadmium with Olive Drab Chromate

ZNU

= Aluminum / Zinc-Nickel with Black Chromate

= Stainless Steel / Passivated RoHS Compliant

5-3, 6-1, 6-23, 6-4, 6-6, 6-7, 7-1, 7-25, 7-10, 8-2, 8-28, 8-13, 9-4, 9-210, 9-19, 9-200, 10-2, 10-5, 10-201

= Pin

= Socket

= Pos. B

= Pos. C

= Pos. D

= Pos. F

801-023

-07

7-10

Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Shell Key Positions

(See Table I)

= Normal

Table I: Alternate Keyway Positions

A°

150°

75°

95°

140°

75°

95°

B°

210°

230°

275°

210°

A°

B°

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-23

E-Mail: sales@glenair.com

Series 801

Series 801 Mighty Mouse Double-Start ACME Thread

Right Angle PCB Receptacle
