SuperSeal™ Mighty Mouse Series 801 Receptacles
with Front and Rear Micro “AB” USB Receptacles
801-089 and 801-090 Ordering Information
MIghty Mouse
Micro USB
Inline
Receptacle
Square Flange
Receptacle
How To Order
Sample Part Number
Series (See Table I)
801-089
-02 MUSB
-M
A
801-089
= Shield Termination Porch
801-090
= Accessory Threads
01
= In Line Receptacle
02
= Square Flange Front or Rear Mount Receptacle
07
= Jam Nut Rear Mount Receptacle
NF
= Cadmium Olive Drab
M
= Electroless Nickel
MT
= Nickel PTFE
ZNU
= Black Zinc Nickel
A, B, C, D, E, F
Jam Nut
Receptacle
Shell Style
Shell Material
and Finish
Shell Key Positions
Equipped with Micro
AB USB Receptacles,
Front and Rear
These Receptacle Connectors Mate
with Glenair Plugs 801-082 and 801-083
1.060 (26.92) Max
.100 (2.54) Max
Panel Thickness
.430 (10.92) Max
.900 (22.86) Max
.430
(10.92)
Max
.060
(1.52)
Ø.445
(11.30)
.900 (22.86) Max
.430
(10.92)
Max
.060
(1.52)
Ø.445
(11.30)
.060
(1.52)
Ø.445

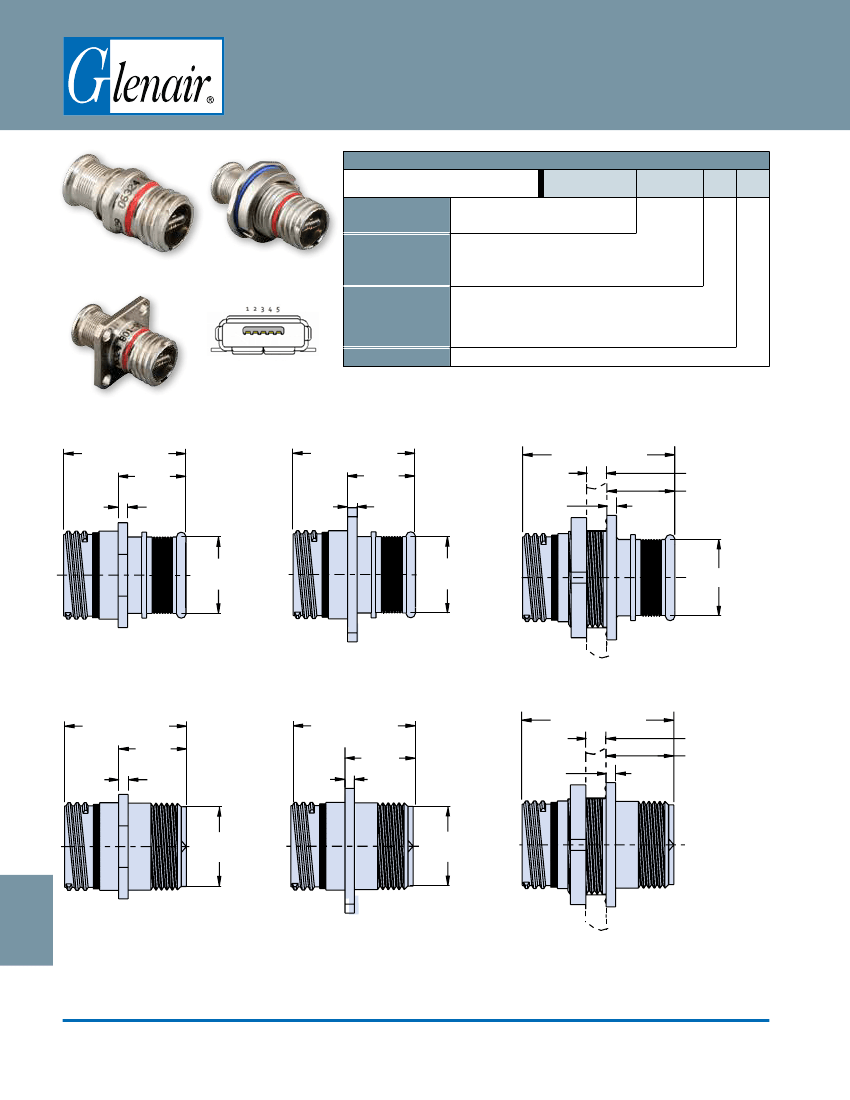

801-089-01 Inline
801-089-02 Square Flange
Front or Rear Mount
.900 (22.86) Max
.430
(10.92)
Max
.060
(1.52)
Ø.445
(11.30)
Ø.445
(11.30)
801-089-07 Jam Nut
Rear Mount
1.060 (26.92) Max
.100 (2.54) Max
Panel Thickness
.400(10.16)Max
.900 (22.86) Max
.430
(10.92)
Max
.060
(1.52)
.060
(1.52)
T
801-090-01 Inline
801-090-02 Square Flange
Front or Rear Mount
Series 80 Mighty Mouse
801-090-07 Jam Nut
Rear Mount
