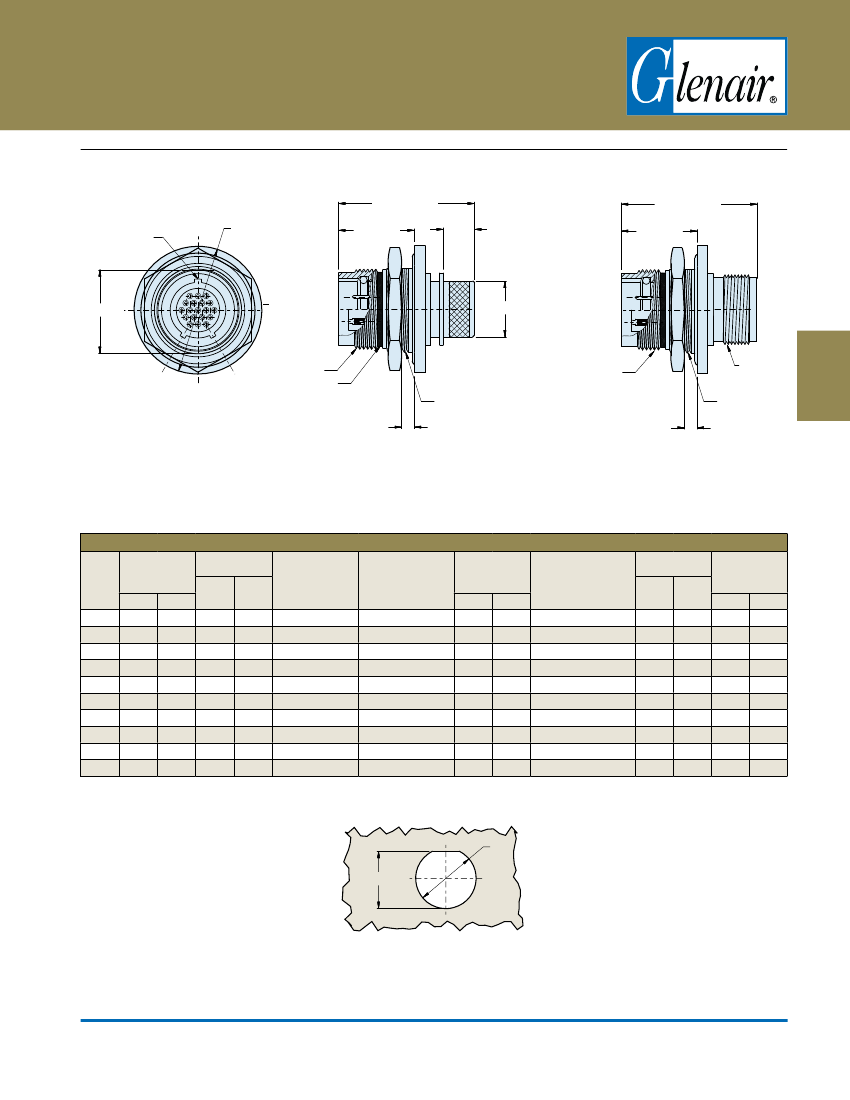

Series 802 “Aqua Mouse” Submersible

802-010-07 and 802-011-07 Dimensions

Jam nut, rear panel mount receptacle - shell style 07

ø A MAX

1.275 MAX

(32.40)

.705

(17.91)

.25

(6.35)

1.210 MAX

(30.73)

.705

(17.91)

MASTER

KEYWAY

3

B FLAT

øE

C THREAD

RED COLOR BAND

FULL MATE INDICATOR

C THREAD

D THREAD

.125 (3.18) MAX

PANEL THICKNESS

.125 (3.18) MAX

PANEL THICKNESS

RECEPTALE WITH

Accessory Thread

ACCESSORY THREAD

802-011

F

THREAD

D THREAD

RECEPTACLE

Band Platform

Integral

WITH

INTEGRAL BAND

802-010

PLATFORM

802-010

Dimensions

Shell

Size

5

6

7

8

9

10

12

14

15

21

A Max.

In.

.885

1.010

1.072

1.135

1.195

1.260

1.322

1.510

1.572

1.940

mm.

22.48

25.65

27.23

28.83

30.35

32.00

33.58

38.25

39.93

49.28

B Flat

In.

± .003

.466

.591

.653

.716

.778

.827

.890

1.077

1.140

1.464

mm.

±0.08

11.84

15.01

16.59

18.19

19.76

21.01

22.61

27.36

28.96

37.19

C

Mating Threads

.438-28 UNEF

.562-20 UN

.625-20 UN

.687-20 UN

.750-20 UNEF

.812-20 UNEF

.875-20 UNEF

1.062-20 UN

1.125-20 UN

1.4375-20 UN

D

Jam Nut Threads

.500-32 UN-2A

.625-28 UN-2A

.687-28 UN-2A

.750-28 UN-2A

.812-28 UN-2A

.875-28 UN-2A

.938-28 UN-2A

1.125-28 UN-2A

1.188-28 UN-2A

1.500-28 UN-2A

In.

.232

.312

.375

.438

.500

.562

.656

.812

.885

1.188

ØE

mm.

5.90

7.92

9.53

11.13

12.70

14.27

16.66

20.62

22.40

30.18

F

Accessory Threads

.2500-32 UNEF-2A

.3125-32 UNEF-2A

.4375-28 UNEF-2A

.5000-28 UNEF-2A

.5625-24 UNEF-2A

.6250-24 UNEF-2A

.6875-24 UNEF-2A

.8750-20 UNEF-2A

.9375-20 UNEF-2A

1.2500-20 UNEF-2A

G Flat

In.

mm.

± .003 ±0.08

.477

.602

.664

.727

.789

.838

.901

1.088

1.151

1.473

12.12

15.29

16.87

18.47

20.04

21.29

22.89

27.64

29.24

37.41

In.

.510

.635

.697

.760

.822

.885

.948

1.135

1.198

1.510

ØH

mm.

12.95

16.13

17.70

19.30

20.88

22.48

24.08

28.83

30.43

39.12

øH

G FLAT

RECOMMENDED PANEL CUTOUT

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

W-23

E-Mail: sales@glenair.com

Mighty Mouse

Fiber Optic

with #8 Contacts
