802-012-02 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 802-012-02

Preview

802-012-02: DescriptionSTAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-012-02 Overview

STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

802-012-02 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZED, MAX CONTACTS(SERIES)=85
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	802-012
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD; CABLE; PANEL
Options	WATERPROOF
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12; 14; 15
Termination type	SOLDER

Preview

Download Datasheet

View All

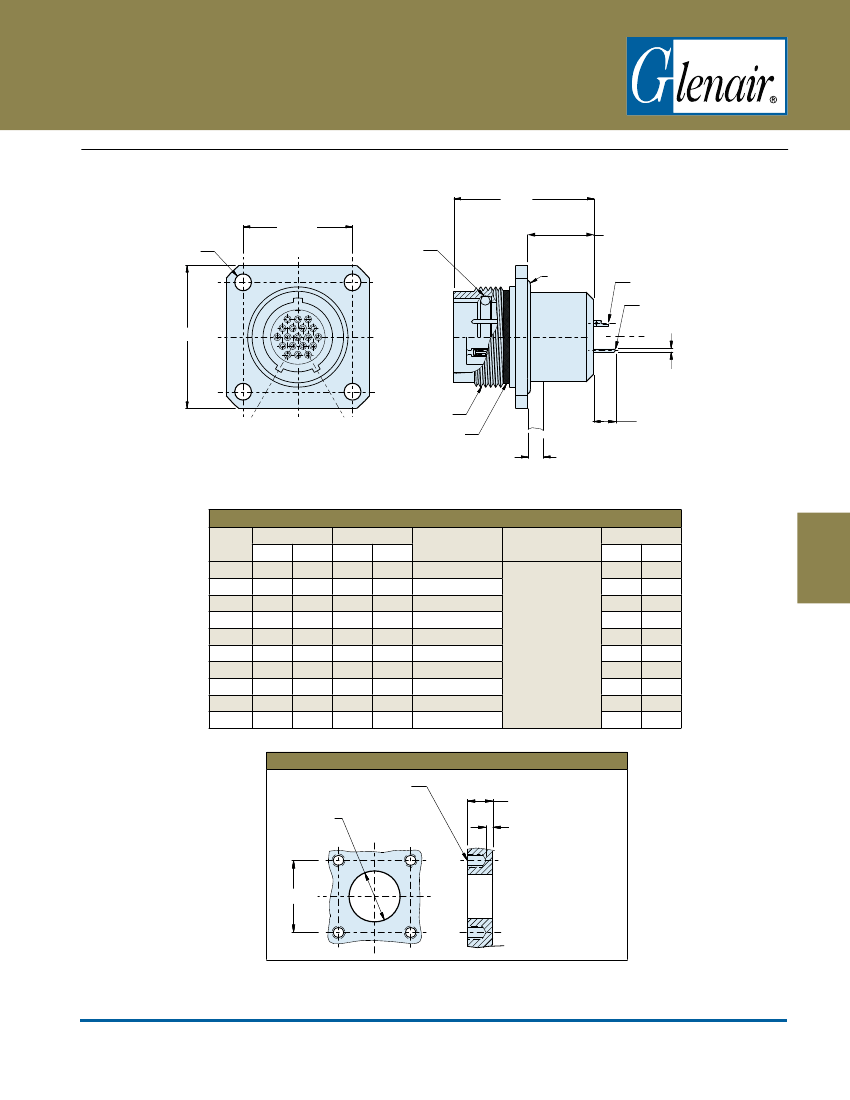

802-012-02 and 802-030-02 Dimensions

Square flange front panel mount receptacle - shell style 02

.940

(23.9)

THRU HOLES

4X

ø .125 (3.2)

B BSC

O RING

.395/.385

(10.03/9.78)

SOLDER CUP

PC TAIL

A SQ

ØD

C THREAD

RED COLOR BAND FULL

MATE INDICATOR

PANEL

.250 (6.35) MAX

.160 (4.06) MIN

.125 MIN

(3.18 MIN)

Dimensions

Shell

Size

5

6

7

8

9

10

12

14

15

21

A Square

In.

.885

1.010

1.072

1.135

1.195

1.260

1.323

1.510

1.573

1.750

mm.

22.48

25.65

27.23

28.83

30.35

32.00

33.60

38.25

39.95

44.45

In.

.500

.625

.688

.750

.812

.875

.938

1.125

1.188

1.375

B Bsc.

mm.

12.70

15.88

17.48

19.05

20.62

22.23

23.83

28.58

30.18

34.93

C

Mating Threads

.4375-28 UNEF

.5625-20 UN

.6250-20 UN

.6875-20 UN

.7500-20 UNEF

.8125-20 UNEF

.8750-20 UNEF

1.0625-20 UN

1.1250-20 UN

1.4375-20 UN

ØD

Tail Dia.

#23

.018/.022 (0.46/0.56)

#20

.024/.028 (0.61/0.71)

#16

.060/.064 (1.52/1.63)

#12

.092/.096 (2.34/2.44)

ØE

In.

.327

.390

.515

.577

.640

.702

.765

.953

1.015

1.312

mm.

8.31

9.91

13.08

14.66

16.26

17.83

19.43

24.21

25.78

33.32

Series 802 Sq Flange Panel Cutout

#4-40 UNC

4-BLIND HOLES

øE

.160 (4.06)

MIN - REF

.045 (1.14) MIN

B BSC

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-13

E-Mail: sales@glenair.com

Series 802

Series 802 AquaMouse™ Submersible

Solder Cup or PCB Receptacle

E
