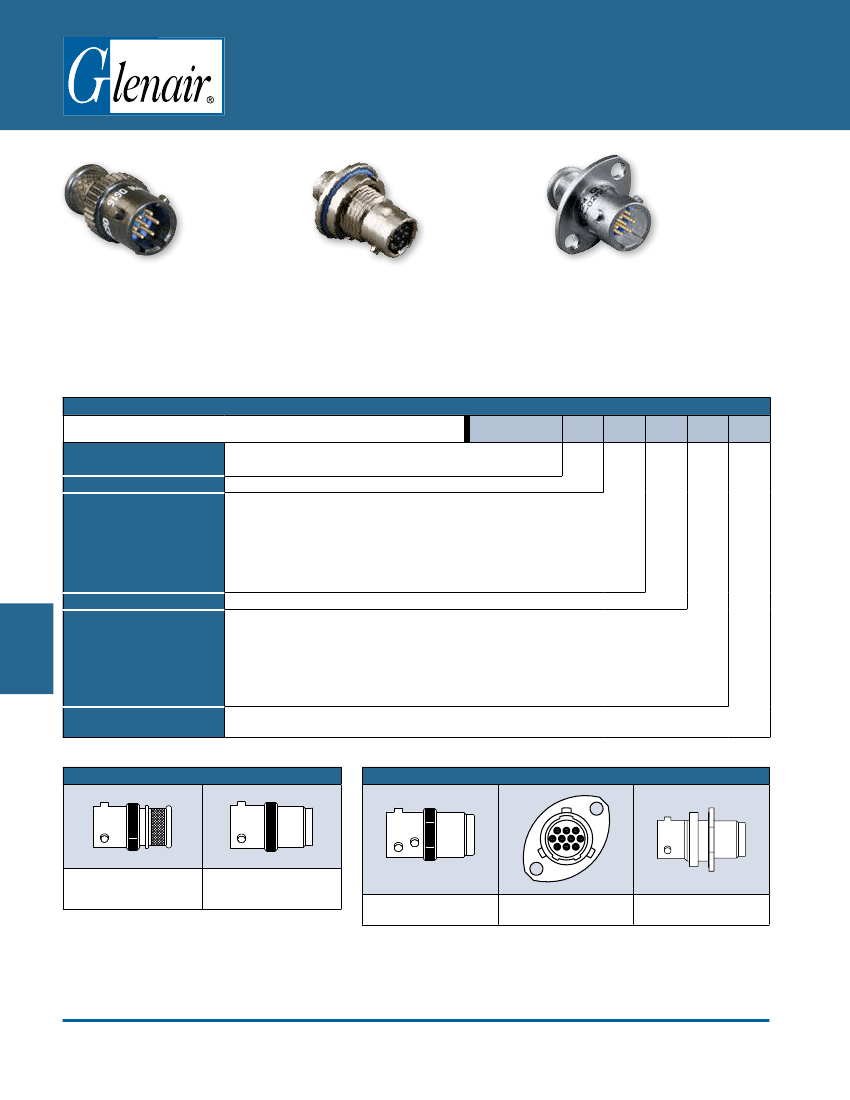

Series 803 Mighty Mouse
¼ Turn Bayonet Receptacle
803-003 and 803-004 Ordering Information
F
Series 803
In-Line
Push-To-Mate, ¼ Turn to Lock.
These
quick-mating connectors feature bayonet
pins on the receptacle. Simply push the
connectors together, then rotate the plug
coupling nut 90° to lock the connectors
together.
Jam Nut
Three Shell Mounting Options:
Jam nut with O-ring for rear panel
mounting, elliptical flange for front
or rear panel mounting, or in-line
receptacles for free-hanging cables.
Flange Mount
Two Shell Styles:
Choose the integral
band platform for direct attachment of
a cable shield. Install a heat-shrink boot,
or overmold directly onto the band
platform. An accessory thread is available
for attaching strain reliefs and backshells.
How To Order
Sample Part Number
Series (See Table I)
Shell Style (See Table II)
803-003
803-003
= Receptacle with Banding Platform
803-004
= Receptacle with Accessory Thread
-01
= In-Line
-02
= Flange Mount
-07
= Jam Nut
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
-07
NF
6-7
S
N
Shell Material and Finish
Shell Size - Insert Arrangement
See Contact Arrangements Page F-2
Connector supplied with contacts
P
= Pin
Contact Type
Connector supplied without contacts
A
= Pin Connector, less contacts
S
= Socket
B
= Socket Connector, less contacts
Connectors with contacts are supplied with signal and/or power crimp contacts. These contacts are not
installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
N
= Normal
X
= Pos. X
Y
= Pos. y
Z
= Pos. Z
Shell Key Positions
(See Table III)
Table I: Series
Table II: Shell Style
803-003
Plug with Banding Platform
803-004
Plug with Accessory Thread
-01
In-line
-02
Flange Mount
-07
Jam Nut
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-8
E-Mail: sales@glenair.com
