803-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 803-006

803-006: DescriptionSTAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size224KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

803-006 Overview

STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

803-006 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Other features	POLARIZED, MAX CONTACTS (SERIES)=85
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	803-006
Plug information	NO
Mixed contacts	NO
Installation type	BOARD; CABLE; PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12; 14; 15
Termination type	SOLDER

Preview

Download Datasheet

View All

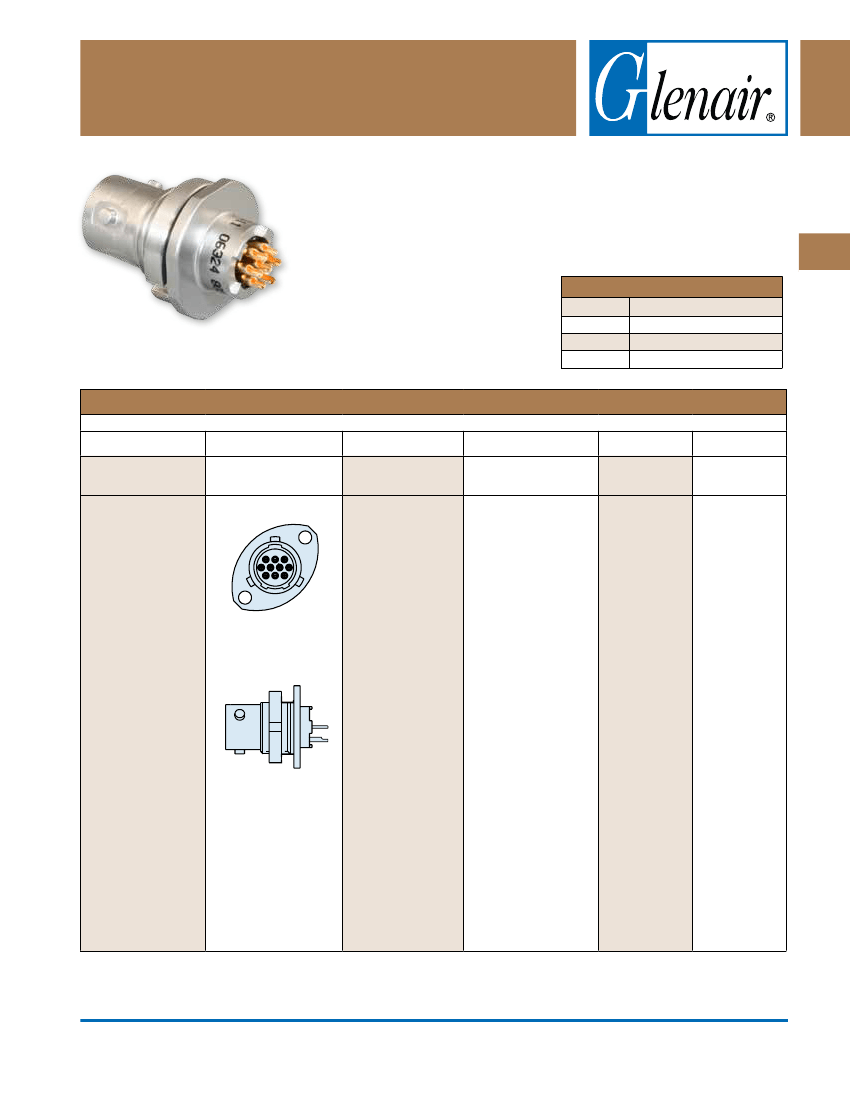

with ¼ Turn Bayonet Coupling

How to Order Information

Series 803 Hermetic Receptacles

feature 304L stainless steel shells,

fused vitreous glass insulators

and gold-plated Alloy 52 iron alloy

contacts.

1 X 10

-7

cc/second

maximum

Helium leak rate when tested at 1

atmosphere vacuum.

Solder Cup Contacts

accept up to

#22 AWG stranded wire. Or, choose

Printed Circuit Board Contacts

for

attachment to rigid boards or flexible

circuits.

HERMETIC LEAK RATE MOD CODES

Designator

–585A

–585B

–585C

Required Leak Rate

1 x 10

-10

cc Helium per second

1 x 10

-9

cc Helium per second

1 x 10

-8

cc Helium per second

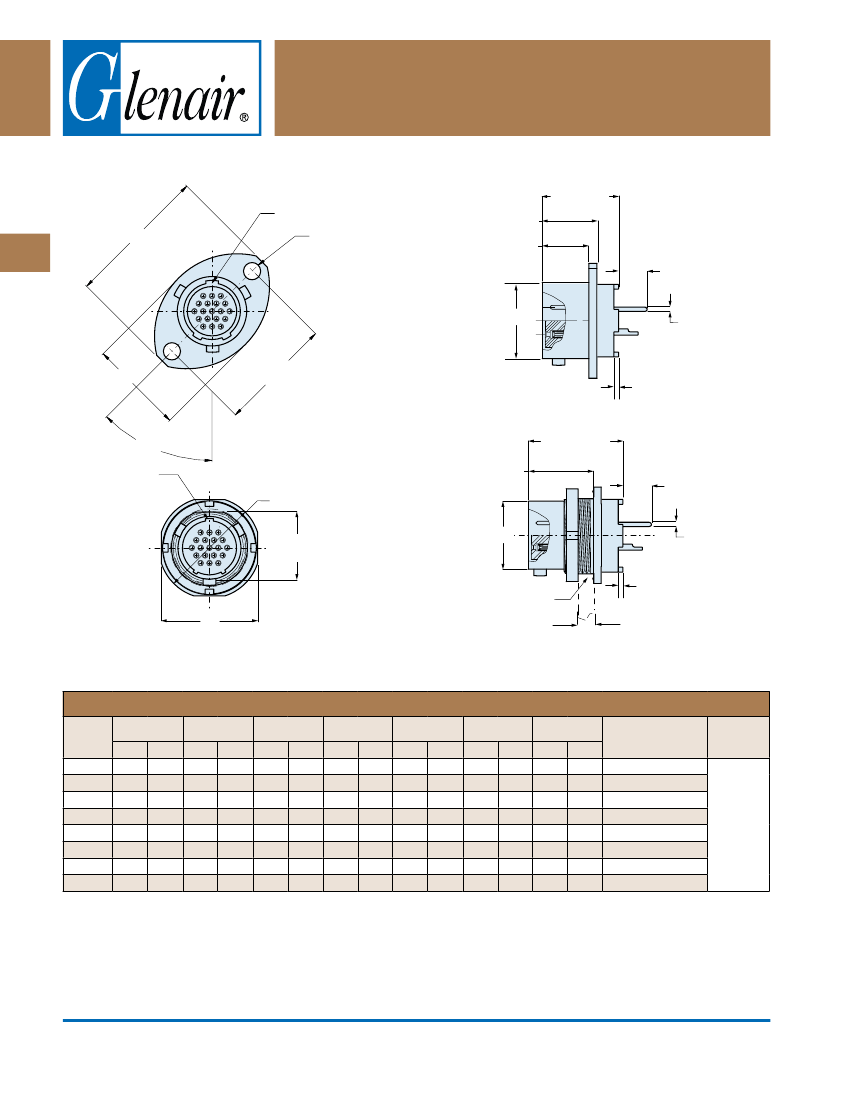

Series 803 Hermetic

Jam Nut Mount

Two Shell Styles

are available:

Jam Nut and Flange Mount.

HOW TO ORDER

803-006

Series

Hermetic

Receptacles with

Printed Circuit

Board Contacts or

Solder Cup Contacts

-07

Shell Style

Sample Part Number

Shell Material /

Finish

Stainless Steel /

Passivated

9-19

Contact Type

Pin, Solder Cup

Shell Size/Insert

See Page C-4 for

Contact Arrangements

Shell Key

Position

Normal

Alternate Key

Positions:

803-006

Stainless Steel/

Nickel Plated

-02

Flange Mount

*Titanium and

Inconel

shell

materials are

available. Consult

factory for ordering

information.

Pin, PC Tail

Socket,

Solder Cup

Sockets,

PC Tail

Jam Nut

-07

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-67

E-Mail: sales@glenair.com

Series 80

Mighty Mouse

803-006

Series 803 Mighty Mouse Hermetic Receptacles
