FR2G-T3: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size2MB，4 Pages; ManufacturerSurge Components; Websitehttp://www.surgecomponents.com/

Download Datasheet Parametric Compare View All

FR2G-T3 Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

FR2G-T3 Parametric

Parameter Name	Attribute value
Maker	Surge Components
package instruction	SMB, 2 PIN
Reach Compliance Code	compliant
Other features	LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.15 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

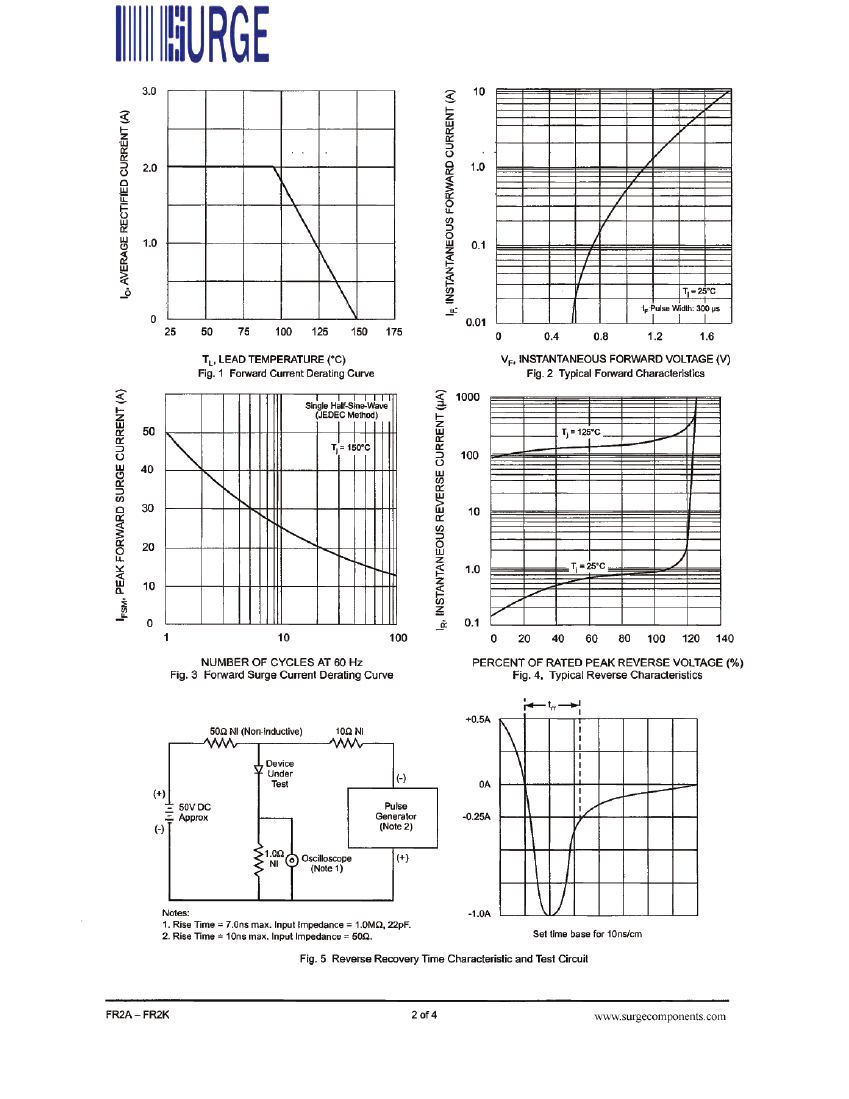

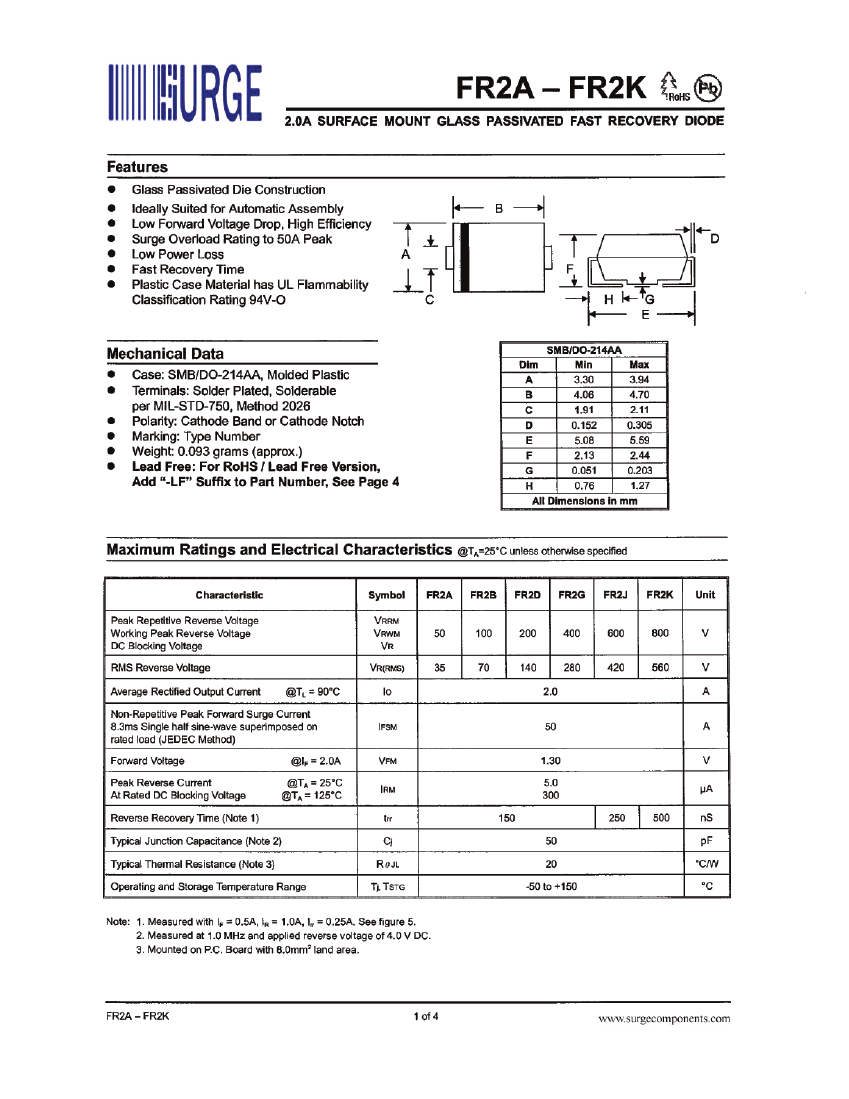

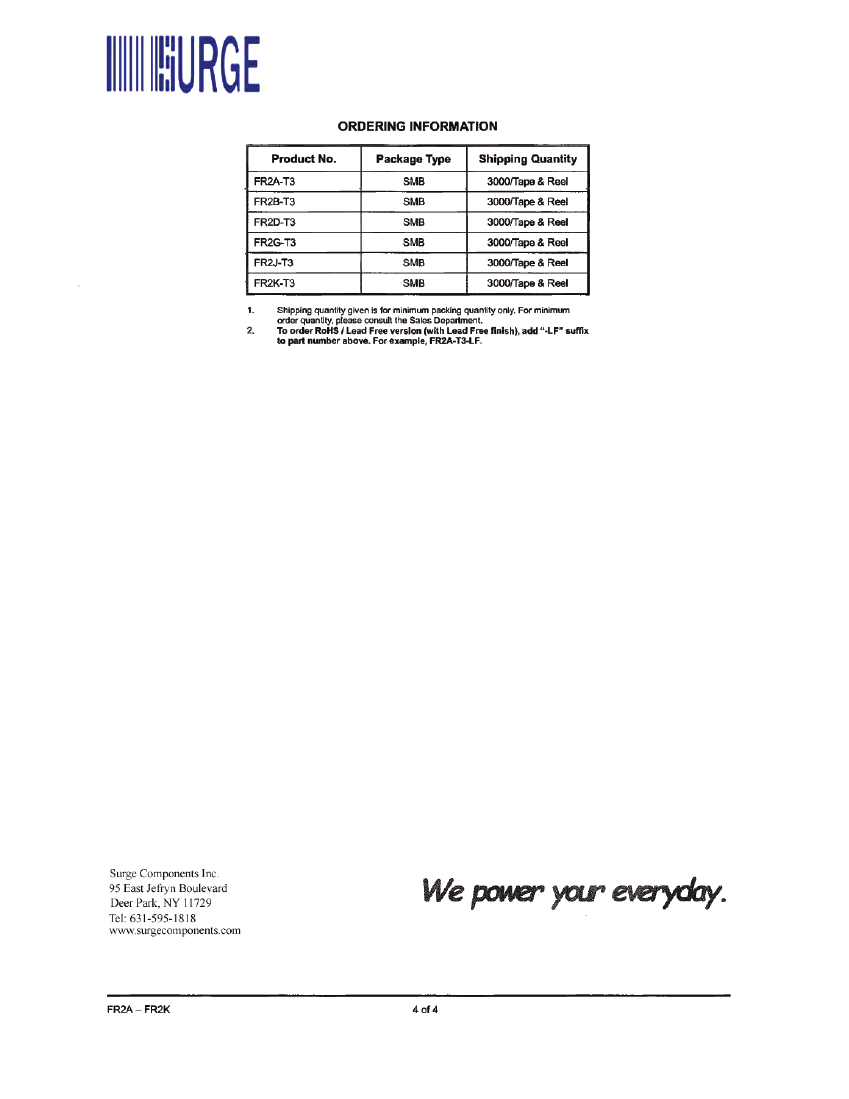

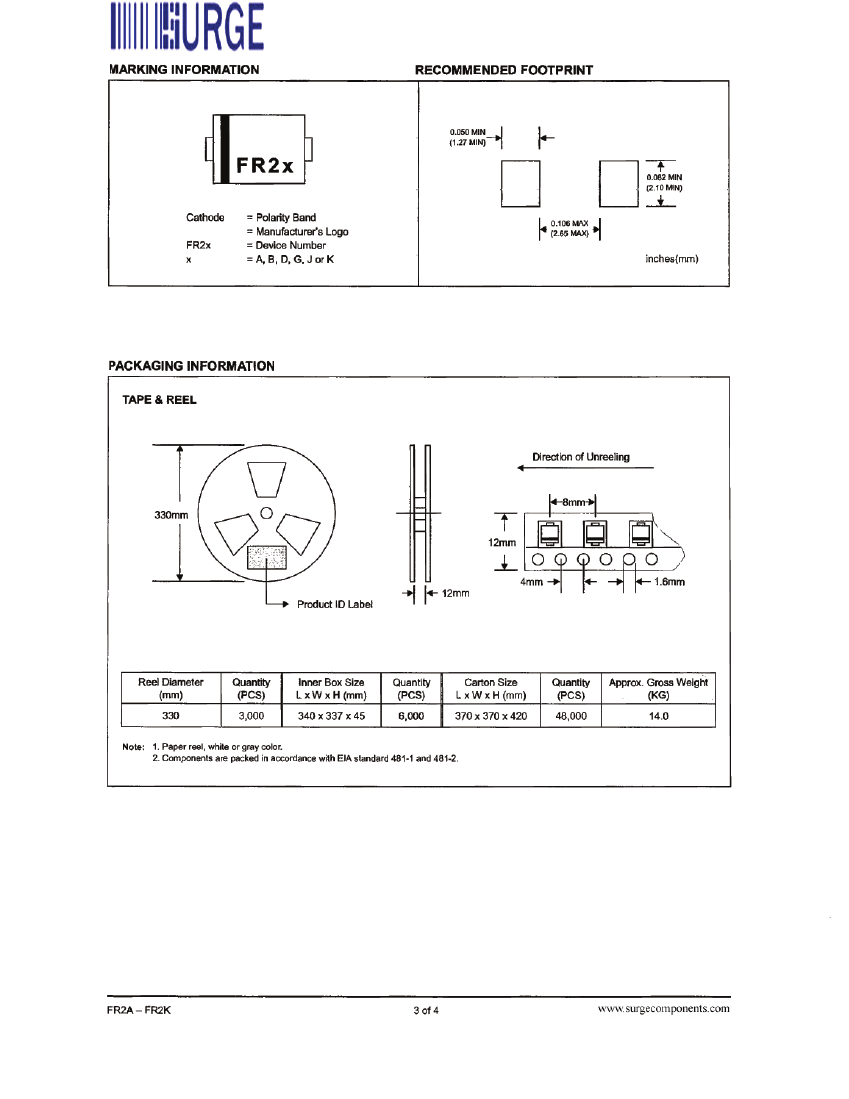

Preview

Download Datasheet

View All

FR2G-T3 Related Products

	FR2G-T3	FR2D-T3-LF	FR2D-T3	FR2J-T3-LF	FR2K-T3-LF	FR2G-T3-LF	FR2A-T3	FR2K-T3	FR2J-T3	FR2B-T3
Description	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
package instruction	SMB, 2 PIN	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	400 V	200 V	200 V	600 V	800 V	400 V	50 V	800 V	600 V	100 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.25 µs	0.5 µs	0.15 µs	0.15 µs	0.5 µs	0.25 µs	0.15 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Surge Components	-	-	Surge Components	Surge Components	Surge Components	Surge Components	Surge Components	Surge Components	Surge Components
